MiLAN MIL-SM801P Specifications

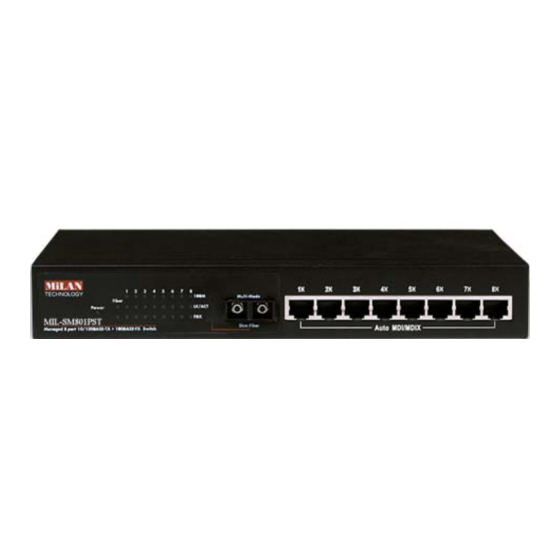

MIL-SM801P
Managed 9-port Switches with Fixed Fiber Port
MiLAN's MIL-SM801 series of layer 2 managed switches provides high
performance non-blocking switching. The switch has 8 10/100 auto-
MDIXMDIX ports and one fixed 100Mbps fiber port. The fiber port provides
connectors of SC,ST, MT-RJ and VF-45 with five different ordering options
of single mode and multi-mode.
MIL-SM801 series of switches management features include port based,
dynamic and static VLANs, GVRP, VLAN tagging, IGMP Snooping, port
mirroring, port security. Security includes static addressing, filtering and
blocking of packets to identified MAC addresses. Two priority queues per
port insure minimum delay for voice over IP or multimedia network data.
Console port provides local management while Telnet and Web-based
management is provided via any network device.
Non-blocking 1.8Gbps architecture assures rapid packet delivery while 8,000
MAC address table provides swift lookup and packet forwarding.
Other ASIC features that enhance performance are included such as 802.1d
spanning tree, 802.3x flow control, 802.1ad link aggregation and broadcast
storm control.
Print Servers 802.11b Wireless
Non-blocking architecture
IEEE802.1q VLAN tagging
IEEE802.1p Class of service
Auto MDI-MDIX
IGMP/GVRP
Port Mirroring
8K Mac Address
Telnet/ Web-Based management
TFTP Firmware Upgrade
100Mb fiber Port
Media Converters
Switches
*
Transceivers
MiLAN Technology
1329 Moffett Park Drive
Sunnyvale, CA 94089
1-800-466-4526
www.milan.com
