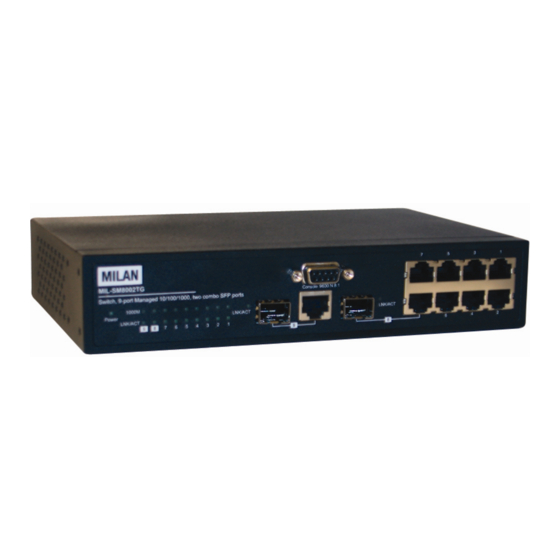

- Page 1 MIL-SM8002TG 9 Port 10/100/1000BASE-T Two Combo 1000BASE-X SFP Ports Advanced Managed Switch Quick Installation Guide Rev.A 09-MAY2006...
-
Page 2: Table Of Contents
Content Introduction... 1 Package Contents ...1 Hardware Description... 2 Physical Dimension ...2 Desktop Installation ...2 Power On...2 Initial Setup ... 3 Login in the Console Interface ...3 IP/Subnet/Gateway Setup ...4... -
Page 3: Package Contents
Introduction The product is a multi-port switch that can be used to build high-performance switched indoor or protected outdoor networks. It provides wire-speed, Gigabit Ethernet switching function that allows high-performance, low-cost connection. The Switch features a store-and-forward switching and it can automatically learn and store source address in an 8K-entry MAC address table. -
Page 4: Hardware Description
Power On Connect the power cord to the power socket on the rear panel of the Switch. The other side of power cord connects to the power outlet. The internal power works with AC in the voltage range 90-240VAC, frequency 50~60Hz. -
Page 5: Initial Setup
Use serial cable provided in the package to pre-configure the IP settings. When the connection between Switch and PC is ready, turn on the PC and run a terminal emulation program or Hyper Terminal and configure its communication parameters to match the... -
Page 6: Ip/Subnet/Gateway Setup
Please see below figure for login screen. Console login interface IP/Subnet/Gateway Setup MIL-SM8002TG is shipped with a default IP of 192.168.1.77. In order to set up a customer specific IP/Subnet/Gateway Use Main menu – Type: “menu” – Select System Configuration – IP Configuration In the IP configuration window please choose the following: 1. - Page 7 IP address from the local DHCP server. 2. IP Address: assign the switch IP address. The default IP is 192.168.16.1. 3. Subnet Mask: assign the switch IP subnet mask. 4. Gateway: assign the switch gateway. The default value is 192.168.16.254.
