Summary of Contents for Nady Systems MRX-16

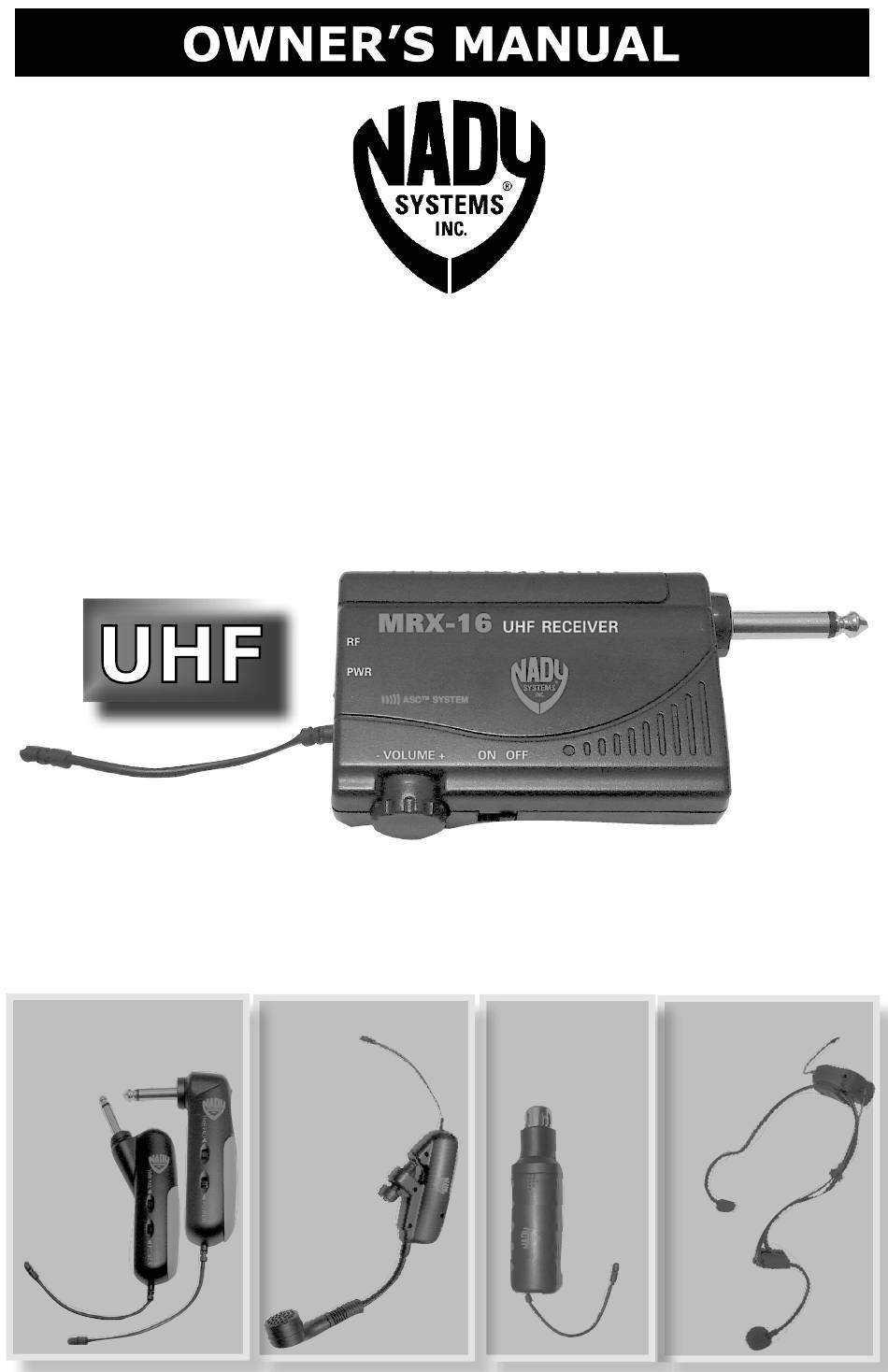

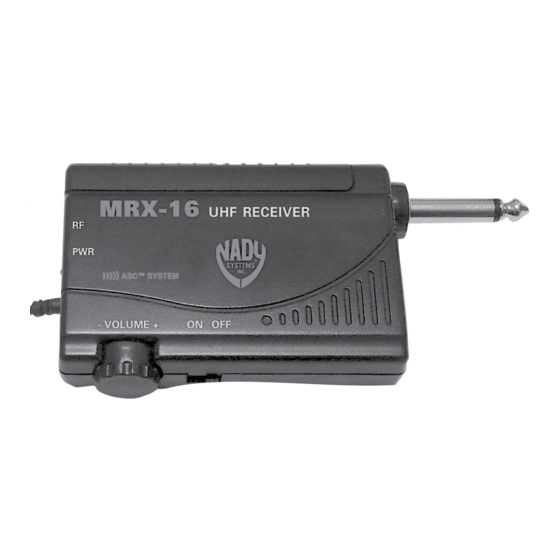

- Page 1 16-CHANNEL MICRO WIRELESS SYSTEM MRX-16 RECEIVER Instructions for use with any of these transmitters micro micro micro micro WHM-16 SYSTEM LINK-16 SYSTEM MHT-16 SYSTEM MGT-16 SYSTEM WH-16 MH-16 LK-16 MT-16A MT-16R...
-
Page 2: Table Of Contents
This booklet provides information regarding the use of the microMGT-16, microMHT-16, microLINK-16 or microWHM-16 Wireless System with the MRX-16 receiver and one of the following transmitters: MT-16A/R, MH-16, LK-16 or WH-16. It includes a description of features and a step-by-step guide to operation of the particular system you have purchased. -
Page 3: System Features
(Auto Sync Channel) infared wireless download pairs transmitters to selected receiver frequency for quick, easy setup • Battery operated receiver and transmitters MRX-16 Instrument Receiver • Compact, portable, “pocket size” receiver • Flexible wire ¼ wave antenna • Unbalanced ¼” line output plug •... -
Page 4: Quick User Controls/Connections Guide
Quick User Controls/Connections Guide MRX-16 Receiver DIPSWITCH EXPLODED VIEW... - Page 5 9. CHANNEL SELECT DIP-SWITCH Select one of 16 pre-set channels per MRX-16 DIP-Switch Frequency Selection Chart (see page 16) 10. VOLUME CONTROL Adjusts the audio output level—at maximum setting the gain will be about +4dB over a direct instrument-to-cord-to- amp connection 11.
-
Page 6: Mt-16A/R Instrument Transmitter
25. BATTERY Single AAA alkaline or NiMH battery required for operation 26. BATTERY COMPARTMENT COVER Slide to open IR Sync Download of Selected Frequency of MRX-16 Receiver to micro MT-16A/R, micro MH-16, micro LK-16 or micro WH-16 Transmitter (1) ASC IR SYNC INFRARED LED WINDOW ™... -
Page 7: Horn Instrument Transmitter
Quick microMHT-16 User Controls/Connections Guide MH-16 Saxophone (Horn) Instrument Transmitter 28. BATTERY COMPARTMENT COVER To cover AAA battery, slide to open 29. BATTERY Single AAA alkaline or NiMH battery required for operation 30. BATTERY COMPARTMENT Insert one AAA battery, observing correct polarity 31. -
Page 8: Snap-On Transmitter
QUICK microLINK-16 SYSTEM USER CONTROLS/CONNECTIONS GUIDE LK-16 Snap-On Transmitter 39. XLR LOCKING CLIP To lock the hardwired microphone securely 40. POWER SWITCH Slide in arrow direction to power transmitter On 41. BATTERY COMPARTMENT COVER To cover AAA battery, slide to open 42. -
Page 9: Head-Worn Transmitter
QUICK microWHM-16 USER CONTROLS/CONNECTORS GUIDE WH-16 Head-Worn Transmitter 48. POWER SWITCH Slide in arrow direction to power transmitter On 49. POWER & LOW BATTERY LED Flashes once at power up, continuous flashing indicates battery needs replacement 50. BATTERY COMPARTMENT Insert one AAA battery, observing correct polarity 51. -
Page 10: System Operation
(9) are used for selecting one of 16 Antenna preset frequencies. Simply position the The MRX-16 receiver is supplied with an attached DIP switches to a desired open channel Antenna (5). It should be extended fully to on the receiver. There should be no obtain maximum range. - Page 11 Note: The IR link is infrared light and works best when this data transfer is Your MRX-16 receiver is now operational accomplished in a light-shielded or darker and ready to use. Once you have environment. It may not be successful completed the above steps, proceed to the in a brightly lit area.
-
Page 12: Mt-16A/R, Mh-16, Lk-16, Wh-16 Transmitters
SYSTEM OPERATION MT-16A/R, MH-16, LK-16, or WH-16 Transmitter Note: The transmitter referred to below is The transmitters (MT-16A/R, MH-16 only) one of the following: MT-16A/R, MH-16, have a 15dB Pad (18) switch which can LK-16 or WH-16, as provided with your be selected to attenuate high output from system. - Page 13 IR Sync Window (12) on the receiver (see for unity gain (one-to- one) with a hard- Selecting the MRX-16 Receiver wired cord. Or, (MT-16A/R, MH-16 only) Channel and IR Sync on page 10). select up to an added 4-5dB boost by...
-
Page 14: Miscellaneous Tips
Miscellaneous Tips • The receiver antennas should be kept away from any metal surfaces whenever possible as they can reflect away or shield the incoming RF signal. • When inserting batteries, make sure they are inserted with the correct polarity. •... -
Page 15: Cautions And Troubleshooting
RF channel. Make sure that the Power Switch (11) on the MRX-16 receiver is not in the second position (audio muted/attenuated). The receiver’s Audio Output (4) is adjustable, so make sure the Volume Control (10) is set properly. -
Page 16: Mrx-16 System Dip-Switch Frequency Selection Chart
MRX-16 DIP-Switch Frequency Selection Chart Frequency Plan: 902.4MHz-923.7MHz (16 Channels) U.S. -
Page 17: Specifications
SPECIFICATIONS MRX-16 System Frequency Response 50Hz–16kHz (-3dB) Dynamic Range 120dB Oscillating System Phase Lock Loop (PLL) Total Harmonic Distortion (THD) <0.8% RF Carrier Frequency Range 902.40MHz–923.70MHz Modulation FM (F3E), +/-30KHz normal Operating Range Up to 250 feet (typical, depending on site conditions) -
Page 18: Servicing
If unit is within the One Year Warranty from purchase, please check Warranty terms for further instruction before sending in unit. Nady Systems will not repair nor be held responsible for any units sent without proper identification and return address or RA number clearly marked on the package. - Page 19 This warranty does not cover finish or appearance items nor items damaged in shipment en route to Nady Systems, Inc. for repair. You must include proof of date and place of purchase (i.e., photocopy of your bill of sale) or we cannot be responsible for repairs or replacement.
- Page 20 www.nady.com 6701 Shellmound Street | Emeryville, CA USA 94608 T 510.652.2411 | F 510.652.5075...
