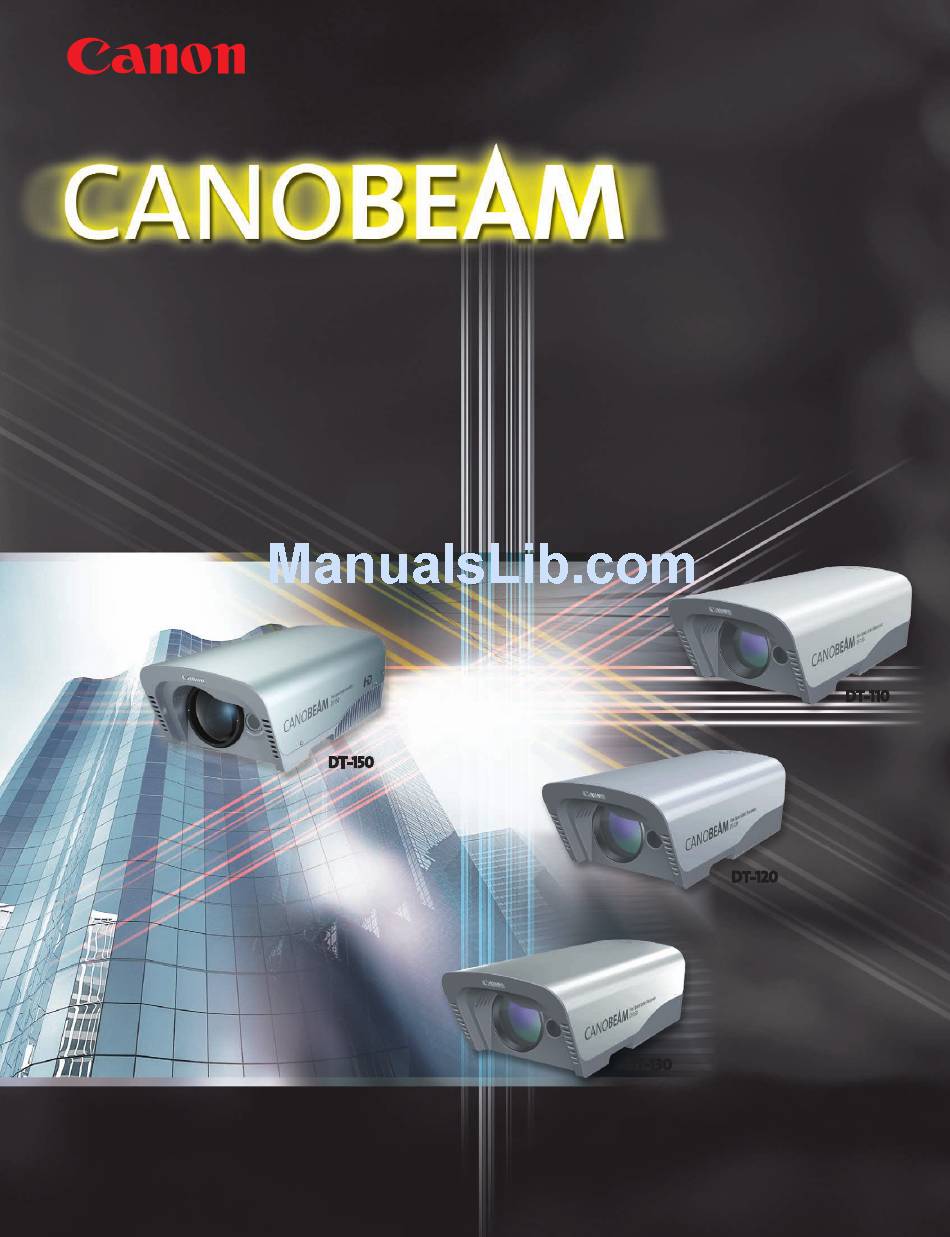

- Page 1 FREE SPACE OPTICS DT-100 Series Complete Laser FSO Solutions for Low-Cost, High-Security, High-Speed Data Transmission Networks DT-110 DT-150 DT-120 DT-130...
- Page 2 All of the models within the Canobeam DT-100 series employ Canon's evolving and we believe, essential Automatic Tracking Function that maintains beam alignment, compensating for changes in the building due to temperature variations and vibration due to wind and other factors.
- Page 3 2km*.(in case of DT-120) controls the laser axis appropriately. * For DT-130 and DT-150, the standard distance is up to 1 km. For DT-110, the standard distance is up to 0.5 km Longer transmission can be achieved but this is a function of weather conditions and acceptable link availability.
-
Page 4: Specifications
FTP protocol for Jan 28 2007 10:05:03 problem analysis. Jan 28 2007 10:06:03 Specifications DT-100 Series DT-110 Type SFP DT-120 Type SFP DT-130 Type SFP DT-150 Applications SDH/ATM/FDDI/Fast Ethernet Gigabit Ethernet HD-SDI/SD-SDI/DVB-ASI Standard Transmission Distance 20 500m 100 2000m 20 1000m 20 1000m 1.485Gbps... - Page 5 CANOBEAM units are located with a direct line of sight. However, some units to relay the signal. With the DT-130 and DT-150, the relay glass windows scatter and attenuate the amount of laser light.
- Page 6 2. T.S. Chu and D.C. Hogg, Effects of precipitation on propagation at 0.63, 3.5, and 10.6 Microns, Bell Syst. Tech. J., 47, pp. 723-759, 1968. 3. All distances expressed in meters. Above values are different from Canon recommended transmission distances described in specifications. Dimensions DT-110/120/130/150 486.2...
