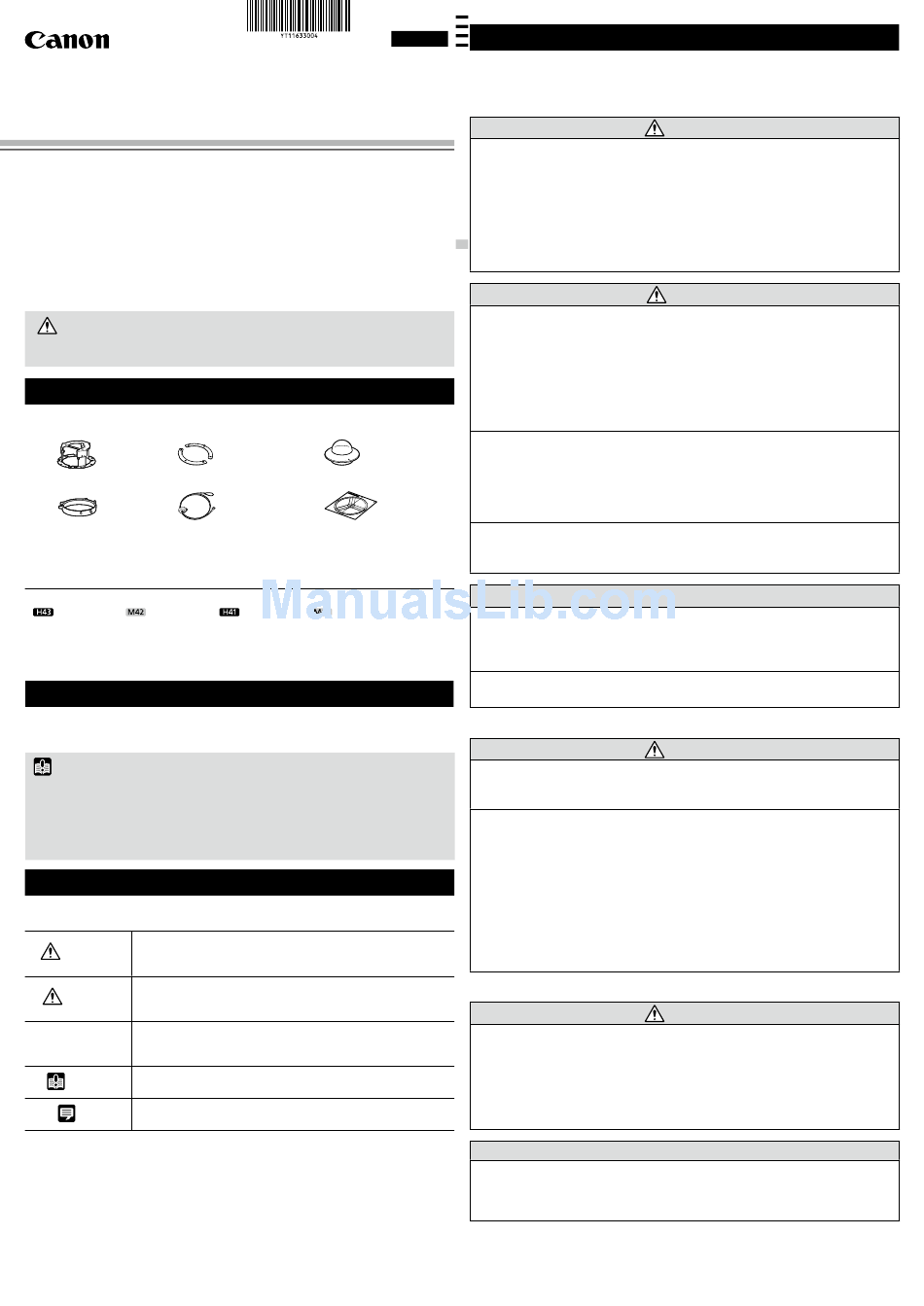

Indoor Dome Housing
DR41-C-VB/DR41-S-VB Installation Guide
Indoor Dome Housing DR41-C-VB/DR41-S-VB is a separately sold product for exclusive use with
VB-H43/VB-M42/VB-H41/VB-M40. This allows installation of the camera recessed into the ceiling.
This Installation Guide describes the installation method using Indoor Dome Housing. Be sure to
read the "Safety Precautions" section for correct use. After reading this Installation Guide, keep it
in a readily accessible location for future reference.
In addition to this Installation Guide, also read the "Installation Guide" included with the camera
and "Operation Guide" (included in the Setup CD-ROM).
* For the latest information (firmware and included software, user manuals, operating
environment, etc.), please refer to the Canon Web Site.
* Some cameras are not sold in some countries or regions.
Caution
Request a professional installer for all camera installation work.
Never try to install the camera yourself. Doing so may result in
unforeseen accidents such as dropping the camera or electric shock.
Check Included Items
This product comes with the following items. If any item is missing, contact the dealer where you
purchased the product.
1. Ceiling bracket x1
2. Backside ceiling bracket x2
4. Dust cover x1
5. Safety wire x1
7. Fixing screws (M3) x7
9. Dome fixing screw (M2) x1
Symbols Indicating Camera Model
Camera specific functions will be listed using the icons below.
: VB-H43
: VB-M42
© CANON INC. 2014
Using the Indoor Dome Housing
When using the indoor dome housing, it is recommended you use it with the VB-H43B/VB-M42B/
VB-H41B/VB-M40B (black model) to reduce the camera's visibility and reflection.
Important
• If using the dome housing, care must be taken when installing the camera since the dome may blur the
video, or the body of the dome may be visible, when the camera lens approaches the horizontal (less
than 15°).
• The angle of view is slightly wider when using the dome housing.
• Grime on the dome may reduce image quality. Periodic cleaning is recommended. Use a soft cloth
moistened with water or diluted neutral detergent to wipe away grime, then wipe dry.
Symbols Indicating Safety Precautions
This Installation Guide uses the following marks to indicate the important information
the user should know in order to use the product safely. Be sure to observe these items.
Inappropriate handling against the instruction accompanied
Warning
by this sign may result in death or serious injury. Be sure to
observe these warnings to ensure safety.
Inappropriate handling against the instruction accompanied
Caution
by this sign may result in injury. Be sure to observe these
precautions to ensure safety.
Inappropriate handling against the instruction accompanied
Caution
by this sign may result in property damage. Be sure to observe
these precautions.
This symbol indicates important or restricted items. Be sure to
Important
read this section.
Contains reference information for operation or additional
Note
explanations.
The contents of this guide are subject to change without any prior notice.
YT1-1633-004
ENGLISH
3. Dome x1
6. Template x1
8. Ceiling bracket screws (M4) x3
10. Installation Guide (this document) x1
: VB-H41
: VB-M40
Printed in Taiwan
Safety Precautions
This section explains precautions that must be observed when using the camera. If
they are not observed, injury, death and/or property damage may occur. Read the
following information carefully and be sure to observe the precautions.
Installation Precautions
Do not install in the following places:
• Places in strong direct sunlight, near heat-generating objects, or subject to high
temperatures
• Places near fire sources or flammable solvents (alcohol, thinner, fuel, etc.)
• Humid or dusty places
• Places subject to oily smoke or steam
• Places subject to sea air
• Confined or enclosed places
Fire or electric shock may result.
For installation or inspection of this camera, consult the dealer where you purchased
the product.
• This installation should be made by a qualified service person and should conform to
all local codes.
• When installing on a ceiling, make sure the surface is capable of withstanding the
total weight of the camera and indoor dome housing, and is sufficiently reinforced if
necessary.
• Periodically check the parts and screws for rust and to see if they have loosened, in
order to prevent injuries and equipment damage due to falling items.
• Do not install in unstable places, places subject to significant vibration or impact, or
places subject to salt damage or corrosive gas.
• The camera cannot be installed on vertical surfaces such as walls.
• Be sure to attach the safety wire when installing the camera.
• Use exclusively with the camera.
Failure to do so may result in the camera falling or other accidents.
• Do not touch the edge of the metal parts with bare hands.
• Be careful not to trap your fingers during installation of the camera.
Injury may result.
• Do not carry the camera by the camera head.
• Do not turn the camera rotator by hand.
• Do not install the camera on an unstable or inclined surface.
Malfunction may result.
• Take care not to damage wiring or pipes in the room.
Damage to peripheral items may result.
Precautions for Use
• If you discover defective conditions such as smoke, strange sounds, heat or strange
odors, immediately stop using the camera and contact your nearest dealer.
Fire or electric shock may result from continued use of the product.
• Do not disassemble or modify the camera.
• Do not damage the connecting cable.
• Do not spill water or other liquid inside the camera, spray the camera with water, or
otherwise make it wet.
• Do not insert foreign objects into the camera.
• Do not use flammable sprays near the camera.
• Do not leave LAN cables, external power supplies or AC adapter (sold separately) power
connectors connected when the camera is not in use for long periods.
• Do not use flammable solvents such as alcohol, paint thinner or benzine when
cleaning the camera.
Fire or electric shock may result.
Notes on Power Supply
• Only use the dedicated AC Adapter (sold separately) for AC power.
• Do not set any heavy objects on the power cable.
• Do not pull, forcibly bend, scratch, or modify the power cable.
• Do not cover or wrap the AC adapter (sold separately) with cloth or blankets.
Fire or electric shock may result.
Be sure to read the user manual for the dedicated AC adapter (sold separately)
before use.
• Never touch the camera head during initialization. Initialization failure or malfunction
may result.
• After turning off the power, wait for at least five seconds before turning the power on
again. If the power is turned on again too quickly, the camera may not operate well.
Warning
Caution
Caution
Warning
Warning
Caution
