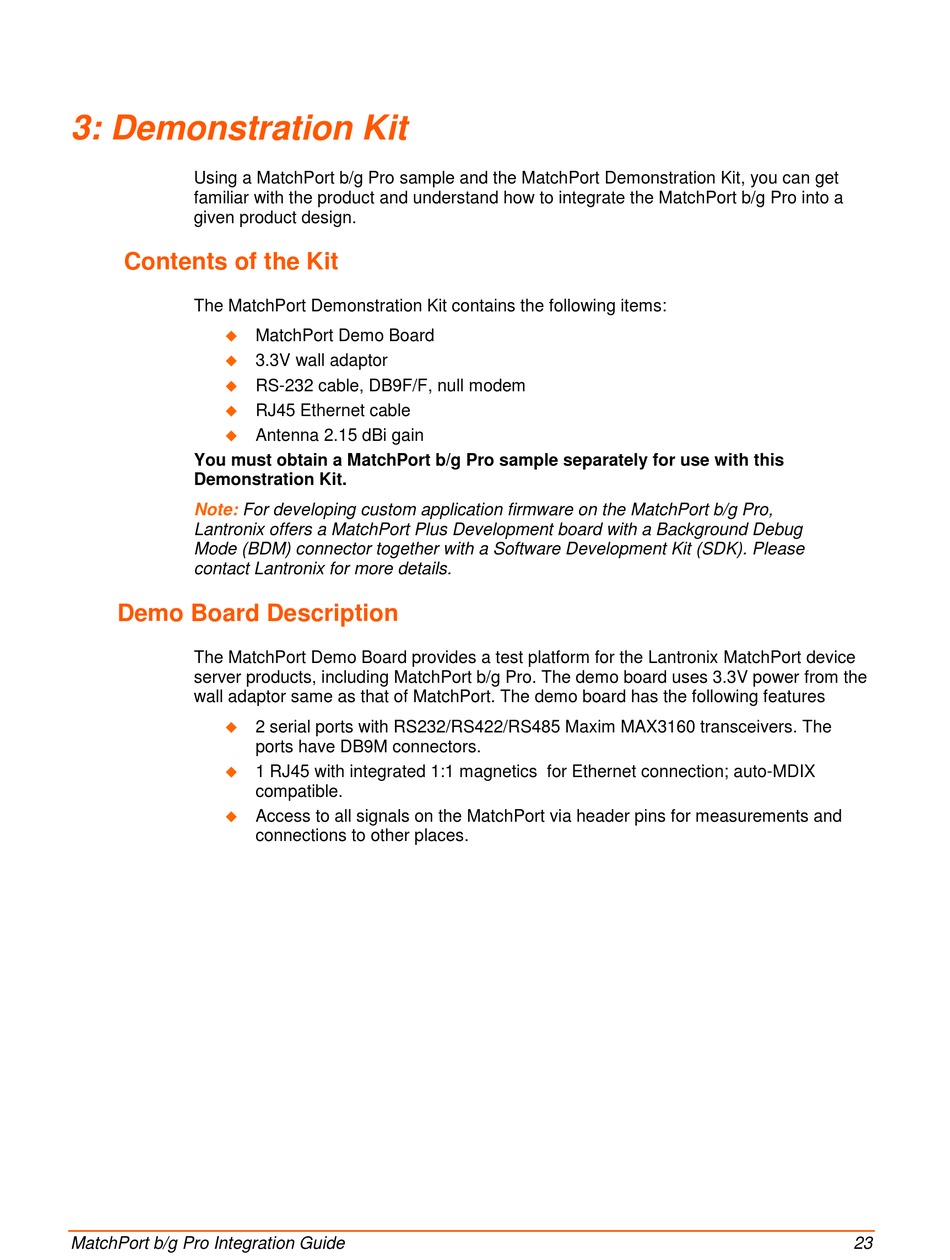

3: Demonstration Kit

Using a MatchPort b/g Pro sample and the MatchPort Demonstration Kit, you can get

familiar with the product and understand how to integrate the MatchPort b/g Pro into a

given product design.

The MatchPort Demonstration Kit contains the following items:



You must obtain a MatchPort b/g Pro sample separately for use with this

Demonstration Kit.

Note:

For developing custom application firmware on the MatchPort b/g Pro,

Lantronix offers a MatchPort Plus Development board with a Background Debug

Mode (BDM) connector together with a Software Development Kit (SDK). Please

contact Lantronix for more details.

The MatchPort Demo Board provides a test platform for the Lantronix MatchPort device

server products, including MatchPort b/g Pro. The demo board uses 3.3V power from the

wall adaptor same as that of MatchPort. The demo board has the following features



MatchPort b/g Pro Integration Guide

MatchPort Demo Board

3.3V wall adaptor

RS-232 cable, DB9F/F, null modem

RJ45 Ethernet cable

Antenna 2.15 dBi gain

2 serial ports with RS232/RS422/RS485 Maxim MAX3160 transceivers. The

ports have DB9M connectors.

1 RJ45 with integrated 1:1 magnetics for Ethernet connection; auto-MDIX

compatible.

Access to all signals on the MatchPort via header pins for measurements and

connections to other places.
