BudgeTone-200 SIP Phone
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Grandstream Networks 200

Summary of Contents for Grandstream Networks 200

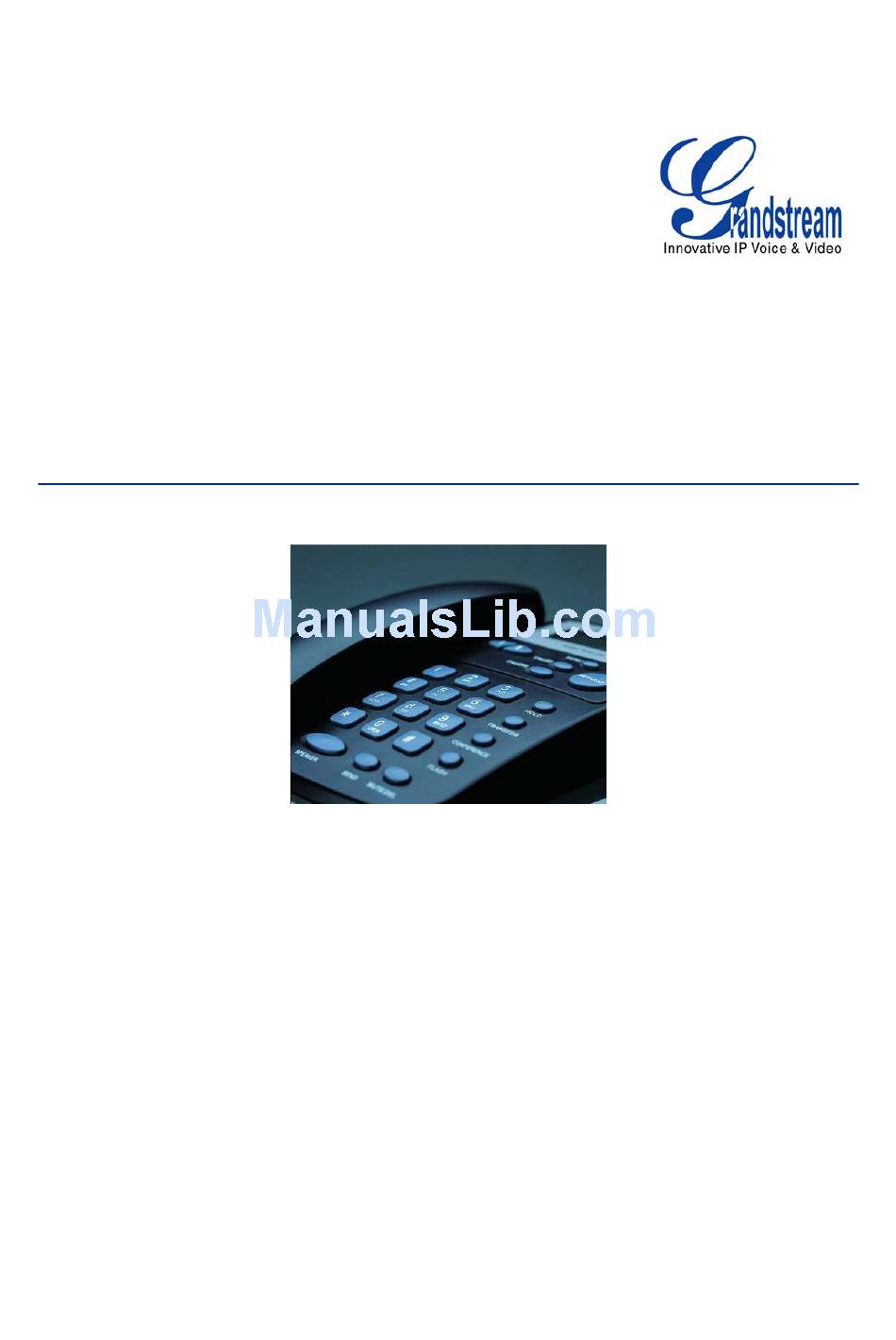

  • Page 1 BudgeTone-200 SIP Phone User Manual...

  • Page 2: Table Of Contents

    Table 3: Hardware Specifications ... 8 Table 4: BT200 Technical Specifications... 8 Table 5: LCD Icons ... 10 Table 6: BT200 Keypad Buttons ... 13 Table 7: BT200 Call Features ... 18 Grandstream Networks, Inc. TABLE OF CONTENTS BT200 USER MANUAL ... 5 ... 12 ...

  • Page 3: Bt200 User Manual

    5. S SIP A CREENSHOT OF CCOUNT 6. S CREENSHOT OF AVED ONFIGURATION 7. S CREENSHOT OF EBOOT Grandstream Networks, Inc. GUI INTERFACE EXAMPLES BT200 USER MANUAL OGIN ONFIGURATION ONFIGURATION ONFIGURATION HANGES BT200 User Manual Firmware 1.1.6.44 Page 3 of 33...

  • Page 4: Welcome

    Welcome Thank you for purchasing Grandstream BudgeTone-200 IP Phone. You made an excellent choice and we hope you will enjoy all its capabilities. Grandstream's BT200 SIP IP phone is the innovative IP telephone that offers a rich set of functionality and superb sound quality.

  • Page 5: Installation

    10/100Mbps RJ-45 ports for PC (downlink) connection. 5V DC power port; UL Certified Power Jack 2.5mm Headset port HEADSET 1. Connect attached telephone cord to the handset and to the phone device. Grandstream Networks, Inc. ACKAGE POWER BT200 User Manual Firmware 1.1.6.44...

  • Page 6: Safety Compliances

    AFETY OMPLIANCES The BudgeTone-200 phone is compliant with various safety standards including FCC/CE. Its power adaptor is compliant with UL standard. The phone should only be operated with the universal power adaptor provided with the package. Damages to the phone caused by using other unsupported power adaptors are not covered by the manufacturer’s warranty.

  • Page 7: Product Overview

    Product Overview The following photo illustrates the appearance of a BudgeTone-200 IP phone. Figure 3: BT200 Front View Figure 4: BT200 Side View Table 2: BT200 Key Features in a Glance Features Open Standards Compatible Superb Audio Quality Network Interfaces...

  • Page 8: Table 3: Hardware Specifications

    Via keypad/LCD, Web browser, or secure (AES encrypted) central configuration file, manual or dynamic host configuration protocol (DHCP) network setup Provisioning Grandstream Networks, Inc. Custom down-loadable ring-tones, SRTP, SIP over TLS (pending), multi-language support and adjustable positioning angles, wall mountable, AES encryption.
  • Page 9 Message waiting indication, support DNS SRV Look up and SIP Server Fail Over Advanced Server Features Security DIGEST authentication and encryption using MD5 and MD5-sess, SRTP, SIP over TLS (pending) Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44 Page 9 of 33 Last Updated: 12/2008...

  • Page 10: Using The Gxp Sip Enterprise Phone

    OFF when the speakerphone is off ON when the speakerphone is on Handset and Speakerphone/Headset Volume Icons: 0-7 scales to adjust handset / speakerphone volume Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44 Page 10 of 33 Last Updated: 12/2008...
  • Page 11 * = └ # = ┘ A, b, C, c, d, E, F, G, g, H, h, I, L, n, O, o, P, q, r, S, t, U, u, Y Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44 Page 11 of 33...

  • Page 12: Getting Familiar With Keypad

    ETTING AMILIAR WITH Grandstream Networks, Inc. EYPAD Speaker Send Mute/Delete BT200 User Manual Firmware 1.1.6.44 Up/Down Keys Message Waiting Indicator Menu Button Called Message Callers Hold Transfer Conference Flash Standard Keypad Page 12 of 33 Last Updated: 12/2008...

  • Page 13: Table 6: Bt200 Keypad Buttons

    FLASH MUTE/DEL SEND/(RE)DIAL SPEAKERPHONE ↑ Grandstream Networks, Inc. Key Button Definitions Digit, star and pound keys are usually used to make phone calls 1) Reduce handset, speakerphone/headset volume after off hook the phone via handset or speaker 2) Reduce ring tone volume when phone in IDLE and off hook to confirm the...

  • Page 14: Make Calls Using Ip Address

    When this option is set to YES, and #XXX is dialed, where X is 0-9 and XXX <=255, phone will make direct IP call to aaa.bbb.ccc.XXX where aaa.bbb.ccc comes from the local IP address REGARDLESS of subnet mask. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44...
  • Page 15 NOTE: If you have a SIP Server configured, a Direct IP-IP still works. If you are using STUN, the Direct IP-IP call will also use STUN. Configure the “Use Random Port” to “NO” when completing Direct IP calls. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44...

  • Page 16: Call Waiting And Call Flashing

    User presses the “FLASH” button and hears a dial tone, then dial the third party’s phone number followed by pressing “SEND” button. If the call is answered, press “TRANSFER” to complete the Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44...

  • Page 17: Checking Message And Message Waiting Indication

    However, if A the conference initiator hangs up, all calls will be terminated. Checking Message and Message Waiting Indication When BudgeTone-200 is on-hook, pressing the MESSAGE button will trigger the phone to call the VM Server (VMS) configured for the Account.

  • Page 18: Grandstream Networks, Inc

    BT200 series phone supports a list of call features: Caller ID Block (or Anonymous Call), Disable/Enable Call Waiting, Call Forward on Busy, Delay, or Unconditional, etc. Following table shows the call features of BudgeTone-200 series phone. Table 7: BT200 Call Features...

  • Page 19: Grandstream Networks, Inc

    Press Menu to display the code releases Press ‘↓’ or ’↑’ to browse Display “[9] Phy Addr” Press MENU to display the physical / MAC address. Display “[10] ring 0” Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44 Page 19 of 33 Last Updated: 12/2008...

  • Page 20: Access The Web Configuration Menu

    NOTE: When changing any settings, always SUBMIT them by pressing the button on the bottom of the page. Reboot the phone to have the changes take effect. If, after having submitted some changes, more settings have to be changed, press the menu option needed. Definitions Grandstream Networks, Inc. ROWSER BT200 User Manual Firmware 1.1.6.44...
  • Page 21 IP Address There BT200 operates in two modes: Grandstream Networks, Inc. 1. DHCP mode: all the field values for the Static IP mode are not used (even though they are still saved in the Flash memory.) The BT200 acquires its IP address from the first DHCP server it discovers on its LAN.
  • Page 22 Password “Account Settings” page. Password field is purposely blank for security reasons after clicking update and saved. The maximum password length is 25 characters. Grandstream Networks, Inc. start-time; end-time; saving Both start-time and end-time have the same syntax: month,day,weekday,hour,minute month: 1,2,3,..,12 (for Jan, Feb, .., Dec) day: [+|-]1,2,3,..,31...
  • Page 23 Please be careful when editing these parameters. Adjusting these parameters will also change the dynamic jitter buffer. The BT200 has a patent dynamic jitter buffer handling algorithm. The jitter buffer range is 20 ~ 200 ms. Grandstream recommends using the default settings provided. Grandstream does not recommend adjusting these parameters if you are an average user.
  • Page 24 Authenticate Default is “No”. If set to “Yes”, configuration file would be authenticated before acceptance. End user should use default setting. Conf File Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44 Page 24 of 33 Last Updated: 12/2008...
  • Page 25 System Ring System ring tone. Default is North American standard. Adjust system ring tone frequencies and cadences based on local telecom standard. Tone Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44 Page 25 of 33 Last Updated: 12/2008...
  • Page 26 Account Name The name associated with each account - displayed on LCD. SIP Server SIP Server’s IP address or Domain name provided by VoIP service provider. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44 Page 26 of 33 Last Updated: 12/2008...
  • Page 27 Use DNS SRV Default is No. If set to “Yes”, the client will use DNS SRV to look up server. If the phone has an assigned PSTN telephone number, this field should be set to User ID is Phone Number “Yes”.
  • Page 28 Force INVITE Session Timer can be refreshed using INVITE method or UPDATE method. Select “Yes” to use INVITE method to refresh the session timer. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44 Page 28 of 33...
  • Page 29 Enable SRTP mode based on selection. Default is No. Special Feature Default is Standard. Choose the selection to meet special requirements from Soft Switch vendors. Grandstream Networks, Inc. • One (1) System Ring Tone: when selected, all calls will ring with system ring tone.

  • Page 30: Saving The Configuration Changes

    Press the “Reboot” button at the bottom of the configuration menu to reboot the phone remotely. The web browser will then display a message window to confirm that reboot is underway. Wait 30 seconds to log in again. Grandstream Networks, Inc. BT200 User Manual Page 30 of 33 Firmware 1.1.6.44...

  • Page 31: Grandstream Networks, Inc

    Support/Download section http://www.grandstream.com/firmware.html Alternatively, download and install a free TFTP or HTTP server to the LAN to perform firmware upgrades. A free Windows version TFTP server is available: customerFree.cfm. Grandstream Networks, Inc. TFTP/HTTP website obtain BT200 User Manual Firmware 1.1.6.44 The corresponding page.

  • Page 32: Grandstream Networks, Inc

    60 minutes) to have the devices periodically check for upgrades at pre- scheduled time intervals. By defining different intervals in P193 for different devices, a Server Provider can manage and reduce the Firmware or Provisioning Server load at any given time. Grandstream Networks, Inc. OWNLOAD BT200 User Manual Firmware 1.1.6.44...

  • Page 33: Restore Factory Default Setting

    4 seconds to continue to key in another “2”. Step 3: Press the MENU button again. If the MAC address is correct, the phone will reboot. Wait for phone reboot and the LCD backlight finish flashing. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.6.44...
