BudgeTone-200 SIP Phone

User Manual

Updated – 01/2008

Advertisement

Table of Contents
loading

Related Manuals for Grandstream Networks BUDGETONE BudgeTone-200

Summary of Contents for Grandstream Networks BUDGETONE BudgeTone-200

  • Page 1: User Manual

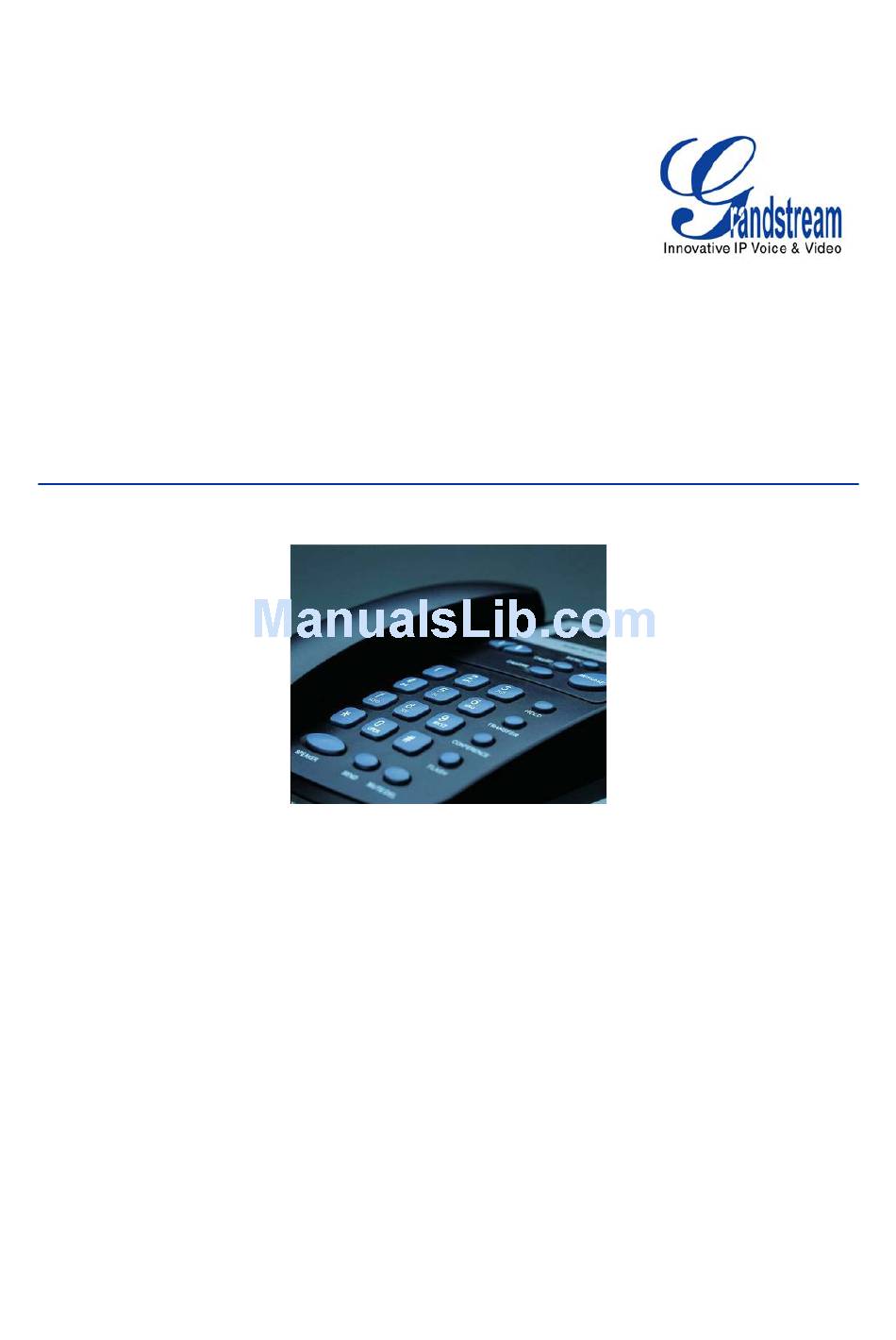

    BudgeTone-200 SIP Phone User Manual Updated – 01/2008...

  • Page 2: Table Of Contents

    Table 3: Hardware Specifications ... 8 Table 4: BT200 Technical Specifications... 8 Table 5: LCD Icons ... 10 Table 6: BT200 Keypad Buttons ... 13 Table 7: BT200 Call Features ... 17 Grandstream Networks, Inc. TABLE OF CONTENTS BT200 USER MANUAL ...5 ...12 ...20...

  • Page 3: Bt200 User Manual

    5. S SIP A CREENSHOT OF CCOUNT 6. S CREENSHOT OF AVED ONFIGURATION 7. S CREENSHOT OF EBOOT Grandstream Networks, Inc. GUI INTERFACE EXAMPLES BT200 USER MANUAL OGIN ONFIGURATION ONFIGURATION ONFIGURATION HANGES BT200 User Manual Firmware 1.1.5.15 Page 3 of 33...

  • Page 4: Welcome

    @: • Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose without the express written permission of Grandstream Networks, Inc. is not permitted. Grandstream Networks, Inc.

  • Page 5: Installation

    10/100Mbps RJ-45 ports for PC (downlink) connection. 5V DC power port; UL Certified Power Jack 2.5mm Headset port HEADSET 1. Connect attached telephone cord to the handset and to the phone device. Grandstream Networks, Inc. ACKAGE POWER BT200 User Manual Firmware 1.1.5.15...

  • Page 6: Safety Compliances

    Grandstream Sales and Service Representative for a RMA (Return Materials Authorization) number before you return the product. Grandstream reserves the right to remedy warranty policy without prior notification. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15 Page 6 of 33...

  • Page 7: Product Overview

    Features Open Standards Compatible Superb Audio Quality Network Interfaces Feature Rich Advanced Features Grandstream Networks, Inc. Benefits Support SIP 2.0, TCP/UDP/IP, PPPoE, RTP/RTCP/SRTP, HTTP, ARP/RARP, ICMP, DNS, DHCP, NTP/SNTP, TFTP. Advanced Digital Signal Processing (DSP), Silence suppression, VAD, CNG, AGC.

  • Page 8: Table 3: Hardware Specifications

    Via keypad/LCD, Web browser, or secure (AES encrypted) central configuration file, manual or dynamic host configuration protocol (DHCP) network setup Provisioning Grandstream Networks, Inc. Custom down-loadable ring-tones, SRTP, SIP over TLS (pending), multi-language support and adjustable positioning angles, wall mountable, AES encryption.
  • Page 9 Message waiting indication, support DNS SRV Look up and SIP Server Fail Over Advanced Server Features Security DIGEST authentication and encryption using MD5 and MD5-sess, SRTP, SIP over TLS (pending) Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15 Page 9 of 33 Last Updated: 01/2008...

  • Page 10: Using The Gxp Sip Enterprise Phone

    OFF when the speakerphone is off ON when the speakerphone is on Handset and Speakerphone/Headset Volume Icons: 0-7 scales to adjust handset / speakerphone volume Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15 Page 10 of 33 Last Updated: 01/2008...
  • Page 11 * = └ # = ┘ A, b, C, c, d, E, F, G, g, H, h, I, L, n, O, o, P, q, r, S, t, U, u, Y Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15 Page 11 of 33...

  • Page 12: Getting Familiar With Keypad

    ETTING AMILIAR WITH Grandstream Networks, Inc. EYPAD Speaker Send Mute/Delete BT200 User Manual Firmware 1.1.5.15 Up/Down Keys Message Waiting Indicator Menu Button Called Message Callers Hold Transfer Conference Flash Standard Keypad Page 12 of 33 Last Updated: 01/2008...

  • Page 13: Table 6: Bt200 Keypad Buttons

    MUTE/DEL SEND/(RE)DIAL SPEAKERPHONE MENU CALLED Grandstream Networks, Inc. Key Button Definitions Digit, star and pound keys are usually used to make phone calls 1) Reduce handset, speakerphone/headset volume after off hook the phone via handset or speaker 2) Reduce ring tone volume when phone in IDLE and off hook to confirm the...

  • Page 14: Making Phone Calls

    When this option is set to YES, and #XXX is dialed, where X is 0-9 and XXX <=255, phone will make direct IP call to aaa.bbb.ccc.XXX where aaa.bbb.ccc comes from the local IP address REGARDLESS of subnet mask. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15...
  • Page 15 NOTE: If you have a SIP Server configured, a Direct IP-IP still works. If you are using STUN, the Direct IP-IP call will also use STUN. Configure the “Use Random Port” to “NO” when completing Direct IP calls. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15...

  • Page 16: Answer An Incoming Call

    User presses the “FLASH” button and hears a dial tone, then dial the third party’s phone number followed by pressing “SEND” button. If the call is answered, press “TRANSFER” to complete the Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15...

  • Page 17: Call Features

    BT200 series phone supports a list of call features: Caller ID Block (or Anonymous Call), Disable/Enable Call Waiting, Call Forward on Busy, Delay, or Unconditional, etc. Following table shows the call features of BudgeTone-200 series phone. Table 7: BT200 Call Features Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15 Page 17 of 33...
  • Page 18 To use this feature, dial “*92” and get the dial tone. Dial the forward number and “#” for a dial tone, then hang up. Cancel Delayed Call Forward To cancel this Forward, dial “*93” and get the dial tone, then hang up. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15 Page 18 of 33...

  • Page 19: Configuration Guide

    Press Menu to display the code releases Press ‘↓’ or ’↑’ to browse Display “[9] Phy Addr” Press MENU to display the physical / MAC address. Display “[10] ring 0” Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15 Page 19 of 33 Last Updated: 01/2008...

  • Page 20: Configuration Via Web Browser

    NOTE: When changing any settings, always SUBMIT them by pressing the button on the bottom of the page. Reboot the phone to have the changes take effect. If, after having submitted some changes, more settings have to be changed, press the menu option needed. Definitions Grandstream Networks, Inc. ROWSER BT200 User Manual Firmware 1.1.5.15...
  • Page 21 Additional functions available to administrators are: • Advanced Settings: To set advanced network settings, codec settings. • Account: To configure each of the SIP accounts. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15 Page 21 of 33 Last Updated: 01/2008...
  • Page 22 Time Zone This parameter controls the date/time display according to the specified time zone. Grandstream Networks, Inc. 1. DHCP mode: all the field values for the Static IP mode are not used (even though they are still saved in the Flash memory.) The BT200 acquires its IP address from the first DHCP server it discovers on its LAN.
  • Page 23 The maximum password length is 25 characters. G723 rate Encoding rate for G723 codec. By default, 6.3kbps rate is set. Grandstream Networks, Inc. start-time; end-time; saving Both start-time and end-time have the same syntax: month,day,weekday,hour,minute month: 1,2,3,..,12 (for Jan, Feb, .., Dec) day: [+|-]1,2,3,..,31...
  • Page 24 RTP port for channel 0. When configured, channel 0 will use this port _value for RTP and the port_value+1 for its RTCP; channel 1 will use port_value+2 for RTP and port_value+3 for its RTCP. The default value is 5004. Grandstream Networks, Inc. voice quality.
  • Page 25 Authenticate Default is “No”. If set to “Yes”, configuration file would be authenticated before Conf File acceptance. End user should use default setting. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15 Page 25 of 33 Last Updated: 01/2008...
  • Page 26 System Ring System ring tone. Default is North American standard. Adjust system ring tone frequencies and cadences based on local telecom standard. Tone Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15 Page 26 of 33 Last Updated: 01/2008...
  • Page 27 SIP service subscriber’s name that is used for Caller ID display. Use DNS SRV Default is No. If set to “Yes”, the client will use DNS SRV to look up server. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15 Page 27 of 33...
  • Page 28 User ID is Phone If the phone has an assigned PSTN telephone number, this field should be set to Number “Yes”. Otherwise, set it to “No”. If “Yes” is set, a “user=phone” parameter will be attached to the “From” header in SIP request SIP Registration This parameter controls sending REGISTER messages to the proxy server.
  • Page 29 Whether to use “sip:anonymous@anonymous.invalid>” in the From Header or P- Asserted-Identity header. Anonymous Call Default is NO. If set to YES, anonymous call will be rejected Rejection Grandstream Networks, Inc. • One (1) System Ring Tone: when selected, all calls will ring with system ring tone. •...

  • Page 30: Saving The Configuration Changes

    Press the “Reboot” button at the bottom of the configuration menu to reboot the phone remotely. The web browser will then display a message window to confirm that reboot is underway. Wait 30 seconds to log in again. Grandstream Networks, Inc. HANGES EMOTELY BT200 User Manual Firmware 1.1.5.15...

  • Page 31: Software Upgrade & Customization

    Support/Download section http://www.grandstream.com/firmware.html Alternatively, download and install a free TFTP or HTTP server to the LAN to perform firmware upgrades. A free Windows version TFTP server is available: customerFree.cfm. Grandstream Networks, Inc. TFTP/HTTP website obtain BT200 User Manual Firmware 1.1.5.15 The corresponding page.

  • Page 32: Configuration File Download

    60 minutes) to have the devices periodically check for upgrades at pre- scheduled time intervals. By defining different intervals in P193 for different devices, a Server Provider can manage and reduce the Firmware or Provisioning Server load at any given time. Grandstream Networks, Inc. OWNLOAD BT200 User Manual Firmware 1.1.5.15...

  • Page 33: Restore Factory Default Setting

    4 seconds to continue to key in another “2”. Step 3: Press the MENU button again. If the MAC address is correct, the phone will reboot. Wait for phone reboot and the LCD backlight finish flashing. Grandstream Networks, Inc. BT200 User Manual Firmware 1.1.5.15...
