gTalk® PBX USER GUIDE

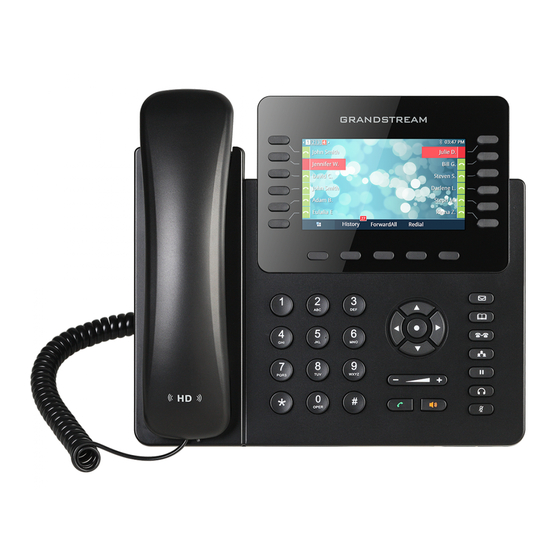

How to Use Grandstream GXP2170 HD IP Phone

No

Features

1.
Handset
2.
Line keys
3.
Message waiting indicator
4.
Messages button
5.
Phone directory
6.
Hold button
7.
Soft-key buttons
8.
Transfer button
9.
Conference button
10.
Headset button
11.
Mute button
© gTalk PBX | www.gtalkpbx.com
Description
Pick up to place or answer a call.
Indicates phone line status. When lit:
Green: Line is idle.
Red (steady): Line is active or in use.
Red (blinking): Ringing the line.
Displays message icon top right corner of the set when
you have voice mail message.
Press to access voice mail.
Press to access phone directory.
Press to place a call on hold.
Press a soft-key button to perform the action shown
on the label on the screen above.
Press to place call transfer.
Press to place a call on conference.
Push to turn the headset on or off. When the headset
is on, the button glows green.
Press to mute/unmute an ongoing phone call. While
idle press the button to lock/unlock the phone (DND).
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GXP2170 and is the answer not in the manual?

Questions and answers

Related Manuals for Grandstream Networks GXP2170

Summary of Contents for Grandstream Networks GXP2170

  • Page 1 PBX USER GUIDE How to Use Grandstream GXP2170 HD IP Phone Features Description Handset Pick up to place or answer a call. Line keys Indicates phone line status. When lit: Green: Line is idle. Red (steady): Line is active or in use.
  • Page 2 Multiple function keys These keys may be used or configured as BLF, Speed Dial, Call Park keys and more. Keypad Use to dial outbound calls, enter letters, and choose menu items. Speaker button Push to turn the speaker on or off. Volume button Press + to increase the volume and - to lower the volume of the handset, headset, speaker (when the...
  • Page 3 Ending a Call To end a call: • If you are using the handset, just hang up. • If you are using the speakerphone, press the Speaker button. • If you are using a headset, press the Headset. Ignoring an Incoming Call: •...
  • Page 4 Placing a Three-Way Conference Call To initiate a conference call: Step 1 - During an active call, press the button. The first call is placed on hold, a second line is opened i.e. you hear a dial tone. Step 2 - Dial the second person’s telephone number. Step 3 - When the second person answers, press the button again.
  • Page 5 Call Forward Activating Call Forwarding: Activate Call Forwarding feature whenever you want your calls to be forwarded to another phone. Once activated, all incoming calls will be forwarded to the number you specified. • Dial *41 + Number + # - To forward incoming calls to a specific telephone number for any reason. •...
