INSTRUCTIONS-PARTS LIST
This manual contains IMPORTAAE(T
WARNINGS
READ AND RETAIN FOR REFERENCE
HYDRA-CLEAN @ 826,1235
Pressure Washers
HYDRA-CLEAN 826
Model 800-232, Series B
800 psi (55 bar) OPERATING PRESSURE
1100 psi (76 bar) MAXIMUM WORKING PRESSURE
HYDRA-CLEAN 1235
Model 800-233, Series A
1200 psi (82 bar) OPERATING PRESSURE
psi
7500
(703 bar) MAX/MUM WORKING PRESSURE
GRACO INC. P.O. Box 1441 MINNEAPOLIS,
and lNSTRUCTlONS
~DCOPYRIGHT 1990, GRACO INC.
G
@ 308-517
Rev
A
QRACO
Supersedes
602-776.802-777
MN 55440-1441

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hydra-Clean 308-517 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Graco Hydra-Clean 308-517

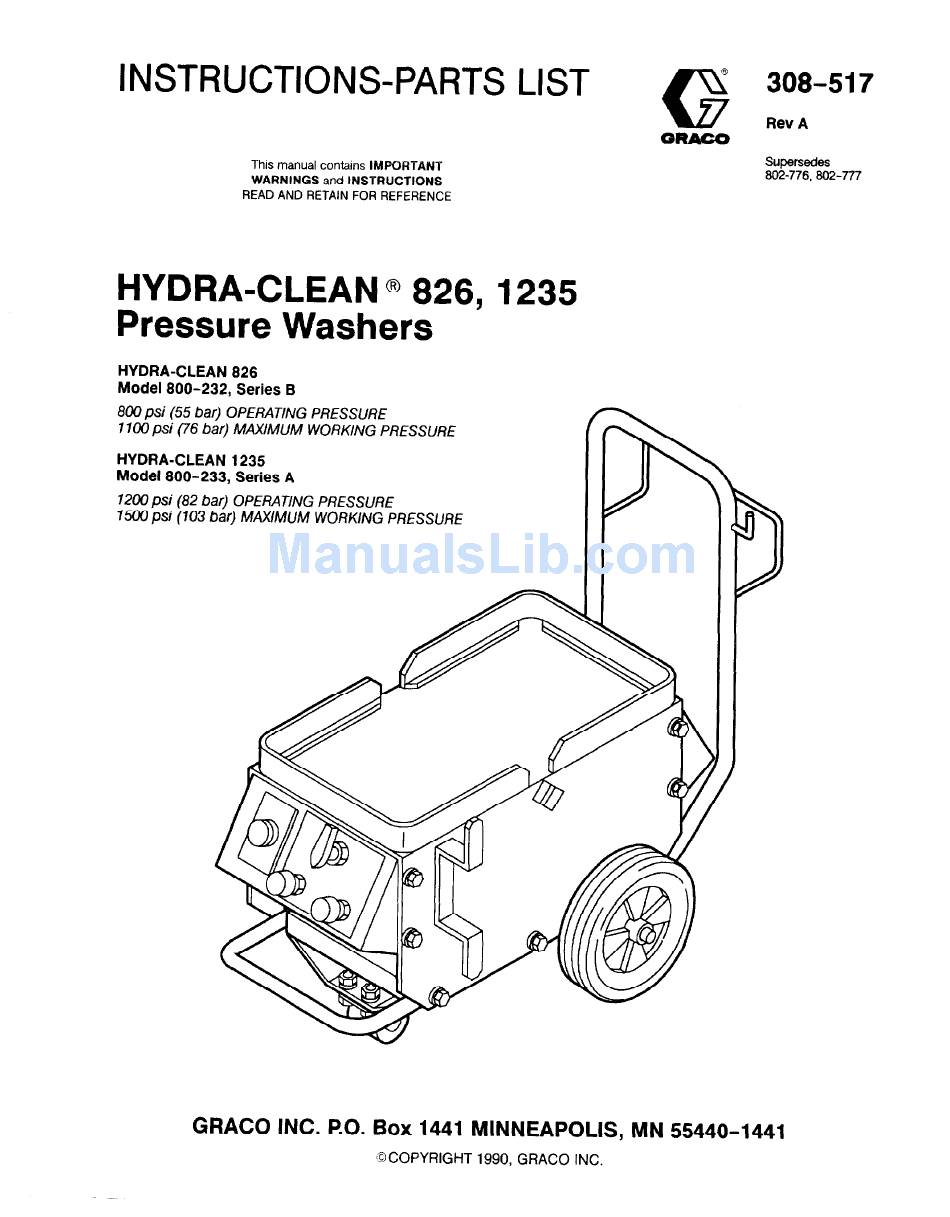

  • Page 1 INSTRUCTIONS-PARTS LIST This manual contains IMPORTAAE(T WARNINGS and lNSTRUCTlONS READ AND RETAIN FOR REFERENCE HYDRA-CLEAN @ 826,1235 Pressure Washers HYDRA-CLEAN 826 Model 800-232, Series B 800 psi (55 bar) OPERATING PRESSURE 1100 psi (76 bar) MAXIMUM WORKING PRESSURE HYDRA-CLEAN 1235 Model 800-233, Series A 1200 psi (82 bar) OPERATING PRESSURE 7500...
  • Page 2: Read And Understand

    HIGH PRESSURE SPRAY CAN CAUSE SERIOUS INJURY FOR PROFESSIONAL Read and understand FLUID INJECTION HAZARD General Safety This pressure washer generates pressure. Spray from the gun, leaks components can inject fluid through your skin and into your body and cause extremely serious bodily injury including the need for amputation.
  • Page 3: Ground Fault Circuit Interrupter

    GROUND FAULT CIRCUIT INTERRUPTER To comply with me National Electrical Code (NFPA 70) and to provide additional protection from the risk of electric shock, connect the 1235 pressure washer to a EXTENSION CORDS Use only 3-wire extension cords that have 3-prong...
  • Page 4 A repaired hose cannot contain the high pressure fluid. HANDLEAND on hoses to move the pressure washer. Do not use chemicals which are not compatible with the inner tube and cover of the hose. DO temperatures above 200”...
  • Page 5 WARNING DANGER: Alerts user to avoid or correct conditions that could cause bodily injury. NOTE: Identifies helpful procedures and information. United States Government safety standards have been adopted under the Occupational standards-particularly the General Standards, Part 1910, and the Construction consulted.
  • Page 6 CHEMICAL STORAGE TRAY PUMP OIL LEVEL INDICATOR WINDOW MOTOR SWITCH CHEMICAL METERING VALVE Check for Shipping Damage Check the unit for any damage that may have occurred in shipping. Note any damage and immediately. Set Up Before plugging in the unit, be sure the electrical service matches the specification in Technical Data (inside back cover) and the voltage label on the unit.
  • Page 7 Doing so may cause recirculating water to overheat damage the pump. Turn off the pressure washer if it will not be spraying or cleaning at least every 10 minutes. If heated inlet water is used, reduce this time further. run the pump dry, which will quickly damage the pump.
  • Page 8: Trigger Safety Latch

    Before disconnect the water supply and disconnect the electricity. If the pressure washer will be exposed to freezing temperatures, must be stored in freezing temperatures, unit with a 50% anti-freeze pressure. Flush the pressure washer before using it again to remove the anti-freeze.
  • Page 9 the risk of serious bodily injury, including fluid injection, splashing in the eyes or onthe skin, or injury from To reduce Pressure Relief Procedure Warning moving parts, always follow the Problem Cause ow pressure and/or Worn or wrong size tip. Dump runs rough Inlet filter clogged.
  • Page 10: Parts Drawing

    PARTS DRAWING 800-232 Hydra-Clean@ 828 Pressure Washer (Wiring Diagram - see page 12) 800-233 Hydra-Clean@ 1235 Pressure Washer (Wiring Diagram - see page 13) 308-517...
  • Page 11: Parts List

    PARTS LIST 800-232 Hydra-Clean@ 826 Pressure Washer 800-233 Hydra-Clean@ 1235 Pressure Washer PART DESCRIPTION 802-760 COVER, Switch 803-155 CORD SET, GFCI, 115V xx 803-149 CORD SET, 230V 803-185 LABEL, Warning, GFCI #c 803-186 LABEL, Warning, cord set 801-223 801-894 SWITCH, Motor...
  • Page 12: Wiring Diagram

    PARTS DRAWING 800-l 54 Pump and Motor Assembly PARTS LIST 800-154 Pump and Motor Assembly PART DESCRIPTION 801-862 MOTOR, 1.5 hp TEFC, 1 phase (incl 12) 801-864 PUMP, 800 psi, (see parts drawing, page 14) 801-870 HOUSING, Coupler 801-871 COUPLER (incl 11) 801-872 SCREW, Cap, hex hd M6 x 20 801-023...
  • Page 13 PARTS DRAWING 800-248 Pump and Motor Assembly PARTS LIST 800-248 Pump and Motor Assembly FIEF PART DESCRIPTION 802-625 MOTOR, 3.0 hp TEFC, 1 phase (incl 10) PUMP, 1200 psi (see parts 802-629 drawing, page 16) HOUSING, Coupler 802-633 802-698 COUPLER (incl 9) SCREW, Cap, hex hd M6 x 16 WASHER, Lock l/4 801-139...
  • Page 14 PARTS DRAWING 802-265 Pump Asse 308-517 - ia...
  • Page 15 802-265 Pump Assembly, 800 psi PART DESCRIPTION 801-899 MANIFOLD, Aluminum 802-795 MANIFOLD, Brass 801-651 SCREW, Cap, socket hd. 801-652 WASHER, Lock KIT 1 O-RING KIT 1 SEAT Valve KIT 1 PLATE, Valve KIT 1 SPRING KIT 1 GUIDE, Valve KIT 4 O-RING KIT 4 KIT 1...
  • Page 16 PARTS DRAWING 802-629 Pump Asse 308-517...
  • Page 17 802-629 Pump Assembly, 1200 psi PART DESCRIPTION 802-319 MANIFOLD, 1200 psi 801-651 SCREW,Cap, sockethd. 801-652 WASHER, Lock KIT 1 O-RING KIT 1 SEAT, Valve KIT 1 PLATE, Valve KIT 1 SPRING KIT 1 GUIDE, Valve KIT 4 O-RING KIT 4 KIT 1 VALVE ASSEMBLY KIT 19, 27 PACKING...
  • Page 18: Pumping Section

    WARNING To reduce the risk of serious including fluid injection, splashing in the eyes or on the skin, or injury from moving parts, always Pressure Relief Procedure Warning follow the before proceeding. NOTE: The following metric wrenches are needed: Ml 0, Ml 3 and M30. Repair kits are available. Refer to the individual repair sections and the pump parts page for more details.
  • Page 19 FLUSH KIT 802-327 or storing pressure washer in below inlet water pressure to 60 psi (4 bar) Model 800-233 3.0 hp. 1 phase 230 volt/20 amp/60 Hz 1200 psi (82 bar) 3.5 gpm (13 Ipm)
  • Page 20: Phone Numbers

    THE GRACO WARRANTY WARRANTY AND DISCLAIMERS Grace warrants all equipment manufactured and workmanship on the date of sale by an authorized Grace distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty, Grace will. for a period of twenty four months from date of sale, repair or replace any part of the equipment proven defective.

This manual is also suitable for:

Hydra-clean 826Hydra-clean 1235800-232800-233
