10:1 ratio bulldog, portable, stainless steel rubber packed 1000 psi (6.9 mpa, 69 bar) maximum working pressure

Advertisement

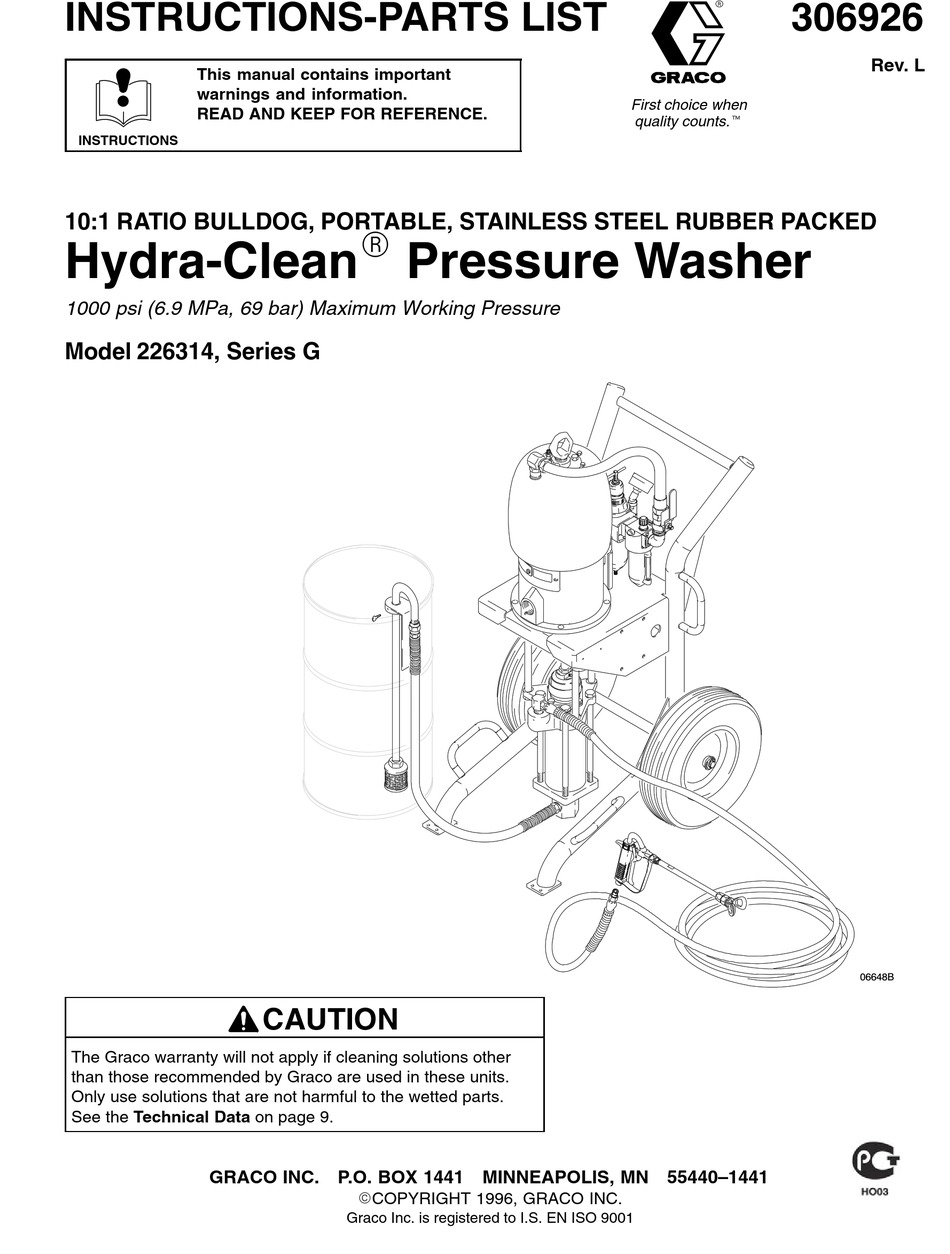

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
10:1 RATIO BULLDOG, PORTABLE, STAINLESS STEEL RUBBER PACKED
Hydra-Clean
1000 psi (6.9 MPa, 69 bar) Maximum Working Pressure
Model 226314, Series G
The Graco warranty will not apply if cleaning solutions other
than those recommended by Graco are used in these units.
Only use solutions that are not harmful to the wetted parts.
See the Technical Data on page 9.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
R

Pressure Washer

CAUTION
ECOPYRIGHT 1996, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
306926
First choice when
quality counts.t
Rev. L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hydra-Clean 226314 and is the answer not in the manual?

Questions and answers

Summary of Contents for Graco Hydra-Clean 226314

  • Page 1: Pressure Washer

    Only use solutions that are not harmful to the wetted parts. See the Technical Data on page 9. GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 Pressure Washer ECOPYRIGHT 1996, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001 306926 Rev.
  • Page 2: Table Of Contents

    Warnings ........Installation .
  • Page 3: Warnings

    INJECTION HAZARD Spray from the gun, leaks or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. D Fluid injected into the skin is a serious injury.
  • Page 4: Installation

    Grounding WARNING FIRE AND EXPLOSION HAZARD Before operating the pump, ground the system as explained below. Also read the section FIRE AND EXPLOSION HAZARD on page 3. Although water generally provides a natural electrical ground, the following equipment must be grounded if the cleaning chemicals are volatile.
  • Page 5: Pump Setup

    Fig. 2 Pump Setup See Fig. 2. Connect the suction hose (28) between the pump inlet (A) and the suction tube (18), using thread sealant on the male threads. Screw on the suction tube filter (B). Place the suction tube in the supply drum, and adjust it so it is 1 in.
  • Page 6: Operation

    Pressure Relief Procedure WARNING INJECTION HAZARD Fluid under high pressure can be in- jected through the skin and cause seri- ous injury. To reduce the risk of an injury from injection, splashing fluid, or moving parts, fol- low the Pressure Relief Procedure whenever you: D are instructed to relieve the pressure, D stop spraying, D check or service any of the system equipment,...
  • Page 7 WARNING To reduce the risk of overpressurizing the sprayer, NEVER exceed 1000 psi (6.9 MPa, 69 bar) Maxi- mum Working Pressure. If you add any accesso- ries to the fluid line, be sure they are rated for at least 1000 psi (6.9 MPa, 69 bar) working pressure. Adjust the air line lubricator to about two drops per minute through the sight glass when the pump is running.
  • Page 8: Troubleshooting

    NOTE: Refer to the separate instruction manuals which are supplied with this sprayer, and the manuals which are supplied with any accessories you added, for complete operation, troubleshooting and repair instructions. NOTE: Check all possible problems and solutions before disassembling the unit. Problem Will not spray Valve will not stop pump operation Clogged fluid intake filter...
  • Page 9: Pump Performance Chart

    Pump Performance Chart 7 cycles per gallon (3.8 liter) Maximum recommended continuous speed: 60 cycles/min: 8 gpm (29 liter/min) 40 psi (0.3 MPa, 3 bar) AIR SUPPLY TO PUMP SPRAY TIP ORIFICE SIZE (l/min) (m#/min) 0.065 in. (1.65 mm) (6.6) (0.28) (2.4 MPa, 24 bar) 0.078 in.
  • Page 10 Parts Detail A Detail B 1e, 1f, 1g Detail B Detail A...
  • Page 11 Model 226314, Series G 10:1 Bulldog Portable Hydra-Clean Unit Ref. Part No. Description 244530 CART ASSY, global Includes items 1a–1g 113362 . WHEEL 113436 . RING, retaining 113361 . CAP 191605 . BRACKET 100131 . NUT, hex; 3/8–16 100133 . WASHER, lock; 3/8 100004 .
  • Page 12: Graco Standard Warranty

    Graco Standard Warranty Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
