Procom PCK110VT Owner's Manual page 4

1. Slide Axle (A) through holes in wheel support frame.
2. Slide Wheel Spacer (B), then wheel (D) (concave side facing outward) onto axle.
3. Attach Acorn Nut (C) finger tight to end of axle.
4. Repeat steps 2 and 3 for opposite side, then tighten nuts with adjustable wrench.

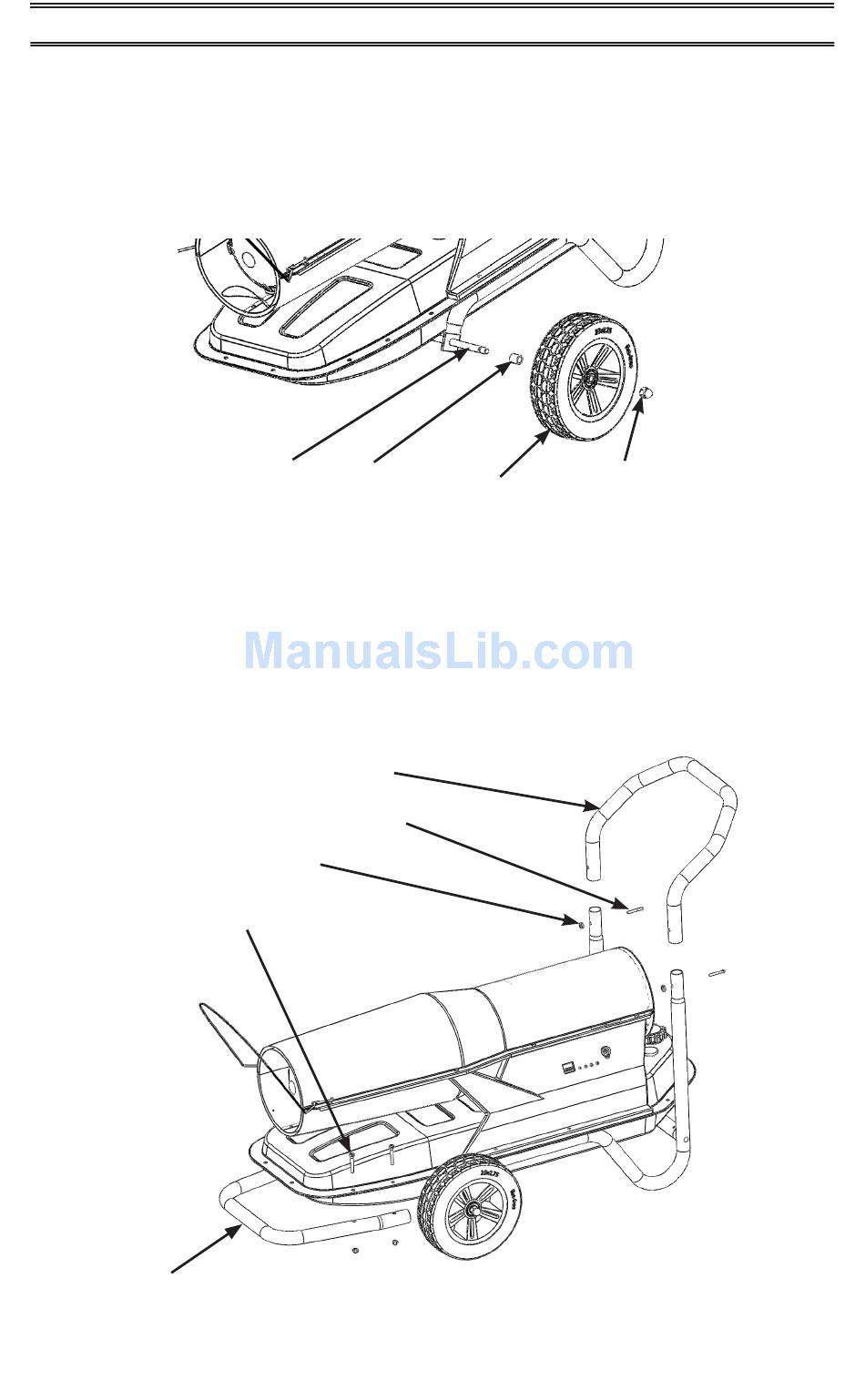

Figure 2 - Wheel Assembly, 160, 175 and 220 Models
1. Slide rear handle (E) onto Wheel Support Frame. Insert Screws (G) from rear and attach
lock nuts (F).
2. Place Front Handle (I) under flange of fuel tank and insert 4 screws (J) from top of flange
through holes in flange into holes in handle. Attach Lock Nuts (H) and tighten.
Lock Nut 10-24 (F)
Screw 1/4-20 x 1.75" (J)
Front Handle (I)
Figure 3 - Handle Assembly, 160, 175 and 220 Models
4
ASSEMBLY
WHEEL ASSEMBLY
Models 160, 175 and 220
Axle (A)
Spacer (B)
HANDLE ASSEMBLY
Models 160, 175 and 220
Rear Handle (E)
Screw, 10-24 x 1.5 (G)
www.usaprocom.com
Acorn Nut (C)
Wheel (D)
160108-01B
