5/8 Port 10/100Mbp Switch
Side Panel

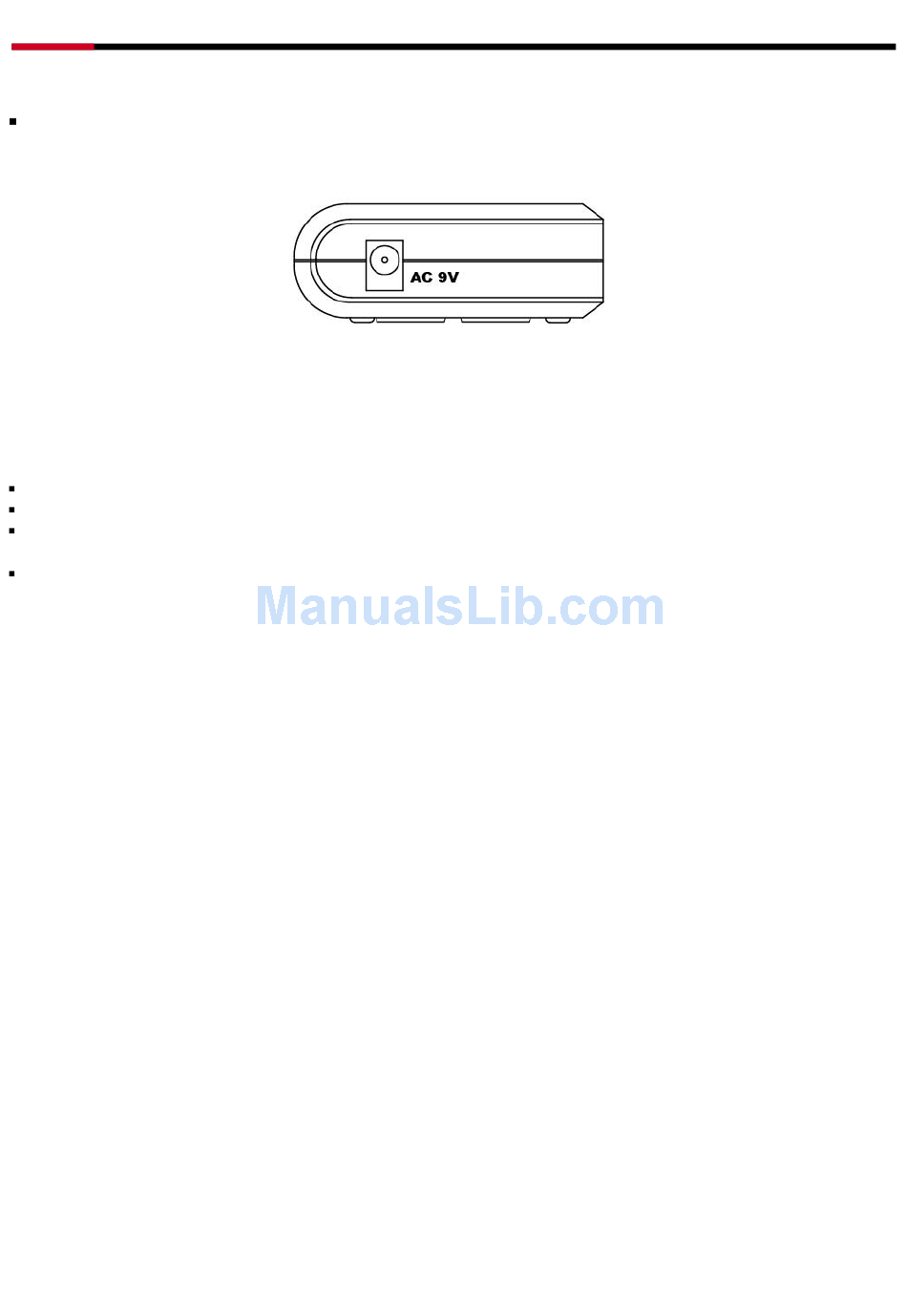

The side panel of the 5/8Port Switch indicates a AC inlet, which accepts 100-240V 50-60Hz Power adapter.
Chapter 3:
Hardware Installation
Place the Switch on a smooth surface
Connect the output of power cord to the AC-inlet of the Switch.
Connect other IEEE802.3 compatible network device(Hub ,Switch ,PC) to one port of the Switch using
Category 3/4/5 UTP/STP cabling.
Connect another IEEE802.3 compatible network device (Hub , Switch ,PC) to another port of the Switch
by following the same process as described in Step3.
Notice:
The cable distance between the Switch and other IEEE802.3 compatible network device should not exceed
100 meter.
Make sure the wiring is correct
It can be used Category 3/4/5 cable in 10 Mbps operation. To reliably operate your network at 100Mbps, you
must use an Unshielded/shielded Twisted-Pair (UTP/STP) Category 5 cable, or better Data Grade cabling.
While a Category 3 or 4 cable may initially seem to work, it will soon cause data loss.
All kinds of IEEE802.3 compatible network device (Hub , Switch ,PC)can connect to the Switch by using
straight-through wires or crossover wires because of Switch's auto MDIX function.
Chapter 4:
Hardware Troubleshooting
This chapter contains information to help you solve problems. If the Switch is not functioning properly, make
sure the Switch was set up according to instructions in this manual.
1.
The Power LED is not lit
Solution:
a. Check if the AC power cord is well connected. Try to unplug and plug back the power cord
to the LAN Switch or try another power cord.
b. Check if the AC power source is in good condition.
RC405/406
6
User Manual
