Summary of Contents for Chauvet COLORado Batten 72 Tour
- Page 1 User Manual...
- Page 2 Copyright Notice CHAUVET® owns the content of this User Manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2012 CHAUVET®. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Before You Begin ....................1 What Is Included ......................... 1 Unpacking Instructions ......................1 Claims ............................1 Typographic Conventions ....................1 Icons ............................ 1 Safety Notes ........................2 Expected LED Lifespan ...................... 2 2. - Page 4 Table of Contents TOUR ............................14 TOUR (Cont.) ..........................15 Tour (Cont.) ..........................16 BLOCK1 ............................ 16 BLOCK2 ............................ 16 ARC1 ............................16 ARC1 + D ..........................16 ARC2 ............................17 ARC2 + D ..........................17 ARC2 + S ..........................17 HSV ............................
-
Page 5: Before You Begin
If the box or contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately upon receipt, not CHAUVET®. Failure to notify the carrier in a timely manner may invalidate your claim. In addition, keep the container and all the packing material for inspection. -
Page 6: Safety Notes
There are no user-serviceable parts in this product. Any reference to servicing in this User Manual applies only to properly certified CHAUVET® technicians. Do not open the housing or attempt any repairs unless you are certified by CHAUVET®. Abide by all applicable local codes and regulations for proper installation of this product. -
Page 7: Introduction

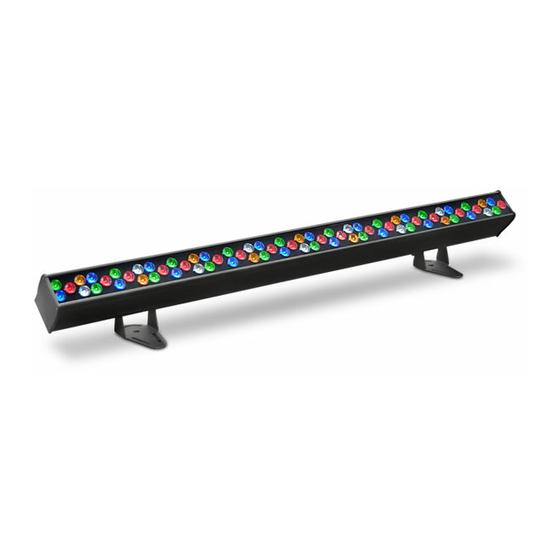

Introduction 2. Introduction Product The COLORado™ Batten 72 Tour is an RGBWA linear LED wash light. It consists of a single module that accommodates the internal power supply, the main control, the control Description panel, the LED drivers, the LED boards and lenses as well as the power and signal connectors. -
Page 8: Product Overview
Introduction Product Overview Control Panel 5-Pin DMX In/Out 3-Pin DMX In/Out Safety Eye Bolt Fuse Power Out Power In COLORado™ Batten 72 Tour User Manual Rev. 3... -
Page 9: Setup
The listed current rating indicates the maximum current draw during normal operation. For more information, download Sizing Circuit Breakers from the CHAUVET® website: www.chauvetpro.com. Never connect this product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0% to 100% switch. -
Page 10: Dmx Linking
You must configure each slave product’s control panel to operate in SLAVE mode. During Master/Slave operation, the slave products will operate in unison with the master product. If you are not familiar with DMX, download the DMX Primer from the CHAUVET® website: www.chauvetpro.com. -
Page 11: Mounting
Always mount this product in a safe position and make sure there is adequate room for ventilation, configuration, and maintenance. Rigging CHAUVET® recommends using the following general guidelines when mounting this product. · When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance. -
Page 12: Operation
Operation 4. Operation Control Panel Button Function Description <MENU> Exits from the current menu or function Enables the currently displayed menu or <ENTER> sets the currently selected value in to the current function Navigates upward through the menu list and <UP>... -
Page 13: Dmx Control Without Id Addressing
Operation DMX Control In this mode, each product will respond to a unique starting address from the DMX Without ID controller. All products with the same starting address will respond in unison. Addressing Select the TOUR personality as shown in Personality. -
Page 14: Edit Customs
Operation Edit Customs This setting allows the programming of up to 30 scenes for each of the 10 customizable programs, including colors and effects. 1. Go to the EDIT main level. 2. Select the desired auto program (CUSTOM 01~10). 3. Select the desired scene (SCENE 01~30). 4. -
Page 15: Control Panel Lock
· Green indicates that the upload process completed successfully. · Red indicates that the upload process failed due to an error. Recheck all cable connections and restart the process. If the issue persists, contact CHAUVET® Technical Support. DO NOT upload the data from a COLORado™ Batten 72 Tour to a different product. -
Page 16: Fan Setting
Operation When selecting RGB TO W, you will only be able to define the values of RED, GREN (green), and BLUE. The values of RED, GREN, and BLUE configured from CALIB > RGB TO W will define the color temperature shown when the RGB faders are set to 255 if SETTING > COLOR >... -
Page 17: Menu Map
Operation Menu Map Main Level Program Levels Description GREN User can combine Red, Green, Blue, White, and BLUE 000~255 Amber to generate a custom color STATIC WHIT AMBE STRB 00~20 Select a strobe frequency AUTO Choose from 10 automatic programs AUTO 01~10 CUSTOM... -
Page 18: Dmx Values
Operation DMX Values TOUR Channel Function Value Percent/Setting 000 ó 255 000~100% Master Dimmer 000~100% 000 ó 255 (Step Time when playing custom.01~10) 000~100% 000 ó 255 Green (Fade Time when playing custom.01~10) 000 ó 255 000~100% Blue 000 ó 255 000~100% White 000 ó... -
Page 19: Tour (Cont.)
Operation TOUR Channel Function Value Percent/Setting (Cont.) 000 ó 010 No Function 011 ó 020 Fans Off 021 ó 030 Fans Low 031 ó 040 Fans Normal 041 ó 050 Fans High 051 ó 060 Fans Auto 061 ó 070 Auto 1 071 ó... -
Page 20: Tour (Cont.)
Operation Tour Channel Function Value Percent/Setting (Cont.) 000 ó 010 Blocks 1, 2 & 3 005 ó 034 Block 1 035 ó 064 Block 2 065 ó 094 Block 3 095 ó 124 Module Select Blocks 1 & 2 125 ó 154 Blocks 2 &... -
Page 21: Arc2
Operation ARC2 Channel Function Value Percent/Setting 000 ó 255 000~100% 000 ó 255 000~100% Green 000 ó 255 000~100% Blue 000 ó 255 000~100% White 000 ó 255 000~100% Amber ARC2 + D Channel Function Value Percent/Setting 000 ó 255 000~100% Master Dimmer 000 ó... -
Page 22: Technical Information
Technical Information 5. Technical Information Product To maintain optimum performance and minimize wear, you should clean this product frequently. Usage and environment are contributing factors in determining the cleaning Maintenance frequency. As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 23: Troubleshooting Guide
Faulty Display/Main board Send product for repair If you still experience technical problems after trying the above solutions or if you need to send the product for repair, contact CHAUVET® Technical Support. COLORado™ Batten 72 Tour User Manual Rev. 3 -19-... -
Page 24: Returns Procedure
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. Proper FedEx packing or double-boxing are the packaging methods CHAUVET® recommends. CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s). Contact Us World Headquarters United Kingdom &... -
Page 25: Technical Specifications
Technical Information Technical Specifications Dimensions and Length Width Height Weight Weight 2.9 in (75 mm) 38.9 in (990 mm) 6.1 in (156 mm) 9.8 lbs (4.4 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range Voltage Selection Switching (internal) - Page 26 CHAUVET® 5200 NW 108 Avenue Sunrise, FL 33351 (USA) Toll free (800) 762-1084, Local 954-577-4455 Fax 954-929-5560 www.chauvetlighting.com COLORado™ Batten 72 Tour User Manual – Rev. 3, © Copyright 2012 CHAUVET® All rights reserved. Printed in the P. R. C.
