Summary of Contents for Chauvet COLORado 1 Tri-7 Tour

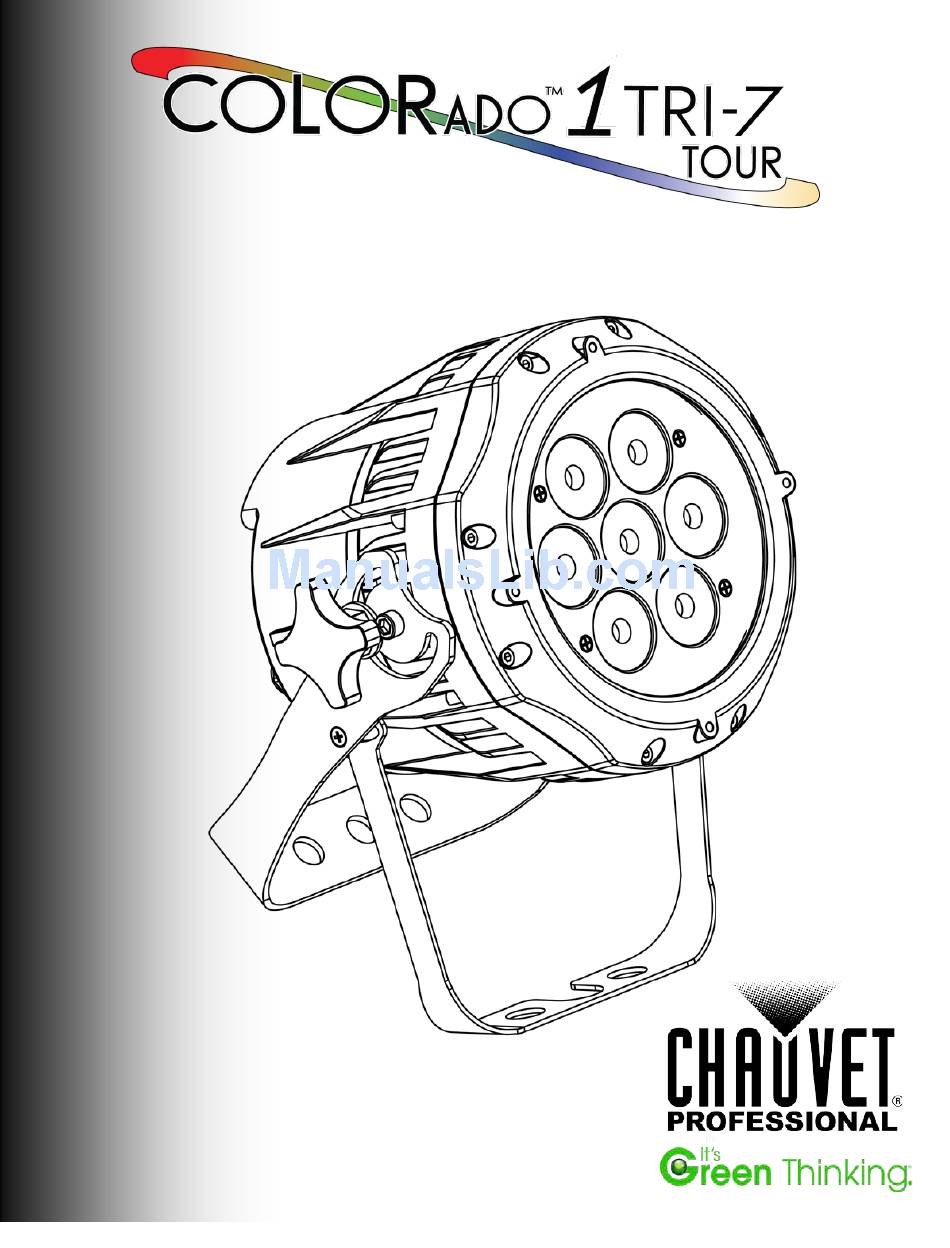

- Page 1 User Manual...
- Page 2 Edition Notes precautions, installation, programming, operation, and maintenance of the COLORado™ 1 TRI-7 TOUR. CHAUVET® released this edition of the COLORado™ 1 TRI-7 TOUR User Manual in July 2013. CHAUVET® is a registered trademark of CHAUVET & Sons Inc. (d/b/a CHAUVET® or Trademarks Chauvet).
-
Page 3: Table Of Contents
Settings Lock Out ..................................12 Program Upload ..................................13 Reset ......................................13 Calibration Settings Reset ................................13 Whites Setting .................................... 14 White Calibration ..................................14 Strobe Personality ..................................14 Menu Map ................................... 15 Menu Map (Continued) ............................... 16 Colorado™ 1 TRI-7 TOUR User Manual... - Page 4 DMX Values (Continued) ............................19 DMX Values (Continued) ............................20 DMX Values (Continued) ............................21 5. Technical Information ..........................22 Product Maintenance ..............................22 Returns ..................................22 Technical Specifications ............................. 23 Contact Us .................................. 24 -ii- Colorado™ 1 TRI-7 TOUR User Manual...
-
Page 5: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Manual Conventions Convention... -
Page 6: Product At A Glance
· In case of a serious operating problem, stop using this product immediately! In the unlikely event that your CHAUVET® product may require service, contact CHAUVET® Technical Support. LEDs gradually decline in brightness over time, mostly because of heat. Packaged in... -
Page 7: Introduction
Introduction 2. Introduction The COLORado™ 1 TRI-7 TOUR is an RGB wash product based on 7 tri-color (RGB) Product Description LEDs. It consists of a single pod with a double-bracket mounting yoke. The AC power comes directly into the fixture’s housing through a Neutrik® powerCON A socket. The power linking uses a Neutrik®... -
Page 8: Overview
Introduction Overview Safety Loop Control Panel DMX Out DMX In Yoke Adjustment Power In Power Out Rear View Double-Bracketed Yoke Adjustment Yoke Side View Colorado™ 1 TRI-7 TOUR User Manual... -
Page 9: Dimensions
Introduction Dimensions Front View Side View Colorado™ 1 TRI-7 TOUR User Manual... -
Page 10: Setup
Each COLORado™ 1 TRI-7 TOUR has an auto-ranging power supply that works with an AC Power input voltage range of 100~240 VAC, 50/60 Hz. To determine the power requirements for each COLORado™ 1 TRI-7 TOUR, refer to the label affixed to the product. You can also refer to the Technical Specifications in this manual. -
Page 11: Power Linking
Setup The COLORado™ 1 TRI-7 TOUR supports power linking. You can power link up to 20 Power Linking products at 120 VAC, 35 products at 208 VAC, or 38 products at 230 VAC. This product comes with a power input cord. This product does not come with a power linking cable;... -
Page 12: Mounting
Orientation ventilation, configuration, and maintenance. Rigging The COLORado™ 1 TRI-7 TOUR consists of a double-bracketed yoke and the body of the product. CHAUVET® recommends using the following general guidelines when mounting this product. · When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance. -
Page 13: Operation
<UP>, <DOWN>, <UP>, <DOWN>, <ENTER> This password cannot be changed and must be used whenever prompted. You can set the COLORado™ 1 TRI-7 TOUR start address in the 001~512 DMX range. Control Options This enables control of up to 32 products in the 13-channel TR16. personality. -
Page 14: Dmx Personality
2. Select the desired color: R. (red), G. (green), b. (blue). 3. Select the desired color value (000~255). 4. Repeat for the other colors. 5. Select ST. (strobe frequency). 6. Select the desired strobe frequency 00~20 (0~20 Hz). -10- Colorado™ 1 TRI-7 TOUR User Manual... -
Page 15: Auto Programs
· The master product should be the first product in the daisy chain. Color Settings The Color setting determines how the COLORado™ 1 TRI-7 TOUR generates the white color based on various RGB settings. 1. Go to the SET main level. -
Page 16: Dimmer Curves
Operation Dimmer Curves This setting determines how fast the output of the COLORado™ 1 TRI-7 TOUR changes when you modify the values of the red, green, blue, and dimmer faders. This setting provides four different options to simulate the dimming speed of an incandescent lighting product. -
Page 17: Program Upload
4. Enter the master access password as described in Control Panel Lock. 5. Wait for the reset process to finish. This setting allows you to reset the COLORado™ 1 TRI-7 TOUR to the default values of Calibration Settings the color macros in Whites Setting Whites Calibration. -
Page 18: Whites Setting
This setting allows you to select the classic strobe (01~20 Hz) or special Strobe Personality (random/slow/fast) strobe personalities. 1. Go to the SET main level. 2. Go to STRB.. 3. Select a strobe personality (CLAS. or SPEC.). -14- Colorado™ 1 TRI-7 TOUR User Manual... -
Page 19: Menu Map
Combines red, green, and blue to generate a 000~255 custom color (0~100%) EdIT PR. 01~10 SC. 01~30 00~20 Selects the strobe frequency (0~20 Hz) Defines the step duration (0~100%) 000~255 Defines the fade duration (0~100%) Colorado™ 1 TRI-7 TOUR User Manual -15-... -
Page 20: Menu Map (Continued)
000~255 …. Defines the color temperature used when COLO. (Enter CAL2 RGBw. is set to RGBw.. Passcode) …. CALR (Enter CALR Defaults CAL to factory settings Passcode) Turns the password on or off -16- Colorado™ 1 TRI-7 TOUR User Manual... -
Page 21: Dmx Values
140 ó 149 14 Hz 150 ó 159 15 Hz 160 ó 169 16 Hz 170 ó 179 17 Hz 180 ó 189 18 Hz 190 ó 199 19 Hz 200 ó 255 20 Hz Colorado™ 1 TRI-7 TOUR User Manual -17-... -
Page 22: Dmx Values (Continued)
Linear dimmer 030 ó 069 Nonlinear dimming curve 1 (fastest) Dimmer Speed 070 ó 129 Nonlinear dimming curve 2 130 ó 189 Nonlinear dimming curve 3 190 ó 255 Nonlinear dimming curve 4 (slowest) -18- Colorado™ 1 TRI-7 TOUR User Manual... -
Page 23: Dmx Values (Continued)
221 ó 225 White 5 226 ó 230 White 6 231 ó 235 White 7 236 ó 240 White 8 241 ó 245 White 9 246 ó 250 White 10 251 ó 255 White 11 Colorado™ 1 TRI-7 TOUR User Manual -19-... -
Page 24: Dmx Values (Continued)
161 ó 170 Custom 5 171 ó 180 Custom 6 181 ó 190 Custom 7 191 ó 200 Custom 8 201 ó 210 Custom 9 211 ó 220 Custom 10 221 ó 255 No Function -20- Colorado™ 1 TRI-7 TOUR User Manual... -
Page 25: Dmx Values (Continued)
000 ó 255 Green 0~100% 000 ó 255 Blue 0~100% 000 ó 255 Strobe 0~20 Hz HSV. Channel Function Value Percent/Setting 000 ó 255 0~100% 000 ó 255 Saturation 0~100% 000 ó 255 Value 0~100% Colorado™ 1 TRI-7 TOUR User Manual -21-... -
Page 26: Technical Information
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. CHAUVET® will refuse any product returned without an RMA number. -
Page 27: Technical Specifications
104 °F (40 °C) Convection I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets 3, 4, 5, 9, 13 Ordering Product Item Code Item Number COLORado™ 1 TRI-7 TOUR 01030724 781462210724 Colorado™ 1 TRI-7 TOUR User Manual -23-... -
Page 28: Contact Us
World Wide Web World Wide Web www.chauvetlighting.com www.chauvetlighting.co.uk Outside the U.S., United Kingdom, or Ireland, contact your dealer. Follow their instructions to request support or to return a product. Visit our website for contact details. COLORado ™ 1 TRI-7 TOUR User Manual...
