Chauvet COLORado 2-Quad Zoom Tour User Manual

Hide thumbs Also See for COLORado 2-Quad Zoom Tour:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Reference Manual
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Chauvet COLORado 2-Quad Zoom Tour

Summary of Contents for Chauvet COLORado 2-Quad Zoom Tour

  • Page 1 User Manual...
  • Page 2 Copyright Notice CHAUVET® owns the content of this User Manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2014 CHAUVET®. All rights reserved.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Product At A Glance ..............................2 Safety Notes ................................. 2 Personal Safety .................................... 2 Mounting And Rigging ..................................
  • Page 4 Table of Contents Auto/Custom ....................................15 Dimmer Speed ................................... 15 Configuration (DMX) ..............................16 DMX Personalities ..................................16 DMX Control....................................16 Loss Of Signal Setting ................................16 Zoom Limit Settings ................................... 16 DMX Values ................................17 DMX Values (Cont.) ..............................18 DMX Values (Cont.) ..............................

  • Page 5: Before You Begin

    If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not CHAUVET®. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.

  • Page 6: Product At A Glance

    This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained CHAUVET® certified technicians. Do not open the housing or attempt any repairs.

  • Page 7: Introduction

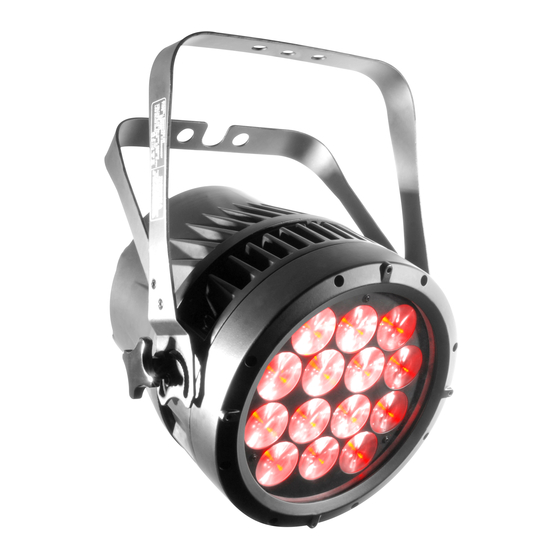

    Introduction 2. I NTRODUCTION Description The COLORado™ 2-Quad Zoom Tour is a high-power quad-color (RGBW) LED wash product with color mixing and zoom control. This product consists of a single module that houses the internal power supply, the control panel, the LED drivers, the LED boards, and motorized moving lenses, as well as the power and signal connectors.

  • Page 8: Overview

    Introduction Overview Power In DMX In DMX In Power Out DMX Out DMX Out Double- Bracketed Yoke Control Panel Rear View Side View Safety Cable Loop Bracket Adjustment Knob Front View Top View COLORado™ 2-Quad Zoom Tour User Manual Rev. 1...

  • Page 9: Dimensions

    Introduction Dimensions 11.1 in 11.1 in 283 mm 283 mm 9.3 in 236 mm 13.8 in 348 mm COLORado™ 2-Quad Zoom Tour User Manual Rev. 1...

  • Page 10: Setup

    The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the CHAUVET® website: www.chauvetlighting.com/download/pro. Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire.

  • Page 11: Power Linking

    5 products at 120 V; up to 10 at 208 V; or up to 10 at 230 V. This product comes with a power input cord. Power linking cables are available from CHAUVET® for purchase. DMX Linking You can link the COLORado™ 2-Quad Zoom Tour to a DMX controller using a 3- or 5-pin DMX connection.

  • Page 12: Mounting

    You must supply your own mounting clamps. Make sure the clamps (such as CLP-15 from CHAUVET®) are capable of supporting the weight of this product. Use at least one mounting point per product.

  • Page 13: Operation

    Operation 4. O PERATION Control Panel Button Function Description <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the currently <ENTER> selected value in to the current function Navigates upward through the menu list or increases the numeric <UP>...

  • Page 14: Menu Map

    Operation Menu Map Main Level Programming Levels Description Combines red, green, blue, and white to make a custom color (0–100%) 000–255 STAT Changes the beam angle (zoom) Selects the strobe frequency 00–20 (0–20 Hz) 01–10 10 automatic programs AUTO C1–10 10 customizable programs DMX mode SLAV...

  • Page 15: Menu Map (Cont.)

    Operation Menu Map (Cont.) Main Level Programming Levels Description Uploads custom programs to other **** UPLd COLORado™ 2-Quad Zoom Tours (Enter Passcode) **** REST Defaults product to factory settings (Enter Passcode) BLAC Blacks out fixture upon loss of DMX DERR Continues with last command upon loss of SAVE DMX control...

  • Page 16: Configuration (Standalone)

    Operation Configuration Use standalone configuration to operate the product without a DMX controller. (Standalone) Auto Programs Auto programs allow for dynamic RGBW color mixing without a DMX controller. 1. Go to the AUTO main level. 2. Select the desired auto (AT. 01–10) or custom program (PR. C1–10). You cannot edit any of the auto programs (AT.

  • Page 17: Dimmer Curves

    · Red indicates that the upload process failed due to an error. Recheck all cable connections and restart the process. If the issue persists, contact CHAUVET® Technical Support. DO NOT upload the data from a COLORado™ 2-Quad Zoom Tour to a different product.

  • Page 18: Reset

    Operation Reset This setting allows you to reset the COLORado™ 2-Quad Zoom Tour to the default values, including the custom programs. 1. Go to the SET main level. 2. Select REST, press <ENTER>. 3. Enter the master access passcode as described in Passcode. 4.

  • Page 19: Tour Notes

    Operation TOUR Notes These notes clarify the way the TOUR DMX personality works. · Master Dimmer Channel 1 controls the intensity of the currently projected color. · When the slider is at the highest position (100%), the intensity of the output is at maximum. ·...

  • Page 20: Configuration (Dmx)

    Operation Configuration Use DMX configurations to operate the product with a DMX controller. (DMX) This setting allows you to choose a particular DMX personality. 1. Go to the PERS main level. Personalities 2. Select the desired personality (TOUR, TR16, STD.Y, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, or HSV).

  • Page 21: Dmx Values

    Operation DMX Values TOUR Channel Function Value Percent/Setting Dimmer 000ó255 0–100% 0–100% 000ó255 (Step Duration if Custom 1–10 in CH. 8 is active) 0–100% Green 000ó255 (Fade Duration if Custom 1–10 in CH. 8 is active) Blue 000ó255 0–100% White 000ó255 0–100% 000ó010...

  • Page 22: Dmx Values (Cont.)

    Operation DMX Values (Cont.) TOUR Channel Function Value Percent/Setting (cont.) 000ó040 No function 041ó050 Auto 1 051ó060 Auto 2 061ó070 Auto 3 071ó080 Auto 4 081ó090 Auto 5 091ó100 Auto 6 101ó110 Auto 7 111ó120 Auto 8 121ó130 Auto 9 Programs 131ó140 Auto 10...

  • Page 23: Dmx Values (Cont.)

    Operation DMX Values (Cont.) AR1.D Channel Function Value Percent/Setting Dimmer 000ó255 0–100% 000ó255 0–100% Green 000ó255 0–100% Blue 000ó255 0–100% ARC.2 Channel Function Value Percent/Setting 000ó255 0–100% Green 000ó255 0–100% Blue 000ó255 0–100% White 000ó255 0–100% AR2.D Channel Function Value Percent/Setting Dimmer 000ó255...

  • Page 24: Dmx Values (Cont.)

    Operation DMX Values (Cont.) TR16 Channel Function Value Percent/Setting Dimmer 000ó255 0–100% 000 ó 255 0–100% Fine Dimmer 0–100% 000 ó 255 (Step Duration if Custom 1–10 in CH. 13 is active) 0–100% 000 ó 255 Fine Red (Fade Duration if Custom 1–10 in CH. 13 is active) 000 ó...

  • Page 25: Dmx Values (Cont.)

    Operation DMX Values (Cont.) TR16 Channel Function Value Percent/Setting (cont.) 000ó040 No function 041ó050 Auto 1 051ó060 Auto 2 061ó070 Auto 3 071ó080 Auto 4 081ó090 Auto 5 091ó100 Auto 6 101ó110 Auto 7 111ó120 Auto 8 121ó130 Auto 9 Programs 131ó140 Auto 10...

  • Page 26: Dmx Values (Cont.)

    Operation DMX Values (Cont.) STD.Y Channel Function Value Percent/Setting 000 ó 255 0–100% Dimmer 000 ó 255 0–100% Fine Dimmer 0–100% 000 ó 255 (Step Duration if Custom 1–10 in CH. 13 is active) 0–100% 000 ó 255 Fine Red (Fade Duration if Custom 1–10 in CH.

  • Page 27: Dmx Values (Cont.)

    Operation DMX Values (Cont.) STD.Y Channel Function Value Percent/Setting (cont.) 000ó040 No function 041ó050 Auto 1 051ó060 Auto 2 061ó070 Auto 3 071ó080 Auto 4 081ó090 Auto 5 091ó100 Auto 6 101ó110 Auto 7 111ó120 Auto 8 121ó130 Auto 9 Programs 131ó140 Auto 10...

  • Page 28: Technical Information

    Technical Information 5. T ECHNICAL NFORMATION Product To maintain optimum performance and minimize wear, you should clean this product frequently. Usage and environment are contributing factors in determining the cleaning Maintenance frequency. As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating.

  • Page 29: Technical Specifications

    Technical Information 6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 11.1 in (283 mm) 9.3 in (236 mm) 13.8 in (348 mm) 17.8 lb (8.1 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection...

  • Page 30: Returns

    Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. CHAUVET® will refuse any product returned without an RMA number.
