Page 1: User Manual
Snapshot Hurricane™ 700 OK on Dimmer Outdoor OK Sound Activated DMX512 Master/Slave 115V/230V Switch Replaceable Fuse User Serviceable Duty Cycle USER MANUAL 3000 N 29 Ct, Hollywood, FL 33020 U.S.A. (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ........................3 What is included .......................... 3 Unpacking Instructions ........................ 3 AC Power ............................ 3 Contact Us ..........................4 Safety Instructions ........................4 2. Introduction ........................... 5 Features ............................5 Product Overview ........................5 Mounting ............................. -
Page 3: Before You Begin
1. B EFORE EGIN What is included 1 x Hurricane™ 700 1 x Wired Remote 1 x Warranty Card 1 x User Manual 1 x Fluid (0.6L) Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Contact Us
There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. Hurricane™ 700 User Manual 12/23/2008 6:02 PM... -
Page 5: Introduction

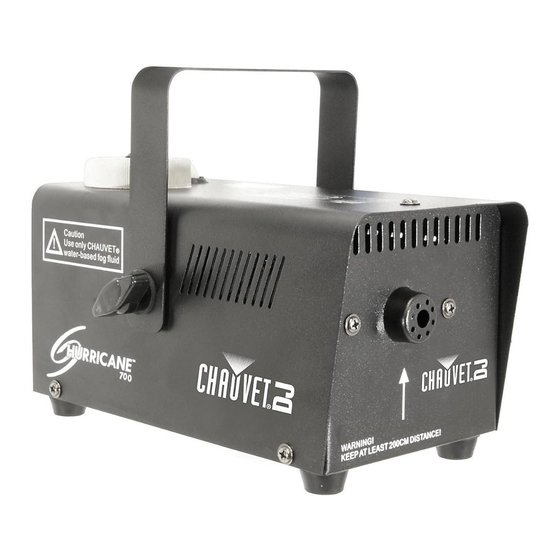

2. I NTRODUCTION Features Output: 1,500cfm 0.6L tank capacity 4 minute heat up Manual fog button Wired remote included Water-based fogger Product Overview Fluid reservoir Wired controller connection Fluid level indicator Manual button Fog ready button Fuse cover Power on/off button Power input... -
Page 6: Mounting
Mounting O RI ENT AT I O N This fixture may be mounted in a 90° degree angle only, provided there is adequate room for ventilation. RI G G I NG Hanging Clamp It is important never to obstruct the fan or vents pathway. Mount the fixture using, a suitable “C”... -
Page 7: Fuse Replacement
Disconnect the power cord before replacing a fuse and always replace with the same type fuse. Fuse Replacement With your hands, unscrew the fuse holder from its housing. Remove the damaged fuse from its holder and replace with exact same type fuse. Screw the fuse holder back in its place and reconnect power. -
Page 8: General Troubleshooting
Remote does not Make sure connector is firmly connected to device work If you still have a problem after trying the above solutions, please contact CHAUVET Technical Support at the location on the next page. Technical Support Address: Service Dept. -
Page 9: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) General Maintenance To maintain optimum performance and minimize wear fixtures should be cleaned frequently. -
Page 10: Returns Procedure
Package must be clearly labeled with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will be refused. Call CHAUVET and request RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 11: Technical Specifications
Technical Specifications WEIGHT & DIMENSIONS Length ..........................8.5 in (215 mm) Width ..........................7.1 in (180 mm) Height ..........................4.9 in (125 mm) Weight ............................. 4 lbs (1.8 kg) POWER AC Power (voltage specific) ..............115VAC 60Hz or 230VAC 50Hz Fuse ...............................
