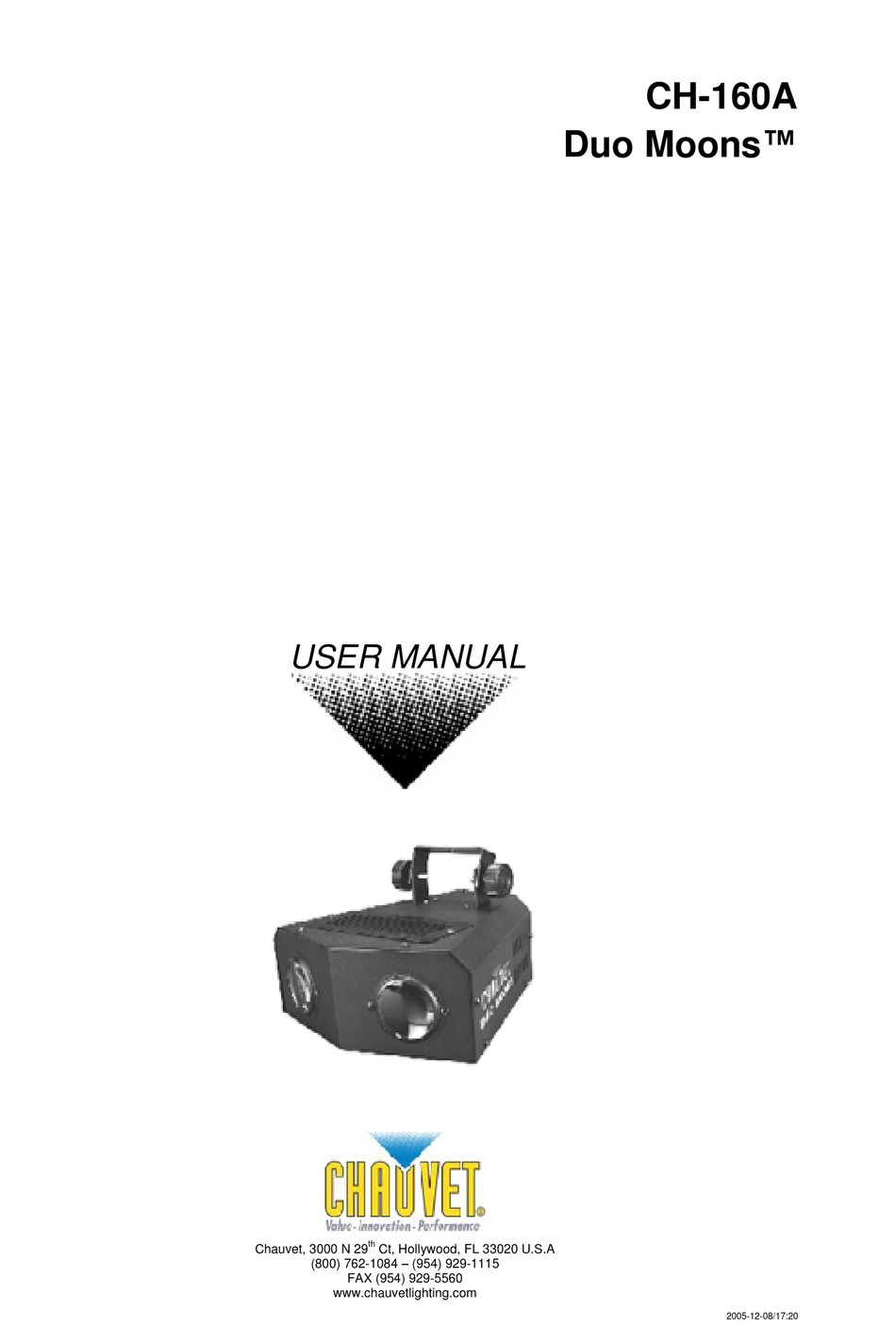

Page 1: User Manual
CH-160A Duo Moons™ USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2005-12-08/17:20... -
Page 2: Table Of Contents
ABLE OF ONTENT TABLE OF CONTENT ..............................2 BEFORE YOU BEGIN ..............................3 ....................................3 HAT IS INCLUDED ..................................3 NPACKING NSTRUCTIONS AC P ......................................3 OWER ..................................3 AFETY NSTRUCTIONS INTRODUCTION................................4 ......................................4 EATURES .................................... 4 RODUCT VERVIEW SETUP .................................... -
Page 3: Before You Begin
Avoid direct eye exposure to lamp while it is on. lamp source. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. CH-160A User Manual 2005-12-08/17:20... -
Page 4: Introduction
NTRODUCTION Features 1 multicolored and 1 white moonflower Sound-Activated Pre-programmed shows Operating modes: Sound activated or automatically Independent flashing, rotating & static modes Additional optional dishes sold separately Product Overview Hanging NOTICE! Bracket This is not a power switch. Mode Switch ON = Sound Activated Dishes will rotate back and forth to... -
Page 5: Setup
ETUP Lamp You will need to install a lamp prior to the initial operation of the fixture. Two BRL 50w halogen lamps are included. This lamp is used on both the 115V and 230V versions of the Duo Moons™ Warning! When replacing the lamp, please wait 15 minutes after powering down to allow the unit to cool down! Always disconnect from main power prior to lamp replacement. -
Page 6: Operating Instructions
If you would prefer to control it directly from your DMX lighting console then we suggest a DMX compatible (relay switch-pack). These devices are an extremely affordable solution to operating non- DMX lighting effects remotely. To learn more about these and other CHAUVET products visit us at www.chauvetlighting.com. CH-160A User Manual 2005-12-08/17:20... -
Page 7: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 8: General Troubleshooting
Appendix General Troubleshooting Applies to Foggers Dimmers Symptom Solution(s) Lights & Snow Controllers & Chaser Auto shut off Check fan thermal switch reset Beam is very dim or not Clean optical system or replace lamp bright Check 220/110v switch for proper setting ... -
Page 9: Technical Specifications
Appendix Technical Specifications WEIGHT & DIMENSIONS Length........................... 279 mm (11 in) Width..........................279 mm (11 in) Height ........................120 mm (4.75 in) Weight..........................5 Kgs (11 lbs) Shipping weight.......................5 Kgs (11 lbs) POWER Power......................115V 60Hz or 230V 50Hz Current draw .......................(peak 190W @ 120V) LAMPS BRL x (2)..........................
