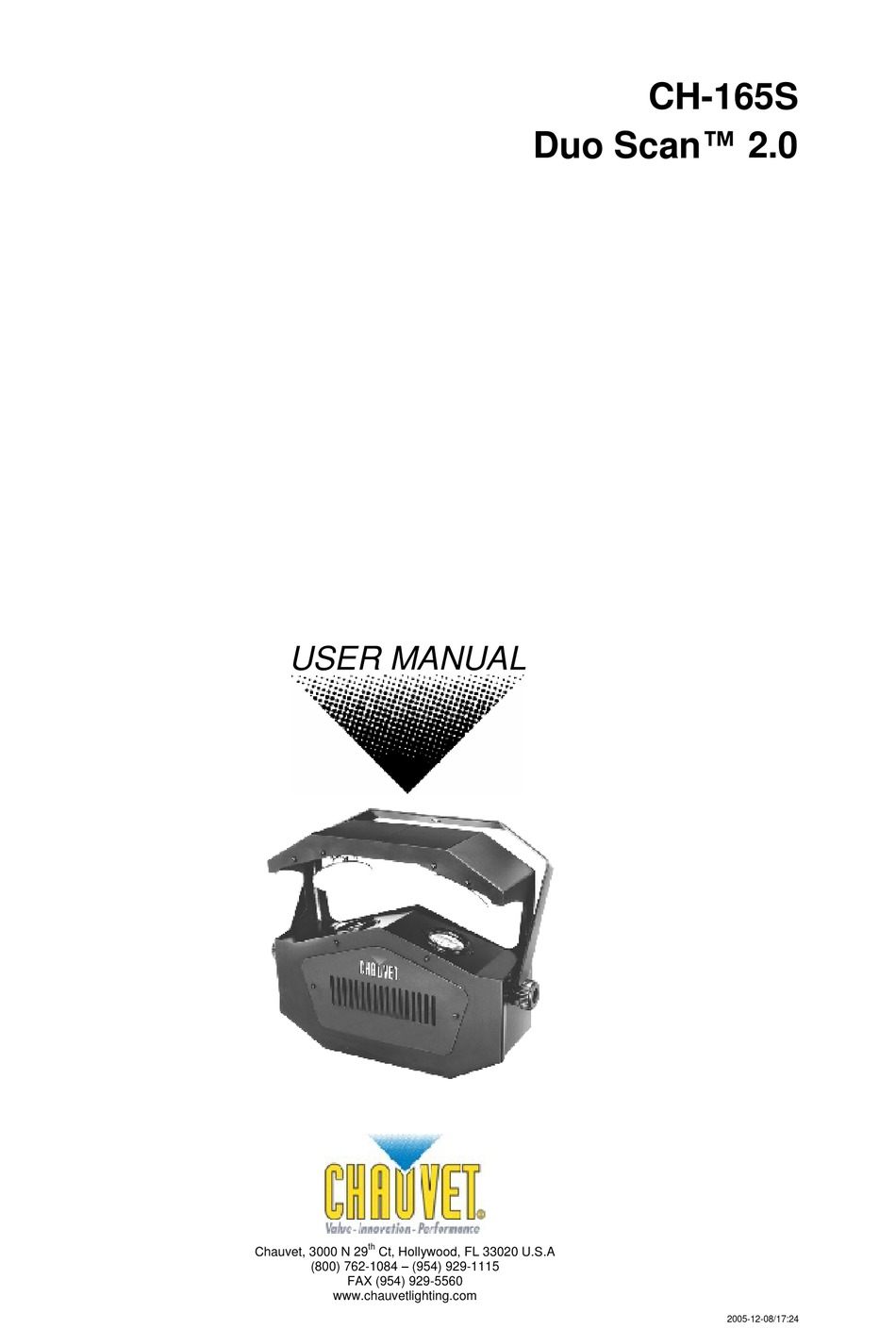

- Page 1 CH-165S Duo Scan™ 2.0 USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2005-12-08/17:24...
-
Page 2: Table Of Contents
... 5 OUNTING Orientation... 5 Rigging ... 5 OPERATING INSTRUCTIONS... 6 APPENDIX... 7 ... 7 ENERAL AINTENANCE ... 7 ETURNS ROCEDURE ... 7 LAIMS ... 8 ENERAL ROUBLESHOOTING ... 9 ECHNICAL PECIFICATIONS ... 9 ECHNICAL UPPORT CH-165S User Manual 2005-12-08/17:24... -
Page 3: Before You Begin
EFORE EGIN What is included 1 x Duo Scan™ 2.0 (CH-165S) 2 x BRL 50W 12V lamps Warranty Card & Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Introduction
Independent movement of dishes and mirrors Sound-Activated Pre-programmed shows Independent flashing, rotating, static & scanning Additional optional dishes sold separately Product Overview Hanging Bracket Swivel Mirrors Fuse holder CH-165S User Manual Lamp cover plate Microphone Plate removed and lamps exposed 2005-12-08/17:24... -
Page 5: Setup
Safety cables should always be used. Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Note! Clamps sold separately! CH-165S User Manual Lamps exposed Hanging Clamp 2005-12-08/17:24... -
Page 6: Operating Instructions
If you would prefer to control it directly from your DMX lighting console then we suggest a DMX compatible (relay switch-pack). These devices are an extremely affordable solution to operating non- DMX lighting effects remotely. To learn more about these and other CHAUVET products visit us at www.chauvetlighting.com. CH-165S User Manual 2005-12-08/17:24... -
Page 7: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 8: General Troubleshooting
Check reset switch Check cable connections Remote does not work Make sure connector is firmly connected to device Unit wobbles when Check for damages possibly incurred during shipping rotating CH-165S User Manual Foggers Lights & Snow ... -
Page 9: Technical Specifications
Maximum ambient temperature ... 40° (104° F) FUSE Main ... 20mm Glass 3A 250V Fast Blow PCB ... 20mm Glass 3A 250V Fast Blow ORDERING INFORMATION Duo Scan™ 2.0... CH-165S Fuse 3A ... P170FUSE003 Technical Support Address: Support (Email): Telephone:...
