CH-175
Color Bank™ 12

USER MANUAL

th
CHAUVET, 3000 N 29
Ct, Hollywood, FL 33020 U.S.A
(800) 762-1084 – (954) 929-1115
FAX (954) 929-5560
www.chauvetlighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH-175 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chauvet CH-175

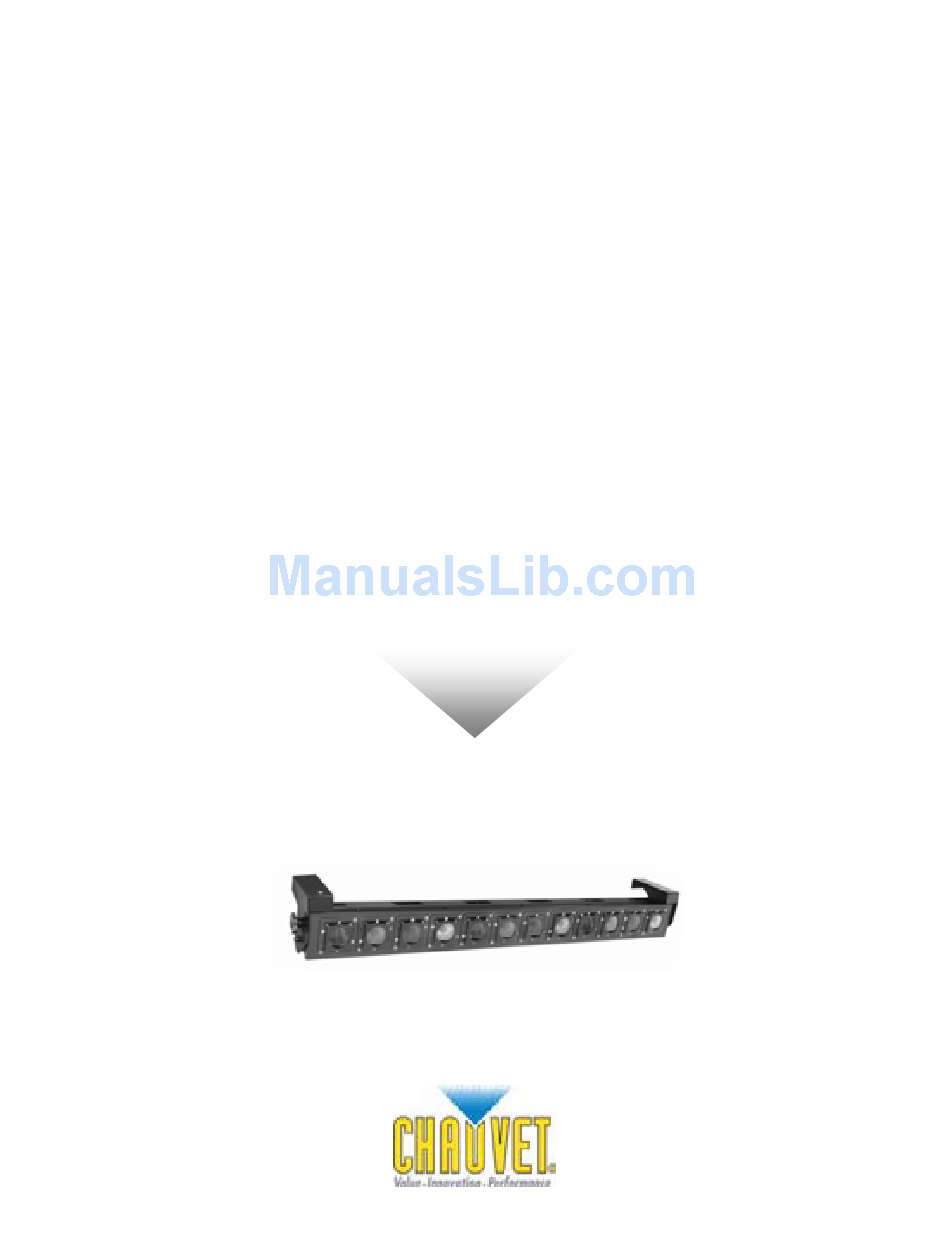

  • Page 1: User Manual

    CH-175 Color Bank™ 12 USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com...
  • Page 2: Table Of Contents

    Audio Activated... 7 Master/Slave ... 7 Master/Slave settings ... 8 CB-FS Color Bank Footswitch (Optional) ... 8 APPENDIX... 9 ... 9 ENERAL AINTENANCE ... 9 ETURNS ROCEDURE ... 9 LAIMS ... 10 ENERAL ROUBLESHOOTING ... 11 ECHNICAL PECIFICATIONS CH-175 User Manual 2004-09-20/13:36...
  • Page 3: Before You Begin

    EFORE EGIN What is included 1 x CH-175 with hanging brackets and knobs Power cord with plug Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling.
  • Page 4: Introduction

    Full on FULLO N Mode LED Mode change indicator button - Full ON - Audio - Chase CH-175 User Manual Sound 5-pin DIN connectors sensitivity for daisy chain linking rotary knob FOOL SWITCH SOUND SPEED Chase speed Footswitch...
  • Page 5: Setup

    To determine the power requirements for a particular fixture, see the label affixed to the back plate of the fixture or refer to the fixture’s specifications chart. • A fixture’s listed current rating is its average current draw under normal conditions. CH-175 User Manual Remove screws Slide switch up or down depending on your line voltage.
  • Page 6: Mounting

    Safety cables should always be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. The CH-175 can also be used for uplighting. The yoke hardware can equally serve as floor stands.
  • Page 7: Operating Instructions

    Connecting the CH-175 for (Master/Slave) operation does not require any menu or setting selections. Simply connect each unit in a daisy like fashion using a CH-DIN20 5 pin DIN cable. Only the first unit in the chain can be controlled by the optional CB-FS footswitch controller.
  • Page 8: Master/Slave Settings

    Only the first unit in the chain can be controlled by the CB-FS footswitch controller. The CH-158 & CH-175 are compatible in this series and can both be linked together. The first unit you choose will control the rest using the CB-FS footswitch controller or in stand-alone mode.
  • Page 9: Appendix

    Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.
  • Page 10: General Troubleshooting

    Check reset switch Check cable connections Remote does not work Make sure connector is firmly connected to device Unit wobbles when Check for damages possibly incurred during shipping rotating CH-175 User Manual Foggers Lights & Snow Appendix Applies to Dimmers Controllers &...
  • Page 11: Technical Specifications

    Maximum ambient temperature...65°C (149° F) FUSE Main (115V) ...20mm Glass 7A 125V Fast Blow Main (230V) ...20mm Glass 5A 250V Fast Blow ORDERING INFORMATION Color Bank 12... CH-175 Fuse 7A ...P170FUSE007 Fuse 5A ...P170FUSE005 OPTIONS Color Bank Footswitch... CB-FS CH-175 User Manual...

This manual is also suitable for:

Color bank 12
