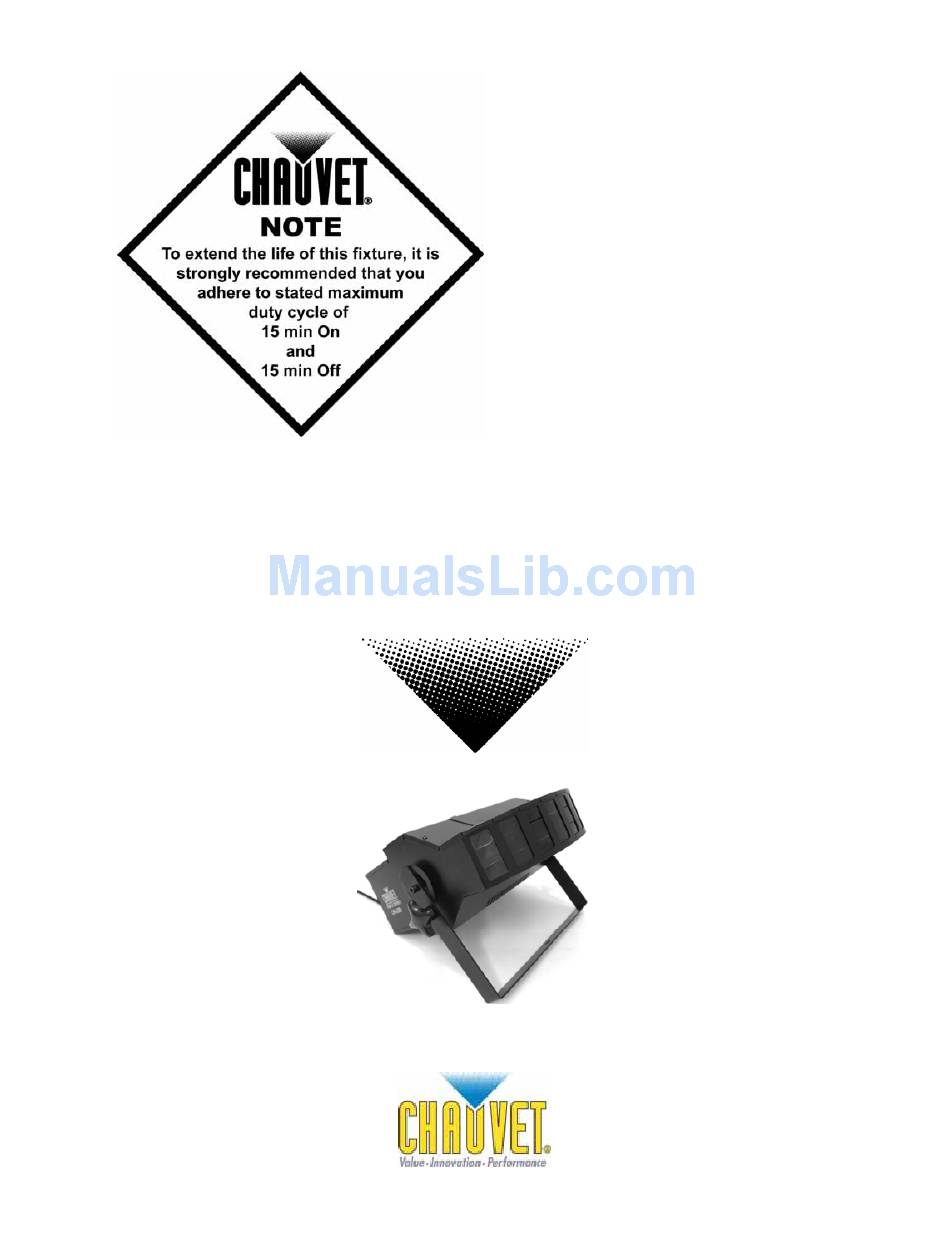

- Page 1 CH-330 Triple Derby™ USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2006-08-25/20:37...
-
Page 2: Table Of Contents
Duty Cycle... 6 APPENDIX... 7 ... 7 ENERAL AINTENANCE ... 7 ETURNS ROCEDURE ... 7 LAIMS ... 8 ENERAL ROUBLESHOOTING 230V O SERIES IRING FOR PERATION ... 9 ECHNICAL PECIFICATIONS ... 9 ECHNICAL UPPORT CH-330 User Manual ... 9 2006-08-25/20:37... -
Page 3: Before You Begin
EFORE EGIN What is included 1 x Triple Derby™ (CH-330) Power cord with plug Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Introduction
• Sound-activated • 24 lenses, 48 beams • Sound Sensitivity knob • Built-in microphone • Safety hook • Fan cooled Product Overview Lamp access Safety hook CH-330 User Manual Hanging bracket Voltage select switch Sound sensitivity knob Fuse Microphone 2006-08-25/20:37... -
Page 5: Setup
• Safety cables should always be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. CH-330 User Manual Hanging Clamp Lamp cover plate 2006-08-25/20:37... -
Page 6: Operating Instructions
For every 15 minute period that the fixture is used, allow 15 minutes in the Off position to cool down. Please do not exceed 15 minutes of On operation per cycle. To learn more about these and other CHAUVET products visit us at www.chauvetlighting.com. CH-330 User Manual... -
Page 7: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 8: General Troubleshooting
Check reset switch Check cable connections Remote does not work Make sure connector is firmly connected to device Unit wobbles when Check for damages possibly incurred during shipping rotating CH-330 User Manual Foggers Lights & Snow Appendix Applies to Dimmers Controllers &... -
Page 9: Lamp (In-Series) Wiring For 230V Operation
THERMAL Maximum ambient temperature... 40° (104° F) FUSE Main (115V) ...20mm Glass 7A 125V Fast Blow Main (230V) ...20mm Glass 5A 250V Fast Blow ORDERING INFORMATION Triple Derby™ ... CH-330 Fuse 7A ...P170FUSE007 Technical Support Address: Support (Email): Telephone: Fax:...
