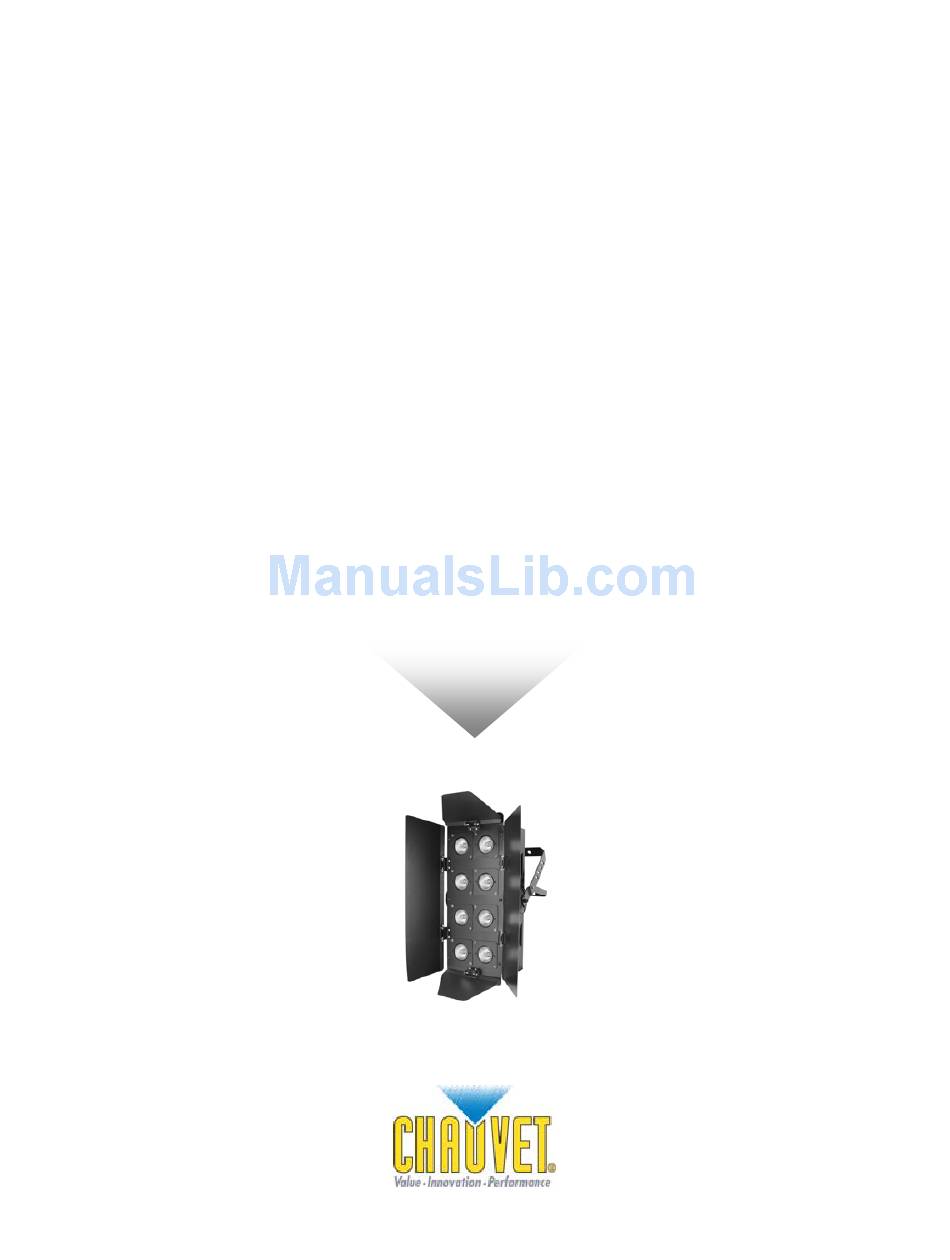

- Page 1 CH-158 Color Bank™ 8 USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com...
-
Page 2: Table Of Contents
Audio Activated... 7 Master/Slave ... 7 Master/Slave settings ... 8 CB-FS Color Bank Footswitch (Optional) ... 8 APPENDIX... 9 ... 9 ENERAL AINTENANCE ... 9 ETURNS ROCEDURE ... 9 LAIMS ... 10 ENERAL ROUBLESHOOTING ... 11 ECHNICAL PECIFICATIONS CH-158 User Manual 2004-09-20/13:25... -
Page 3: Before You Begin
EFORE EGIN What is included 1 x CH-158 with hanging brackets and knobs Power cord with plug Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Introduction
Product Overview Barn doors Channel LED indicator 5-pin DIN connectors Rear Panel for daisy chain linking Chase speed rotary knob CH-158 User Manual Front Panel Power connector & fuse capsule Voltage switch 220V 110V Mode LED indicator - Full ON... -
Page 5: Setup
Verify that the power select switch on your unit matches the line voltage applied. All fixtures must be connected to circuits with a suitable Earth Ground. CH-158 User Manual Remove screws Slide switch up or down depending on your line voltage. -
Page 6: Mounting
CH-158 User Manual Double brackets are provided for floor positioning of the CH-158 to provide uplighting. The CH-158 comes with a pipe mounting system to fit sizes between ½” to ¾”. A standard lighting tripod stand should fit. Setup Hanging Clamp... -
Page 7: Operating Instructions
Connecting the CH-158 for (Master/Slave) operation does not require any menu or setting selections. Simply connect each unit in a daisy like fashion using a CH-DIN20 5 pin DIN cable. Only the first unit in the chain can be controlled by the optional CB-FS footswitch controller. -
Page 8: Master/Slave Settings
Only the first unit in the chain can be controlled by the CB-FS footswitch controller. The CH-158 & CH-175 are compatible in this series and can both be linked together. The first unit you choose will control the rest using the CB-FS footswitch controller or in stand-alone mode. -
Page 9: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 10: General Troubleshooting
Check reset switch Check cable connections Remote does not work Make sure connector is firmly connected to device Unit wobbles when Check for damages possibly incurred during shipping rotating CH-158 User Manual Foggers Lights & Snow Appendix Applies to Dimmers Controllers &... -
Page 11: Technical Specifications
Maximum ambient temperature... 65° (149° F) FUSE Main (115V) ...20mm Glass 5A 125V Fast Blow Main (230V) ...20mm Glass 3.15A 250V Fast Blow ORDERING INFORMATION Color Bank 8... CH-158 Fuse 5A ...P170FUSE005 Fuse 3A ...P170FUSE003 OPTIONS Color Bank Footswitch... CB-FS...
