Summary of Contents for Chauvet CH-302A

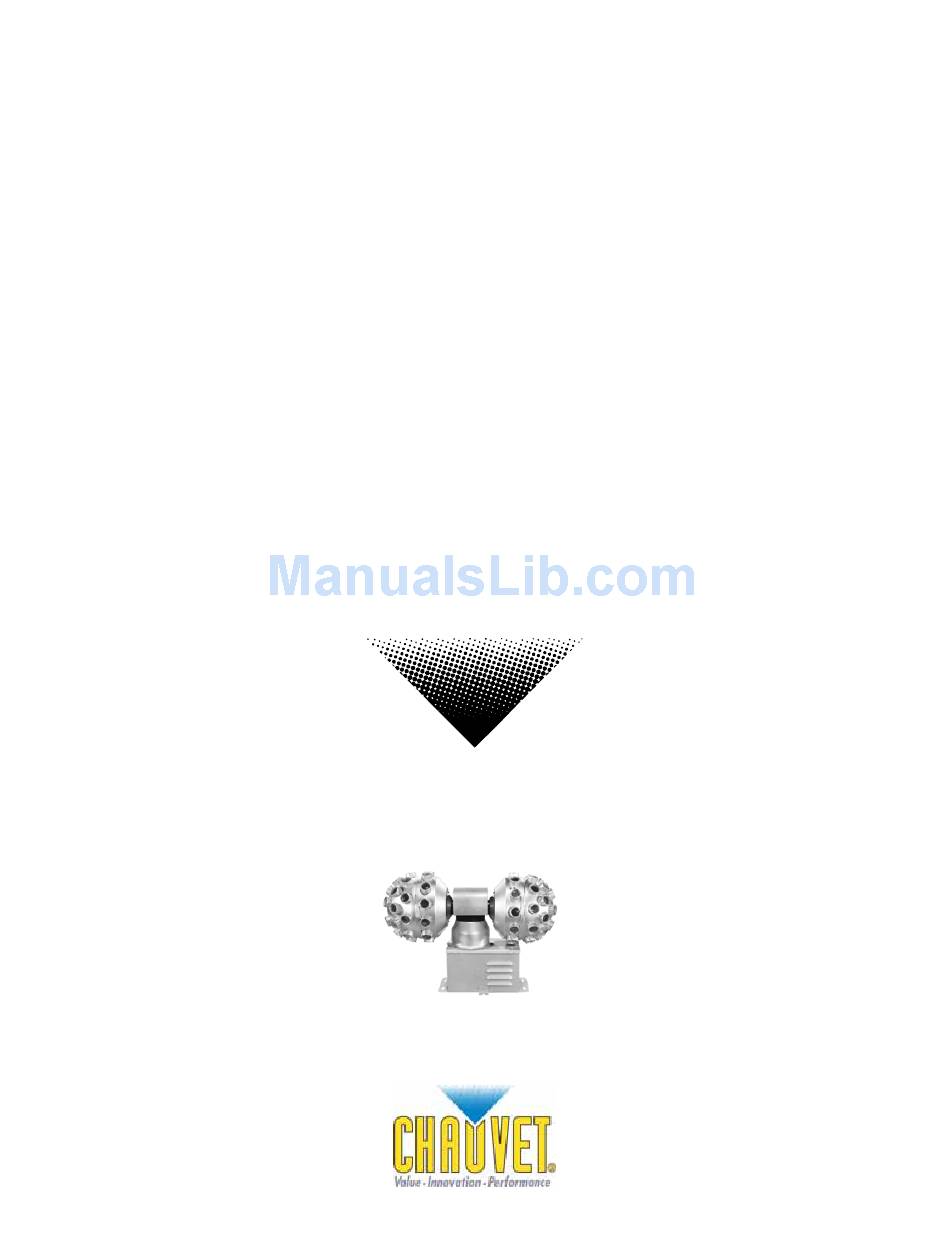

- Page 1 CH-302A Cosmos 2.0 USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com...
-
Page 2: Table Of Contents
G eneral operation ... F lash On/Off & Rotary knob... R otation rotary knob ... C ON-EF2 Wired Remote (Optional) ... APPENDIX ... ENERAL AINTENANCE ETURNS ROCEDURE LAIMS ENERAL ROUBLESHOOTING 230V O SERIES IRING RAWING FOR ECHNICAL PECIFICATIONS CH-302A User Manual PERATION 8/28/2006/17:57... -
Page 3: Before You Begin
EFORE EGIN What is included 1 x Cosmos 2.0 (CH-302A), (2) Dome covers, (2) Disc covers Power cord with plug Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Introduction
Dome fixture cover Mounting plate with clamp attachments Power input Voltage-select switch Variable flash rotary knob CH-302A User Manual • on-board control features flash/full-on (switch) flash speed (knob) rotation speed (knob) • optional wired remote • 360° rotation on both axis •... -
Page 5: Setup
Safety cables should always be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. CH-302A User Manual Slide switch up or down depending on your line voltage. Hanging Clamp... -
Page 6: Operating Instructions
Cosmos 2.0. This optional controller would provide the user the ability to shift from fast rotations with flash for faster rhythms to slow rotation and no flash for ballads or mood remotely. To learn more about other CHAUVET products visit us at www.chauvetlighting.com. CH-302A User Manual 8/28/2006/17:57... -
Page 7: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 8: General Troubleshooting
Check reset switch Check cable connections Remote does not work Make sure connector is firmly connected to device Unit wobbles when Check for damages possibly incurred during shipping rotating CH-302A User Manual Lights Foggers & Snow Appendix Applies to Controllers Dimmers &... -
Page 9: Lamp (In-Series) Wiring Drawing For 230V Operation
FUSE (115V) Main ... 20mm Glass 10A Fast Blow – F10A 125V (230V) Main ... 20mm Glass 7A Fast Blow – F7A 250V ORDERING INFORMATION Cosmos 2.0 ... CH-302A OPTIONS Cosmos 2.0 Wired Controller ... CON-EF2 Fuse 10A ...P170FUSE010 Fuse 7A ...P170FUSE007...
