Operation

Once the HM220d ADSL modem has been properly connected and configured, simply
open your Internet browser and you are instantly on-line. No logon procedures are
necessary. The modem should be left on at all times; there is no need to turn it on and off,
since PipeLock guarantees your security when you are not using the Internet.
The HM220d ADSL modem operates automatically and will rarely, if ever, require any
intervention from you. There are some special features of the modem, such as the
PipeLock, with which you should be familiar. You may also want to know more about
the modem LEDs, which indicate the current operating state and provide useful
diagnostic information.
6.1

Modem LED indicator description

Looking at the top of the HM220d ADSL modem, you will see five light-emitting diodes
(LEDs) along the left side of the unit.

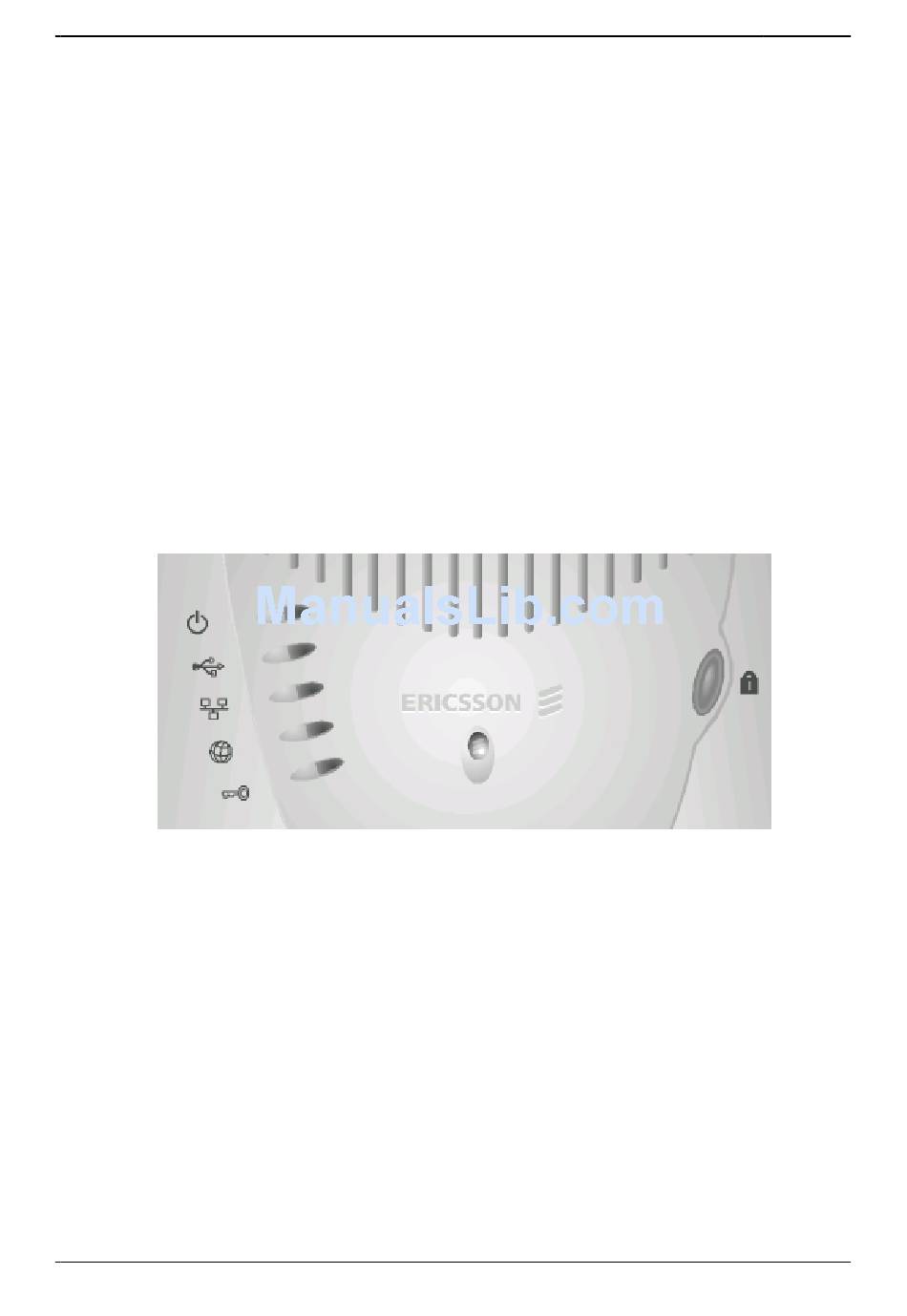

Figur 61: LEDs on HM220d ADSL modem
These LEDs indicate the current state of the modem and provide useful diagnostic
information. Although the functions of the LEDs depend upon the operational state of the
modem, the general purpose of each is described in the table below. Each LED can be
ON (lit), OFF (unlit), flashing at a certain rate or blinking periodically to indicate activity.
The general purpose of each LED is described in the table on the next page.
