2.4.9 Sensors Tab (Model XRDI-WS3P only)
This tab is used to configure temperature/humidity sensors and associated alarms. WebSwitch Plus™
will automatically detect whether a temperature or humidity sensor is connected.

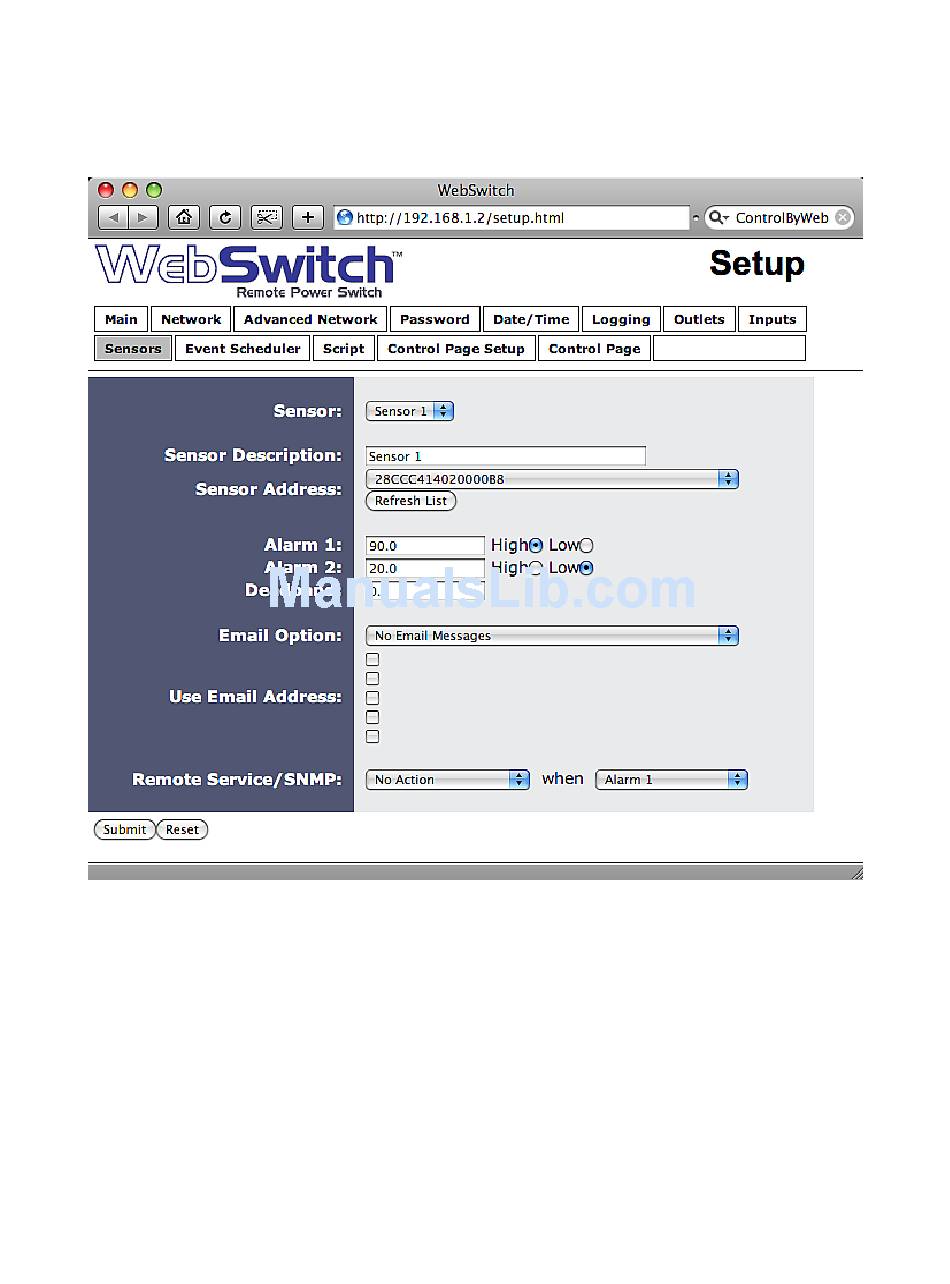

Figure 2.4k- Sensors Tab
Sensor
Up to three sensors can be connected to WebSwitch Plus™. This drop-down list selects the sensor
to be configured. The fields below are the same for each sensor.
Sensor Description
The text in this field appears to the left of the corresponding temperature/humidity reading on the
Control Page. This text also appears in the email status message when email is enabled. This field
can be up to 24 characters in length. The default text in this field is Sensor #.
Sensor Address
Each sensor connected to WebSwitch Plus™ should be associated (or assigned) to a sensor
number. This identifies the name, location, and function of the sensor. Every temperature/humidity
