Xytronix Research & Design WebSwitch XRDI-WS3 User Manual page 24

Revision 1.1
Step 3: Right click on the icon labeled Local Area Connection. In the menu that follows, select the option
at the bottom of the menu labeled Properties. The Local Area Connection Properties window will appear.
Scroll down to and highlight "Internet Protocol (TCP/IP)," then click the button labeled
Step 4: The following "Internet Protocol (TCP/IP)" Properties menu appears:
Xytronix Research & Design, Inc.

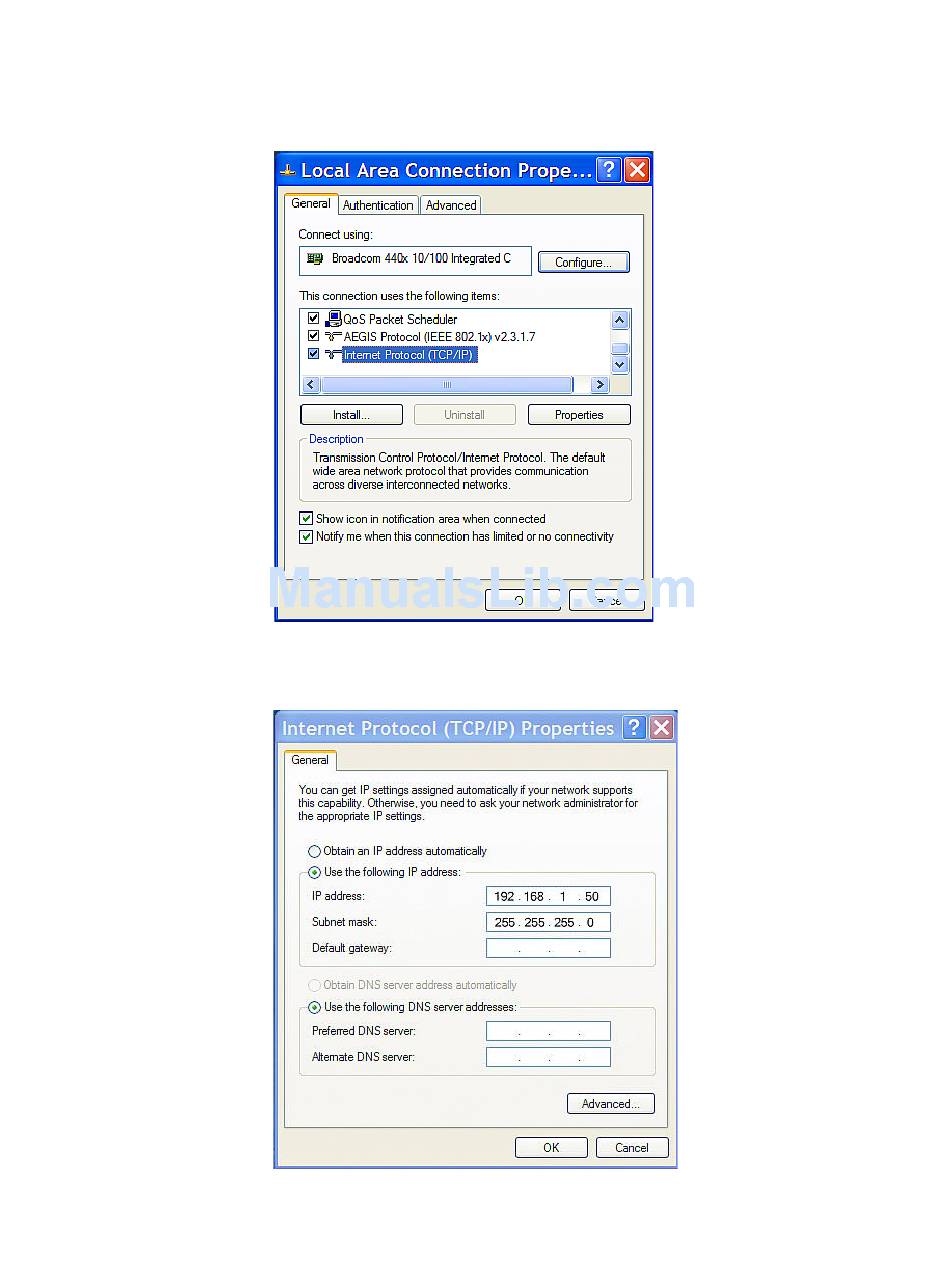

Figure 2.3e- Local Area Connection
Figure 2.3f- TCP/IP Properties
WebSwitch™ Users Manual
"Properties."
23
