2.4.3 Advanced Network Tab

Note: These settings are not used for most installations.

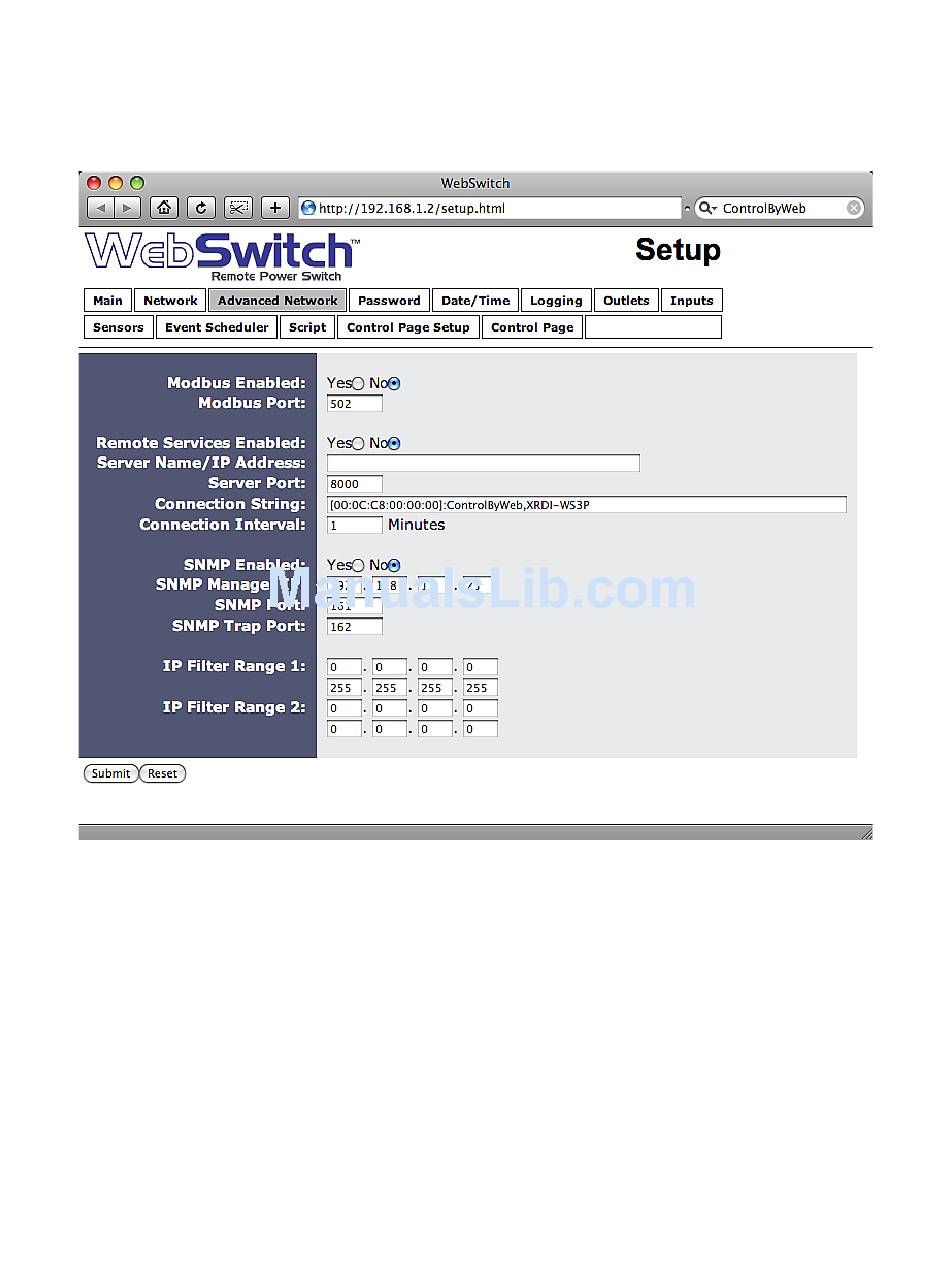

Figure 2.4c- Advanced Network Tab
Modbus:
Modbus Enabled
WebSwitch™ can support Modbus/TCP. Modbus is a messaging structure protocol used in industrial
manufacturing control and automation. It is an open protocol and offers interoperability with software
and devices from other manufacturers. This is enabled by selecting Yes in this field. The default
setting for this field is No.
Note: Modbus communications are disabled whenever the control password is enabled.
Modbus Port
This specifies the port used for Modbus/TCP communications with WebSwitch™. By default this is
set to port 502 which is the standard Modbus port. It can be set within the range of 0 to 65535.
