Nordyne Q3B Series User's Manual And Installation

USER'S MANUAL AND INSTALLATION
INSTRUCTIONS

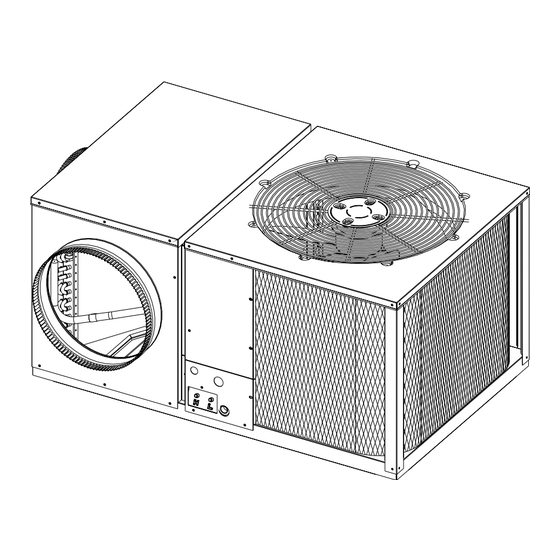

Q3B (A,C) Series 10 and 12 SEER
Single Package Heat Pump
Single Package Heat Pump
Read this owner information to become familiar with the capabilities and use of
your appliance. Keep this with literature of other appliances where you have easy
access to it in the future. If a problem occurs, check the instructions and follow
recommendations given. If these suggestions don't eliminate your problem, call
your installing contractor or distributor in your area.
INTRODUCTION
Your heat pump is a unique, all weather com-
fort-control system appliance. The basic op-
eration of the heating/cooling system is de-
scribed on page 2 of this manual. The surpris-
ing fact that heat exists in air even at below-
freezing temperatures is actually the basic law
of physics which the heat pump uses to
provide energy saving heating comfort. At
outdoor temperatures of 47° Fahrenheit (or 8°
IMPORTANT
Celsius), your heat pump can deliver approxi-
mately 2 to 3 units of heat energy per each unit
of electrical energy used, as compared to a
maximum of only 1 unit of heat energy pro-
duced with conventional heating systems.
During the cooling season, the heat pump
reverses the flow of the heat-absorbing refrig-
erant to become an energy-efficient, central
air conditioner.
