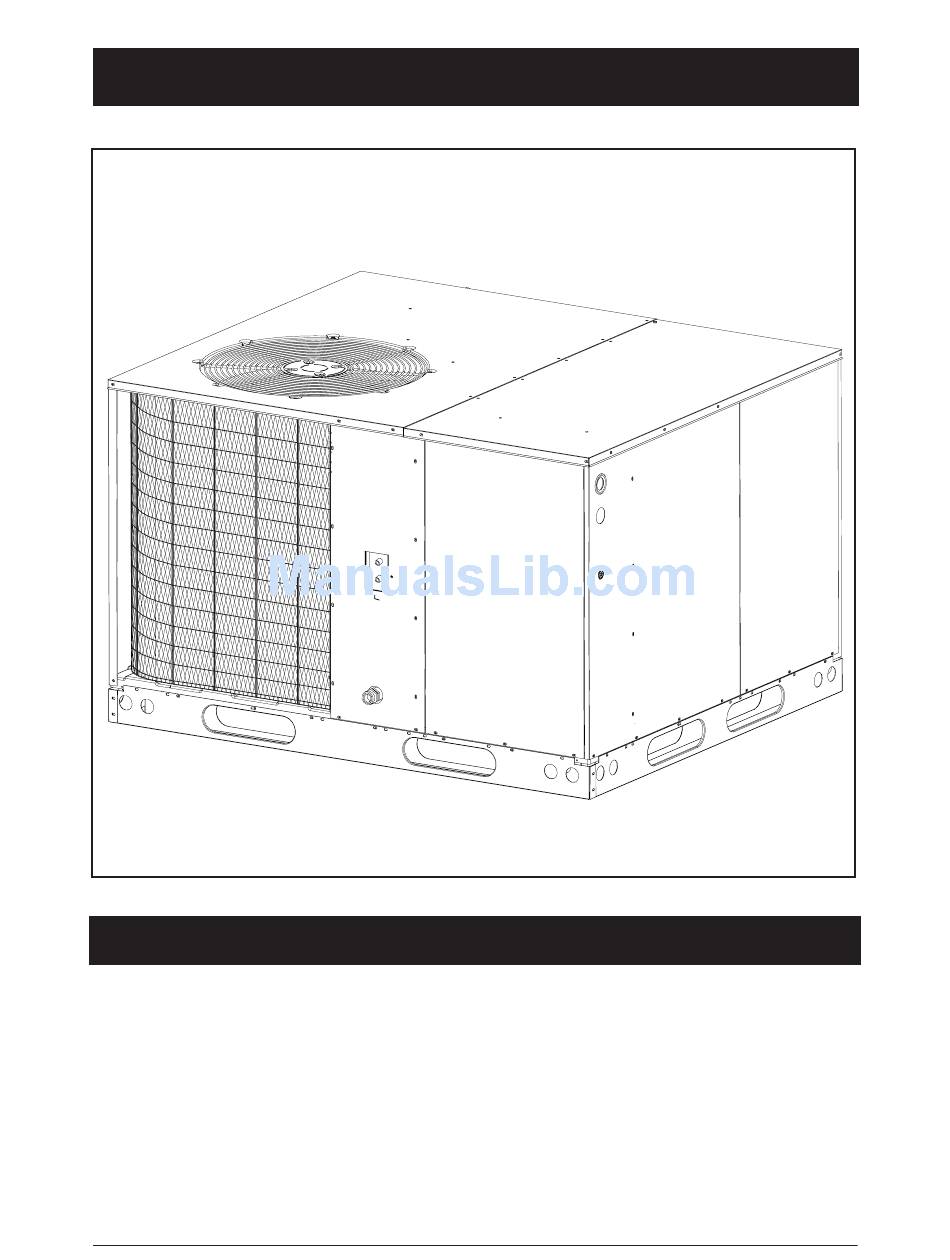

Single Package Heat Pump
Installation Instructions
IMPORTANT
These instructions are primarily intended to assist qualifi ed individuals expe-
rienced in the proper installation of heating and/or air conditioning appliances.
Some local codes require licensed installation/service personnel for this type
equipment. All installations must be in accordance with these instructions and
with all applicable national and local codes and standards.
Read these instructions thoroughly before starting the installation. Follow all
precautions and warnings contained within these instructions and on the unit.
