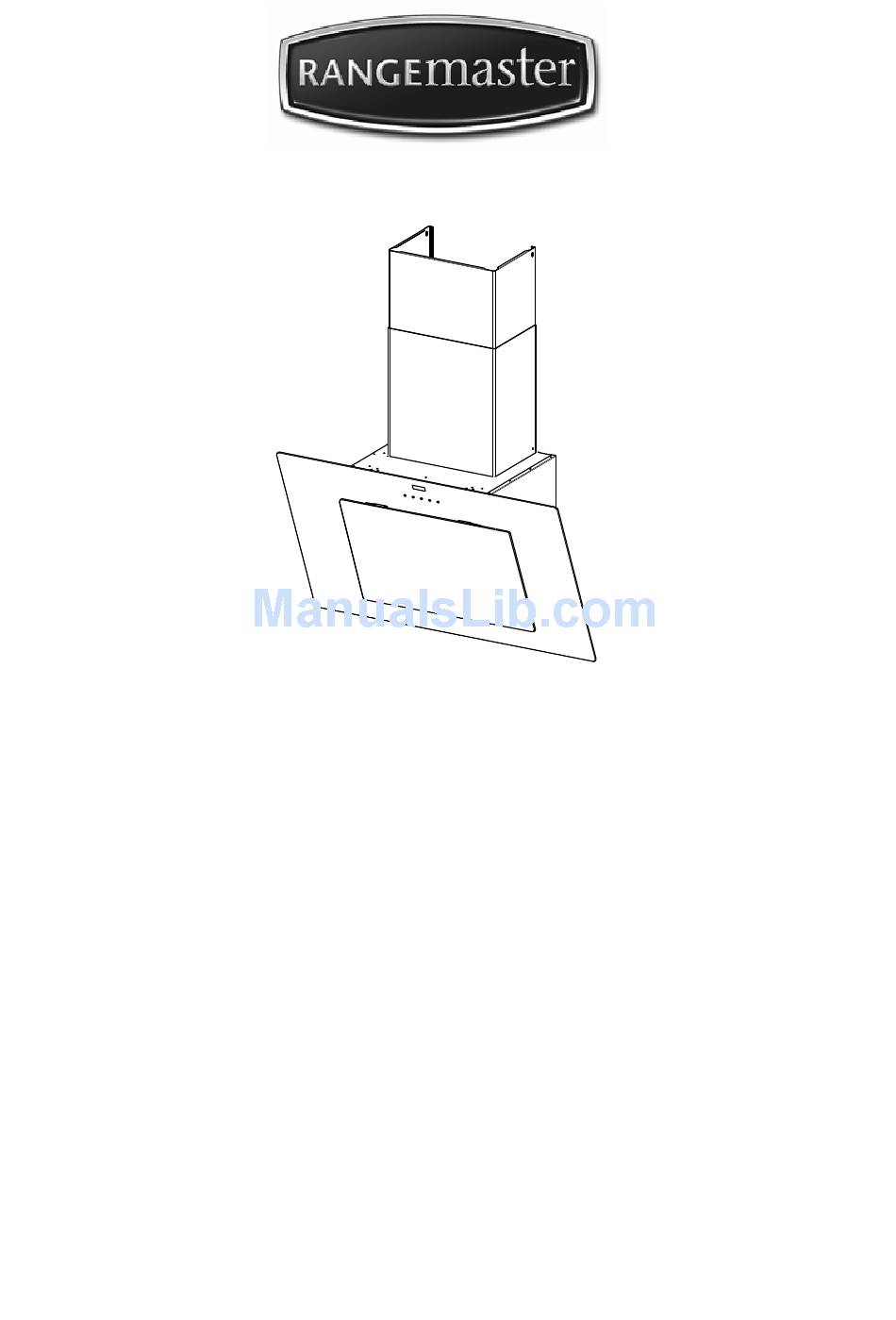

- Page 1 OPLHD60 – OPLHD90 – OPLHD100 – OPAL HOOD Instructions Manual www.rangemaster.co.uk...
-
Page 2: Table Of Contents
INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS ................................4 INSTALLATION..................................5 USE ......................................8 MAINTENANCE ..................................9... -
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. -
Page 4: Characteristics
CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Upper Section Lower Section Directional Air Outlet grille Reducer Flange ø 150 – 120 mm Adapting ring ø 120-125 mm Angle iron Filter cover Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets... -
Page 5: Installation
INSTALLATION Wall drilling and bracket fixing As a first step, proceed with the following drawings: • a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the hood is to be fitted; •... - Page 6 Fitting the hood body • Open the doors/the door (See section Open Panels). • Remove the Metal grease filters using the handles provided. • Adjust the two screws Vr, in the brackets 11a, so that they are at the start of their travel. •...
- Page 7 Recirculation Version Air Outlet To install the Recirculation Version of the hood, the Activated charcoal filter must be fitted, see paragraph “ Activated charcoal filter (Recirculation version)”. • Screw the filter cover onto the air outlet, using four screws 12c (2.9 x 12.5).
-
Page 8: Use
Control panel Button Function Turns the Motor off. Turns the motor on at speed one Buttons T1+T2 are on. Turns the Motor on at speed two Buttons T1+T3 are on. Press and hold for 2 seconds to enable The respective buttons T1+ shutdown with a 20 minute delay (Mo- (T2 or T3 or T4) will flash. -
Page 9: Maintenance
MAINTENANCE Opening Panel • Open the Panel by pulling it. • The panel can be locked in any position. • Clean the outside with a damp cloth and neutral detergent. • Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water;... - Page 10 Activated charcoal filter (Recirculation version) These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage. REPLACING THE ACTIVATED CHARCOAL FILTER • Open the comfort panels pulling them downwards. •...
- Page 12 AGA RANGEMASTER GROUP PLC 991.0301.958_ver4...
