Graco MAGNUM 261800 Operation Manual

Graco MAGNUM 261800 Operation Manual

Airless sprayer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operation

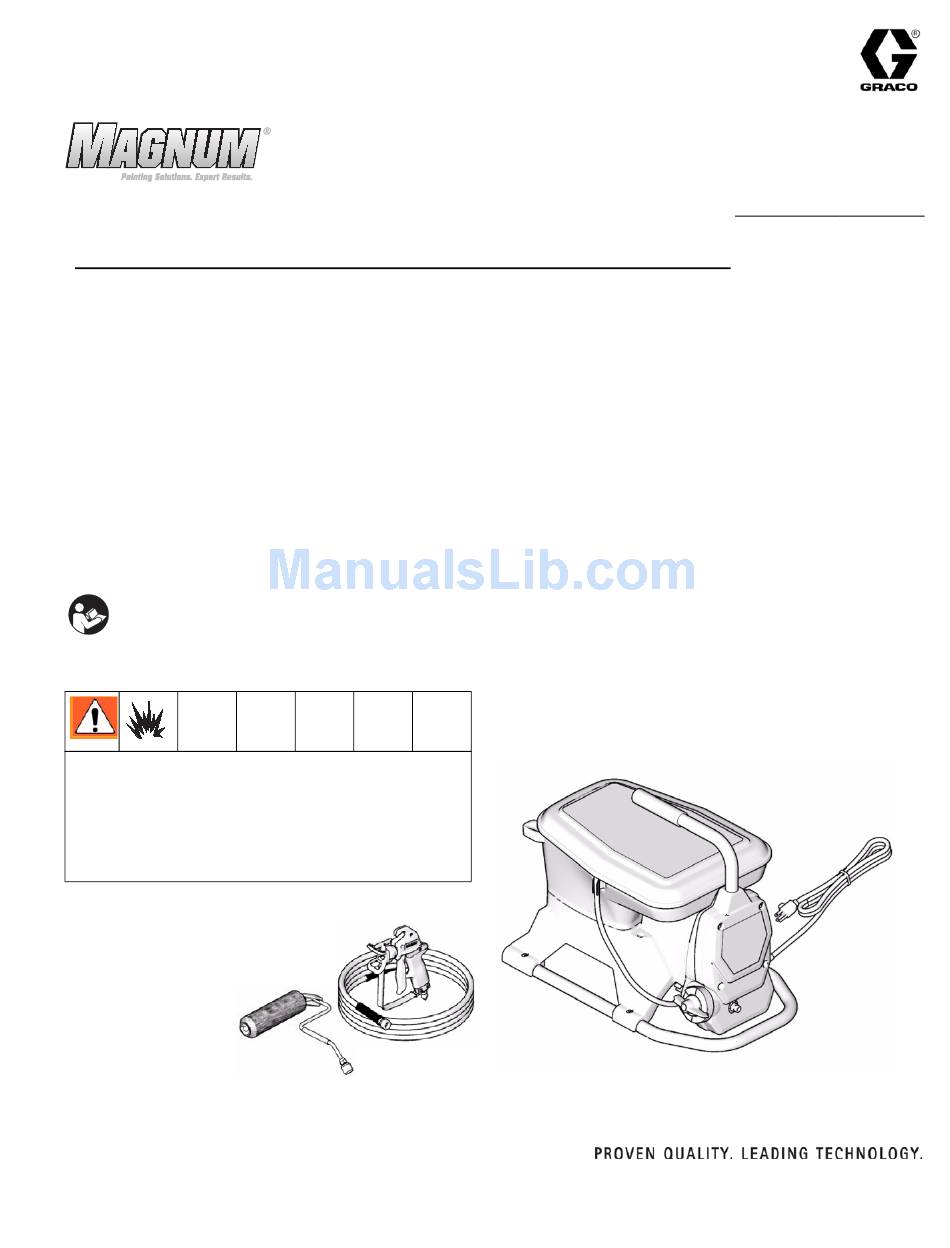

Project Painter 5 Airless Sprayer
For portable spray applications of architectural paints and coatings
Model: 261800
Maximum Working Pressure: 2800 psi (19 MPa, 193 bar)
Dispense Rate: 0.24 gpm (0.91 lpm)
Includes:
Gun: SG10
Hose: 1/4 inch x 25-ft. (6.4 mm x 7.5 m)
9 inch Pressure Roller Attachment
IMPORTANT SAFETY INSTRUCTIONS.
Read all warnings and instructions in this
manual. Save these instructions.
Use water-based or mineral spirit-type
materials only. Do not use materials having
flash points lower than 70°F (21°C). For
more information about your material
request MSDS from distributor or retailer.
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2007, Graco Inc. is registered to I.S. EN ISO 9001
ti9208a
ti9338a
The manual provided with this
sprayer contains
English and
Visit our website;
http://M
Specifications
This equipment is not intended for use
with flammable or combustible
materials used in places such as
cabinet shops or other "factory" or fixed
locations. If you intend to use this
equipment in this type of application,
you must comply with NFPA33 and
OSHA requirements for the use of
flammable and combustible materials.
Español.
.Graco.com
AGNUM
312079A
ti91915a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAGNUM 261800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco MAGNUM 261800

Summary of Contents for Graco MAGNUM 261800

  • Page 1 MSDS from distributor or retailer. ti9338a Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441 Copyright 2007, Graco Inc. is registered to I.S. EN ISO 9001 Specifications This equipment is not intended for use with flammable or combustible materials used in places such as cabinet shops or other “factory”...
  • Page 2 Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equip- ment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. Refer back to these warnings. Additional, product specific warnings may be found throughout the body of this manual where applicable.
  • Page 3 Graco replacement parts only. • Do not alter or modify equipment. • Use equipment only for its intended purpose. Call your Graco distributor for informa- tion. • Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

  • Page 4: Installation

    Installation Grounding and Electric Requirements Sprayer must be grounded. Grounding reduces the risk of static and electric shock by providing an escape wire for electrical current due to static build up or in the event of a short circuit. • The 120 Vac sprayers require a 120 Vac, 60 Hz,...

  • Page 5: Component Identification

    Component Identification Project Painter 5 ™ AllControl Pump fluid outlet fitting Suction tube Prime tube (with diffuser) Inlet screen Inlet screen handle Hopper cover Pour spouts Hopper Tip holder Hopper handle Paint tray Disposable hopper liner Practice Spray Board ™ Power Flush attachment Paint hose...
  • Page 6 ti9305a ti9374a ti9306a ti9724a ti9301a ti9168a ti9338a Bottom view and position for direct immersion mode Component Identification ti9533a ti9208a ti9257a ti9294a 312079A...

  • Page 7: Getting Started

    Getting Started Pressure Relief Procedure Follow this Pressure Relief Procedure when you stop spraying and before cleaning, checking, ser- vicing, or transporting equipment. 1. Set AllControl to OFF. Unplug sprayer. 2. Hold gun firmly to the side of a pail. Trigger the gun to relieve pressure.
  • Page 8 ™ AllControl Settings STORAGE - long term and overnight shutdown and storage HI SPRAY - uses high pressure to direct fluid to spray gun SETTING INDICATOR - selects function LOW SPRAY - uses low pressure to direct fluid to spray gun Setup Project Painter 5 can be used as either a hopper or direct immersion sprayer.
  • Page 9 6. Connect other end of hose to sprayer (a). Use two wrenches to tighten securely. If hose is already connected, make sure con- nections are tight. 7. Push down on bend of handle and pivot 90°. Remove cover. ti9290a 8. Unclip drain tube from side of hopper and place in waste pail.
  • Page 10 2. Fill hopper with water or compatible flushing solvent. 3. Plug sprayer in a grounded outlet. 4. Turn AllControl to PRIME/CLEAN PUMP. 5. When sprayer starts pumping, water or flushing solvent and air bubbles will be purged from the system. Allow fluid to drain out of prime tube, into waste pail, until all fluid has drained out of...
  • Page 11 Direct Immersion Setup (Alternate Spray Method) 1. Set AllControl to OFF. 2. Push down on bend of handle and pivot 90°. Remove cover. ti9290a 3. Use inlet screen handle to unscrew and remove inlet screen from hopper. 4. Unclip drain tube from side of hopper.
  • Page 12 Priming and Flushing Storage Fluid (Direct Immersion Method) Before you use your sprayer for the first time or begin a new spraying project, you need to prime the sprayer and flush the storage fluid out of the sprayer. Oil- or Water-based Materials •...
  • Page 13 d. set AllControl to PRIME/CLEAN GUN & HOSE. 11. Continue to trigger into waste pail until you see only paint coming out of gun. 12. Release trigger. Engage trigger lock. 13. Transfer drain tube to paint pail and clip prime tube to suction tube.

  • Page 14: Spraying Techniques

    Spraying Techniques Preventing Excessive Tip Wear • Spray should be atomized (evenly distributed, no gaps at edges). Start at low pressure set- ting, increase pressure a little at a time until you see a good spray pattern, without tails. • Spray at lowest pressure that atomizes paint.

  • Page 15: Tip Selection

    Choosing the Correct Tip for the Job Consider coating and surface to be sprayed. Make sure you use best tip hole size for that coating and best fan width for that surface. Tip Selection Selecting Tip Hole Size • Tip hole size controls flow rate - the amount of paint that comes out of the gun.

  • Page 16: Reversible Tip Selection Chart

    Understanding Tip Number The last three digits of tip number (i.e.: 221413) contain information about hole size and fan width on surface when gun is held 12 in. (30.5 cm) from surface being sprayed. First digit when doubled = approximate 413 tip has fan width 8-10 in.

  • Page 17: Getting Started With Basic Techniques

    Getting Started With Basic Techniques Use the Practice Spray Board to practice these basic spraying techniques before you begin spraying the surface. • Hold gun 12 in. (30 cm) from surface and aim straight at surface. Tilting gun to direct spray angle causes an uneven finish.
  • Page 18 Rolling Setup • Before assembling roller, follow Priming instructions, beginning on page 9 for Hopper Method or page 12 for Immersion Method. • After priming, only paint should come out of spray gun. Water in hose line will cause paint to run.
  • Page 19 Rolling Techniques 1. Rolling vertically, roll out the letter “M”. 2. Cross roll, horizontally, to spread paint. 3. Finish with light, vertical strokes until the entire area has been covered evenly. 312079A Ceilings, Walls and Woodwork 1. Ceilings: Using a paint brush, apply a starting row of paint approximately the width of your paint brush...
  • Page 20 Shutdown & Cleaning - After Hopper Method Applications • For short term shutdown periods (overnight to one week) refer to Short Term Storage, page • For flushing after spraying oil-based coatings, use compatible oil-based flushing fluid or min- eral spirits. •...
  • Page 21 13. To preserve paint in hose: a. Add enough water or cleaning solvent to refill hopper. Point gun into paint pail. b. Unlock gun trigger lock. c. Pull and hold gun trigger. d. Turn AllControl to PRIME/CLEAN GUN & HOSE. Continue to hold gun trigger until you see paint diluted with flushing fluid starting to come out of gun.

  • Page 22: Power Flush

    Power Flush Power flushing is a faster method of flushing. It can only be used after spraying water-based coatings. 1. Relieve pressure, page 7. 2. If you used a spray gun, remove tip and guard assembly from gun and place in flushing fluid. If you used a roller, leave roller assembly attached to gun.
  • Page 23 15. To preserve paint in hose: a. Point gun into paint pail. b. Unlock gun trigger lock. c. Pull and hold gun trig- ger. d. Turn AllControl to PRIME/CLEAN GUN AND HOSE. e. Continue to hold gun trigger until you see paint, diluted with water starting to come out of gun.

  • Page 24: Pail Flushing

    Shutdown & Cleaning - After Direct Immersion Method Applications Pail Flushing • For short term shutdown periods (over- night to one week) refer to Short Term Storage, page 29. • For flushing after spraying oil-based coat- ings, use compatible oil-based flushing fluid or mineral spirits.
  • Page 25 Step 12 is for returning paint in hose back to paint pail. One 25-ft (7.5 m) hose holds approximately 1-pint (0.5-liter) of paint. 12. To preserve paint in hose: a. Point gun into paint pail. b. Unlock gun trigger lock. c.
  • Page 26 Power Flush Power flushing is a faster method of flushing. It can only be used after spraying water-based coatings. 1. Relieve pressure, page 7. 2. If you used a spray gun, remove tip and guard assembly from gun and place in flushing fluid. If you used a roller, leave roller assembly attached to gun.
  • Page 27 Step 15 is for returning paint in hose back to paint pail. One 25-ft (7.5-m) hose holds approximately 1-pint (0.5-liter) of paint. 15. To preserve paint in hose: a. Point gun into paint pail. b. Unlock gun trigger lock. c. Pull and hold gun trigger. d.

  • Page 28: Cleaning Roller

    Cleaning Roller 1. Relieve Pressure, page 7. 2. Remove roller cover (a) and core (b) from roller frame (c) as follows: a. Using your thumb, press clip (d) to release roller. b. Remove cap (e) from core (b). It may be necessary to use a screwdriver to remove cap from core.

  • Page 29: Short-Term Storage

    Storage Short Term Storage (up to 2 days) 1. Turn AllControl to OFF. Pause 2-3 seconds to allow pressure to be relieved, then turn to STORAGE. Pause 2-3 Seconds ti9168a 2. Engage trigger lock. 3. Leave gun attached to hose. 4.

  • Page 30: Stowing Sprayer

    Stowing Sprayer Be sure to turn AllControl to OFF and pause 2 - 3 seconds before turning to STORAGE to relieve pressure in the system. CAUTION • Before storing sprayer make sure all water is drained out of sprayer and hoses. •...

  • Page 31: Troubleshooting

    Troubleshooting Check everything in this Troubleshooting Table before you bring the sprayer to a Graco/M rized service center. Problem Power is on and sprayer is plugged in, but motor does not run, and pump does not cycle. Pump does not prime.
  • Page 32 Problem Pump does not prime. Spray gun stopped spraying. Pump cycles but does not build up pressure. Pump cycles, but paint only dribbles or spurts when spray gun is trig- gered. Spray pattern is inconsistent or is leaving stripes. Pressure is set at maximum but can- not achieve a good spray pattern.
  • Page 33 • Replace extension cord. Rotate trigger safety lever to unlock position, page 7. Rotate arrow-shaped handle on spray tip so it points forward in SPRAY position, page 14. Take sprayer to Graco/M AGNUM authorized service center. Replace pump packings.

  • Page 34: Maintenance And Service

    When pump packings wear, paint will begin to leak down outside of pump. Replace pump packings at first sign of leaking or additional damage could occur. Get a pump repair kit and install according to instruction on kit packaging. Consult a Graco/M authorized service center. AGNUM 312079A...

  • Page 35: Technical Data

    Technical Data Working pressure range 0-2800 psi (0-19 MPa, 0 -193 bar) Electric motor 6.3 AMP (open frame, universal) Operating horsepower Maximum delivery (with 0.24 gpm (0.91 lpm) tip) Paint hose 1/4 in. x 25 ft (6.4 mm x 7.5 m) Maximum tip hole size 0.015 in.

  • Page 36: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
