Instructions
®
Matrix

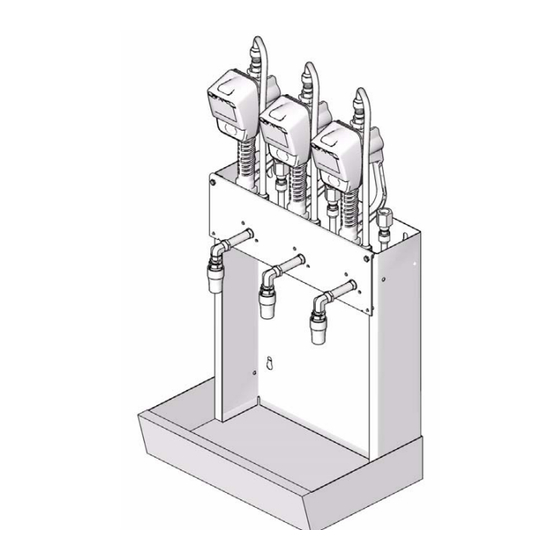

Meter Oil Bar
Model No.: 255370 - Configures Matrix 5 or Matrix 15 Meters for Oil Bar
Installation
Model No.: 256719 - Oil Dispenser Bar
Model No.: 257556 - Front Panel Kit
Important Safety Instructions
Read all warnings and instructions in this manual
and the Matrix meter instruction manual 313046.
Save these instructions.
5 or Matrix
- For fixed mounting of Matrix Meters -
®
15
313013C

Advertisement

loading
Need help?

Need help?

Do you have a question about the Matrix 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco Matrix 5

Summary of Contents for Graco Matrix 5

  • Page 1 Meter Oil Bar 313013C - For fixed mounting of Matrix Meters - Model No.: 255370 - Configures Matrix 5 or Matrix 15 Meters for Oil Bar Installation Model No.: 256719 - Oil Dispenser Bar Model No.: 257556 - Front Panel Kit...

  • Page 2: Installation Instructions

    Installation Instructions All Matrix Meters and Oil Bar Installations The following Steps 1- 10 are for first time installa- 3. Install o-ring (16) on bulk head fitting (3) as shown in tions only. Refer to Parts, pages 9 and 10 for refer- .
  • Page 3 6. Install fitting (4) in meter outlet (F . 6). Snug fitting correctly oriented for installation in the oil bar as with a wrench. shown in F . 7. c. Install nut (11) (F . 8). Finger tighten. ti12205a ti12221a 7.
  • Page 4 9. Install fluid inlet tube (1) at a 45° angle to meter as 2. Position manifold (14) inside oil bar, orienting open- shown in F . 10. ing (b) on the front of the manifold with the opening (c) in the front panel (107) as shown in F .
  • Page 5 4. Install meter in oil bar housing. 6. Attach fluid outlet tube (2) to fitting adapter (5) on manifold (14) and fluid outlet fitting (4) (F . 16). Fin- Bracket (8) should fit between manifold (14) and the ger tighten both fittings until they are securely front panel (107) and notch (e) fits over threads on attached.

  • Page 6: Battery Replacement

    8. Wrap threads of nipple adapter (13) with PTFE Battery Replacement tape. • If you cannot remove the battery cover from the meter following this battery replacement proce- dure, you will have to completely remove the meter from the oil bar to replace the batteries. •...
  • Page 7 2. Install four NEW batteries. Refer to F . 22 for 2. Place a container under the drain valve. Pull meter proper battery orientation in meter. Be sure they are trigger to dispense as much of the fluid remaining in installed correctly or the meter will not function.
  • Page 8 4. Disconnect fluid outlet tube (2) at both meter 6. Only remove top screw (12) and washer (9) (F adapter (4) and manifold fitting (5). Place a rag 27). under the tube to catch any drops of oil that may still be in the tube and drip out.
  • Page 9 Parts Parts Meter Kit: 255370 Part Description 121074 TUBE, inlet 121075 TUBE, outlet 121076 FITTING, bulkhead 121077 FITTING, 37 flare x orb 121078 FITTING, adapter, 37 flare x npt 121079 SWIVEL, elbow orb x npsm 121080 ADAPTER, 37 flare x npt 121081 BRACKET, mounting 100016 WASHER, lock 100071 NUT, hex...
  • Page 10 181318 PAN, drain All written and visual data contained in this document reflects the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice. This manual contains English. MM 313013...
