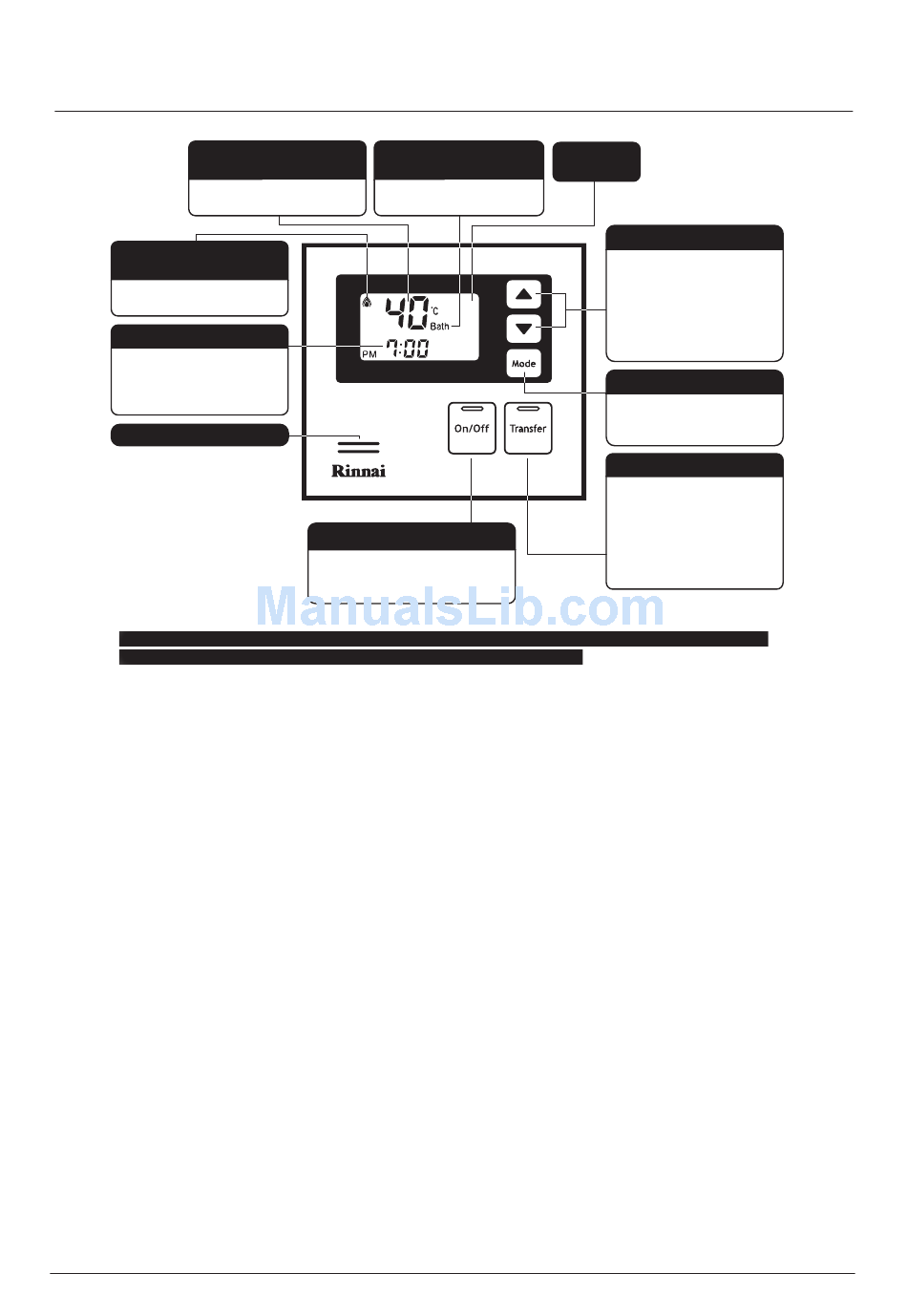

Kitchen Deluxe Controller

WATER TEMPER ATURE
Indicates the selected hot water
WATER HEATER
'In Use' INDICATOR
Indicates the water heater is in
operation and delivering hot water.
CLOCK
12 Hour AM/PM clock display.
In the event of a fault, error
messages will flash here.
SPEAKER
The Kitchen Deluxe Controller is not water resistant, avoid direct exposure to
water or steam as these conditions may cause damage.
If the water controller is switched off (no digits displayed in the digital
Turning on
window) press the On/Off button once.
The On indicator will illuminate, indicating the continuous flow water heater
will be ready to supply hot water once a hot water tap is opened.
If more than one controller is fitted press the 'Transfer' button once to
transfer priority to the desired controller.
The clock is a 12 hour AM/PM display. To set the time press the 'Mode'
Setting the
button twice. In the digital monitor the word 'Clock' will be displayed and
clock
the clock digits will flash, if this is the first time the clock has been set the
starting time will be AM 12:00.
Use the up and down buttons to select the desired time. Holding these
buttons down continuously cycles the digits. When you get close to the time
you wish to set, press the button intermittently to avoid going further than
the desired time.
To return to normal mode, press the 'Mode' button once. If no buttons are
pressed for approximately 10 seconds the controller will return to normal
mode.
The time is always displayed regardless of whether the controller is turned
On or Off. The clock may need resetting if power to the water heater is
disrupted due to a power failure or if the power is switched off over a
prolonged period.
Rinnai New Zealand
SHOWER SAVER /
INDICATOR BATH FILL INDICATOR
Indicates that the Shower Saver /
Bath fill function is operating.
t .
emperature
ON/OFF BUTTON
Used to switch the water heater on and
off. This button is illuminated when the
water heating system is on.
DIGITAL
MONITOR
When in normal mode these
buttons are used to select the
water temperature.
In setup mode these buttons are
used to adjust the voice prompt
volume and set the clock.
Used to switch the controller
between normal, voice or clock
modes.
Used to transfer control priority
between the controllers. The
controller with priority has
command of the hot water
delivery temperature. This button
is illuminated when this controller
has priority.
Continuous Flow Water Heater Operation Manual
14
UP AND DOWN BUTTONS
MODE BUTTON
TRANSFER BUTTON
