Doro PHONEEASY 110 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

PhoneEasy
110
®
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHONEEASY 110 and is the answer not in the manual?

Questions and answers

Related Manuals for Doro PHONEEASY 110

Summary of Contents for Doro PHONEEASY 110

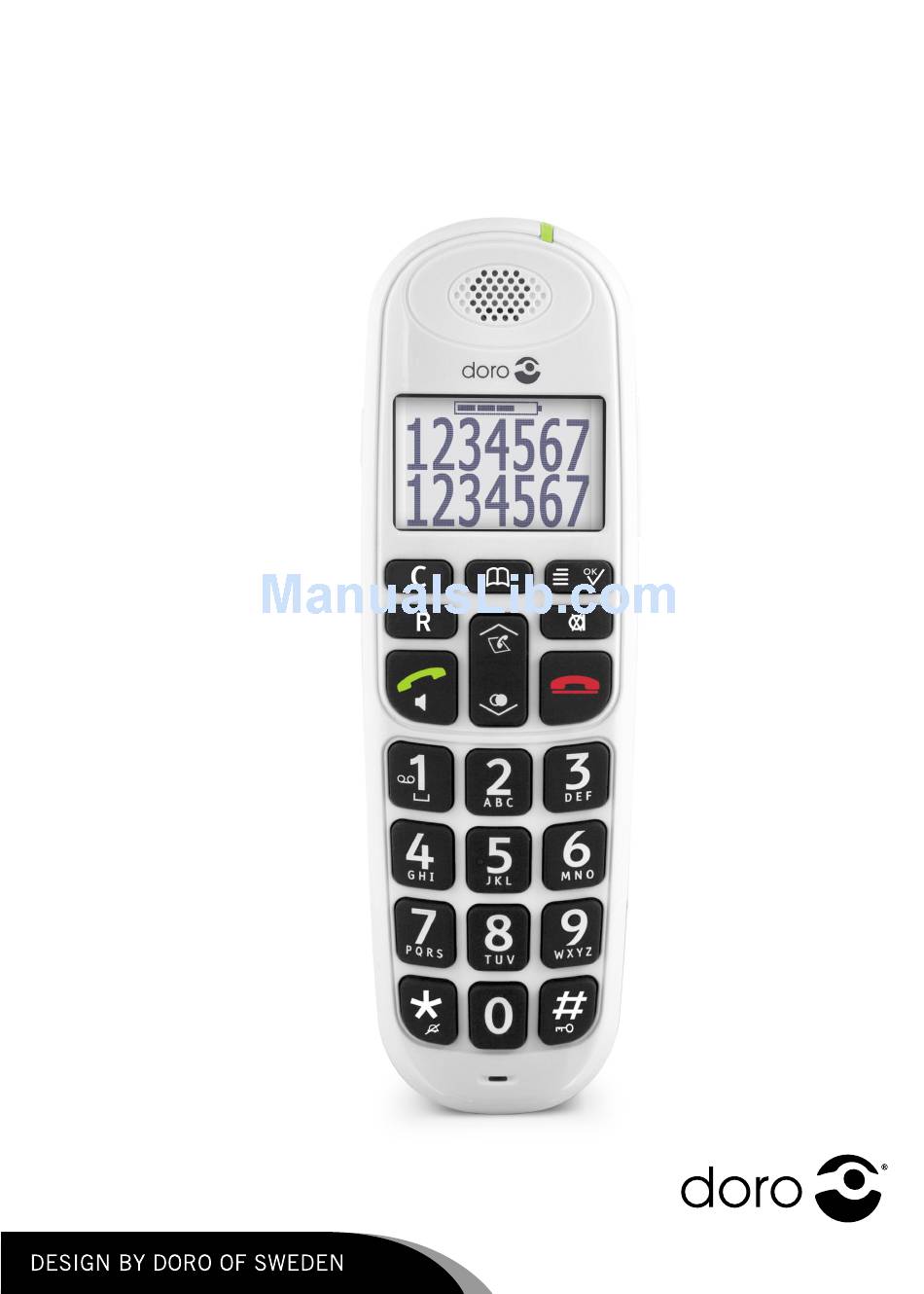

  • Page 1 PhoneEasy ® English...
  • Page 2 English Phonebook Keypad lock and unlock Boost (sound End call / Switch on/off amplification) handset Intercom 10. Mute Recall key 11. Menu key/OK Call key/Speaker phone 12. Volume Redial/Down 13. Call log/Up Ringer on and off 14. Ringer LED...

  • Page 3: Table Of Contents

    English Contents Installation ..............1 Connection ............1 Basic setup ............1 Operation..............3 Making a call............3 Receiving a call ............ 3 Redial ..............3 Speaker mode............3 Mute..............4 Call timer ............. 4 Entering text............4 Keypad lock ............4 Paging ..............
  • Page 4 English Sound ................10 Ringer..............10 Tones ..............10 Settings ..............11 Handset settings ...........11 Base settings............12 Expanded system (two or more handsets) ....13 Others ................15 Range ..............15 Eco Functionality ..........15 Battery..............15 Hearing loop............16 Troubleshooting ............16 Care and maintenance...........17 Warranty ..............17 Specific Absorption Rate (SAR) ......18 Declaration of Conformity ........18...

  • Page 5: Installation

    English Installation This device is intended for the analogue telephone network lines in AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, IE, IS, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SI, SK, SE. Connection Connect the mains adapter to an electrical wall socket and to y on the base.
  • Page 6 English Note! Sound/Tones , p.10 on how to change language for Talking keys. Date/Time/Alarm Press w/0. Scroll to Settings. Press w/0. Scroll to Date/Time/Alarm. Press w/0. Scroll to Date / Time. Press w/0. Select Time format and press w/0. Select 24 hour or 12 hour.

  • Page 7: Operation

    English Scroll to Ringtone . Press w/0. Press w/0. Note! When the alarm goes off, ALARM is displayed. Turn off the signal with any key. The volume is determined by the handset ringer volume. If the handset Ringervolume is set to Off, the alarm still sounds at Level 1.

  • Page 8: Mute

    English Note! Please remember that in speaker mode, it is only possible for one person at a time to talk. To save power, speaker and the display light ceases to operate at low battery strength. Mute Switch on/off the microphone during a call with z. Call timer During a call the display will show a timer HH:MM:SS, indicating the call duration.

  • Page 9: Paging

    English Paging Press J on the base unit to page the handset/s. The handset/s will ring and Paging is displayed. The signal will stop automatically, or press J again, or press k on the handset. Handset power On/Off Press and hold k in standby to power on/off the handset. Press w/0 to confirm.

  • Page 10: Phonebook

    English Phonebook The phonebook will store 100 contacts. Contacts in the phonebook are arranged alphabetically. Each name can be up to 10 characters in length, and phone numbers can be up to 24 digits in length. If you subscribe to a Caller ID service, the name/number of the caller will be displayed (for those numbers stored in the phonebook).

  • Page 11: Copy Contacts To Another Handset

    English Select the required Group. Press w/0. Copy contacts to another handset Only for expanded system, with two or more handsets. Press b. Scroll to the contact you want to copy. Press w/0. Scroll to Copy/Copy all. Press w/0. Select a destination handset. Press w/0. Accept PB entries? is displayed on the destination handset.

  • Page 12: Speed Dial

    English Speed dial Once a contact has been saved as Speed dial you only need to press one key to make a call. Note! The contact must be stored in the phonebook before assigning it as speed dial. Storing as speed dial Press b.

  • Page 13: Retrieving And Dialling

    English Retrieving and dialling Press . Press w/0. Or press w/0 and select Call log . Scroll to desired number with Press q to dial or press w/0 for the submenu: Details View details for the call Delete Delete this number from the call log (not from Phonebook) Delete all Delete all numbers from the call log...

  • Page 14: Sound

    English Unknown Unknown number, e.g. international call. Private Information about the number is blocked. Number cannot be displayed. Message indication from your network operator*. * Only functions in certain countries. To remove the message indicator: Press and then hold down 4 . Sound Ringer Press w/0.

  • Page 15: Settings

    English Scroll to desired function e.g. Tones . Press w/0. Scroll to desired setting. Press w/0: Key tone Select Key beep , Talking keys or Off. If you select Talking keys also select desired language. Confir- Select On or Off. Press w/0 to confirm. mation Battery Select On or Off.

  • Page 16: Base Settings

    English Auto On = the call is answered when the handset answer is lifted from the base. Off = the call is answered by pressing q. Register Register a new handset to a base, see handset Expanded system (two or more handsets), p.13.

  • Page 17: Expanded System (Two Or More Handsets)

    English System Change PIN code (default code is 0000). Base Reset the base to default settings. Enter the reset PIN code (default code is 0000) and press w/0. Press w/0 again to confirm. Expanded system (two or more handsets) The call number for internal calls will be displayed in the display in standby mode.
  • Page 18 English Intercom/internal call Press C. If using more than 2 handsets: Enter call number 1 – 5 for the desired handset or press 9 for all. A tone will be heard if an external call comes in while an internal call is in progress. End the internal call with k and then answer the external call with q.

  • Page 19: Others

    English Others Range The telephone’s range depends on whether or not the radio waves carrying the call are restricted by obstacles in their path, and is usually between 50 and 300 metres. Coverage can be improved by turning one’s head so that the handset is aligned with the base unit. Sound quality declines as the limit is reached until the call is finally interrupted.

  • Page 20: Hearing Loop

    English this is to minimize the risk of any interference. It is normal for the device to become warm during charging and this is not dangerous. Hearing loop The handset has a built-in hearing loop for those who wish to use their hearing aid with this telephone.

  • Page 21: Care And Maintenance

    English Care and maintenance Your unit is a technically advanced product and should be treated with the greatest care. Negligence may void the warranty. Protect the unit from moisture. Rain/snowfall, moisture and all • types of liquid can contain substances that corrode the electronic circuits.

  • Page 22: Specific Absorption Rate (Sar)

    Batteries are consumables and are not included in any guarantee. This guarantee does not apply if other batteries than DORO original batteries have been used. Specific Absorption Rate (SAR) This device meets applicable international safety requirements for exposure to radio waves.
  • Page 23 English...
  • Page 24 Doro PhoneEasy ® Doro PhoneEasy 110 duo ® Doro PhoneEasy 110 trio ® Doro PhoneEasy 110 quad ® LAST PAGE English Version 1.0 © 2011 Doro AB. All rights reserved. www.doro.com REV 2867 — STR 20110831-2...
