Summary of Contents for Doro FORMULA 5R

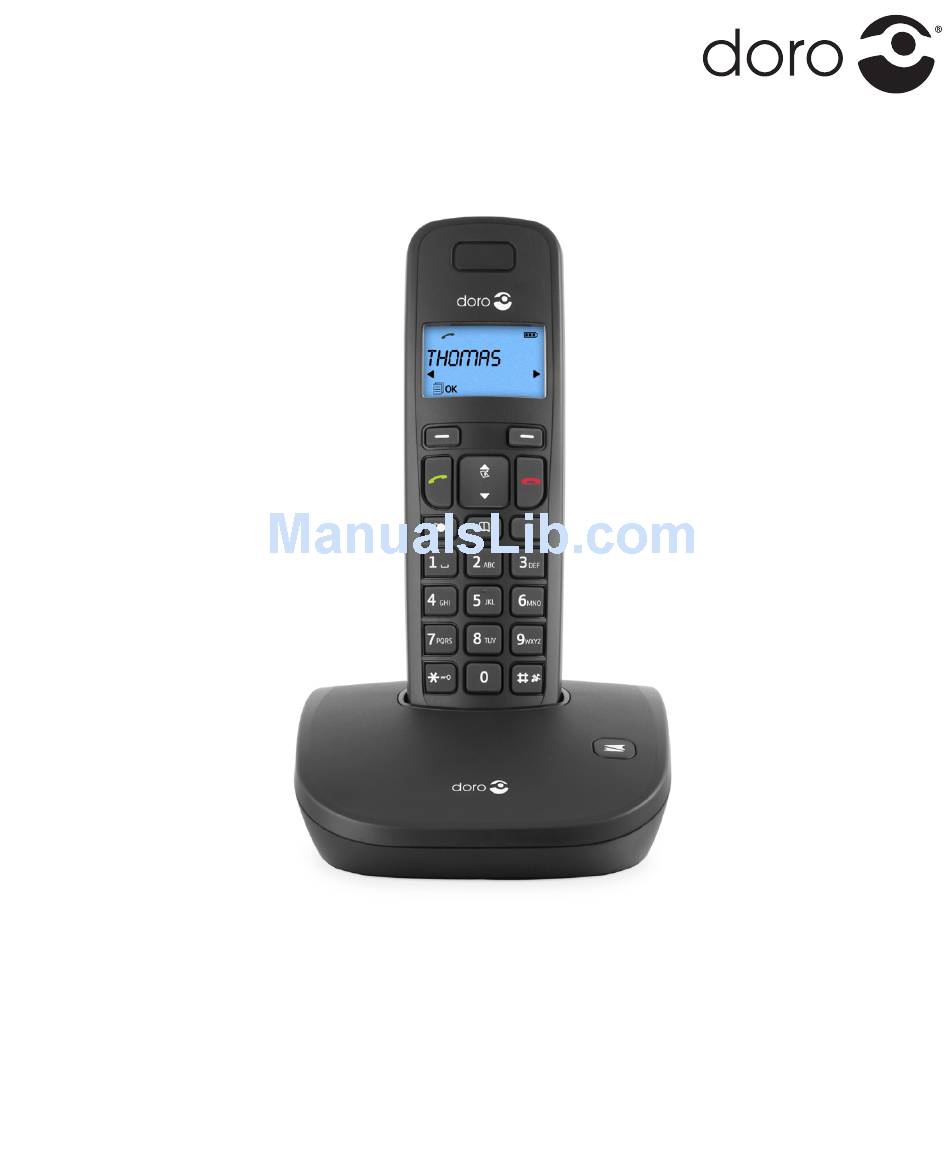

  • Page 1 English Formula 3/5R...
  • Page 2 Formula 5r Pantone White Fomular_ Doro_ Artwork_ TAM/BUZZER_FOR...
  • Page 3 English 1. Up / missed call Only for Formula 5r: 2. Left menu button/OK 12. Paging 3. Talk button 13. Answer machine functions. Detailed in 4. Down/Redial Answer machine section. 5. Redial 14. Message indication/display 6. * and keypad lock 7.

  • Page 5: Installation

    Use the telephone line cord supplied, an existing line cord from a previous phone may not be compatible. The mains socket outlet must be located near the equipment and easily accessible. If the Formula 5r base unit’s display is showing -- the answer machine is disconnected, or time/date is not set. Date/Time 1.

  • Page 6: Battery Led

    English Battery When the batteries are relatively new (less than 6 months) and fully-charged (10 hours) they will last for approx 100 hours standby time or approx 10 hours call time. Full battery capacity will not be reached until the batteries have been charged 4–5 times. It is not possible to overcharge or damage the batteries by charging them for ”too long”.

  • Page 7: Eco Functionality

    English Range The telephone’s range depends on whether or not the radio waves carrying the call are restricted by obstacles in their path, and is usually between 50 and 300 metres. Coverage can be improved by turning one’s head so that the handset is aligned with the base unit. Sound quality declines as the limit is reached until the call is finally interrupted.

  • Page 8: Operation

    English Operation Making a call 1. Enter the required number. Delete if necessary with right menu button C . 2. Press q to make the call. Press L to end the call. Receiving a call 1. Wait for the handset to ring. 2.
  • Page 9 English Phonebook You can save 20 numbers/names. If you subscribe to a caller ID service, the name allocated to the caller in the phonebook will be shown for incoming calls. It is possible to choose between various ringers for the numbers saved in the Phonebook (only functions if you subscribe to a caller ID service).

  • Page 10: Incoming Numbers/Caller Id

    English Incoming numbers/Caller ID The display shows you who is calling and the 10 most recent missed calls. NEW CALLS will be shown in standby mode and  in the list indicates a missed call. This function requires a subscription from your service provider! Retrieving and dialling 1.
  • Page 11 English Settings Functions 1. Press . Scroll to HS SETTINGS. Press OK. 2. Scroll to desired function e.g. LANGUAGE. Press OK. 3. Scroll to desired setting. Press OK. ALARM When the alarm is activated will be shown in standby mode. When the alarm goes off, a signal will be heard for 45 seconds.

  • Page 12: System Settings

    . Scroll to BS SETTINGS. Press OK. 2. Scroll to desired function. Press OK. 3. Enter the desired setting. Press OK. BS RINGER/ The base unit’s ringer signal can be adjusted. Only applies to Formula 5r. RING VOLUME DELETE HS To de-register a handset.

  • Page 13: Register A New Handset

    3. Enter the base unit’s PIN code (e.g. 0000). Press OK. 4. If the registration is successful the unit will return to standby mode within one minute. Answer machine (only Formula 5r) When the answer machine is switched on calls are answered after a set number of rings, your outgoing message is heard and the caller can leave a message.
  • Page 14 English Outgoing message The outgoing message (max 3 min) is heard by incoming calls. There are two separate outgoing messages, one for Answer only (callers cannot leave a message) and one for normal answering function. Please also select desired answer function. See TAM Settings. 1.
  • Page 15 English Use of answer machine (handset) New messages are indicated by flashing in the display in standby mode. Playback always starts with new messages. 1. Press . Scroll to ANS. MACHINE. Press OK. 2. Scroll to MSG PLAYBACK. Press OK. 3.
  • Page 16 English Out of memory The memory has room for up to 59 messages (including the outgoing message) max. 15 minutes depending on the compression you set. When TAM FULL is shown or the base unit flashes FF, no new messages can be recorded until the old ones have been played back and deleted.

  • Page 17: Remote Activation

    English Remote activation The answer machine can be activated via the remote access functions. 1. Call the answer machine. It will answer after approximately 10 rings. 2. Press * when the outgoing message is played. 3. Enter the PIN code, see Answer machine Settings. One beep confirms correct code. 4.

  • Page 18: Troubleshooting

    English Troubleshooting Check that the telephone cord is undamaged and properly plugged in. Disconnect any additional equipment, extension cords and other phones. If the problem is resolved, the fault is with some other equipment. Test the equipment on a known working line (e.g. at a neighbour’s house). If the equipment works there the fault is probably with your telephone line.

  • Page 19: Warranty And Other Information

    20% of the maximum range, the SAR value is reduced to around 0,02 W/kg (per 10g tissue). Declaration of conformity Doro hereby declares that the products Doro Formula 3/5r conform to the essential requirements and other regulations contained in the directives 1999/5/EC (R&TTE), 2002/95/EC (ROHS). A copy of the manufac- turer’s declaration is available at www.doro.com/dofc...
  • Page 20 Doro Formula 3 Doro Formula 3 Duo Doro Formula 3 Trio Doro Formula 3 Quad Doro Formula 5r Doro Formula 5r Duo Doro Formula 5r Trio Doro Formula 5r Quad English Version 1.2...
