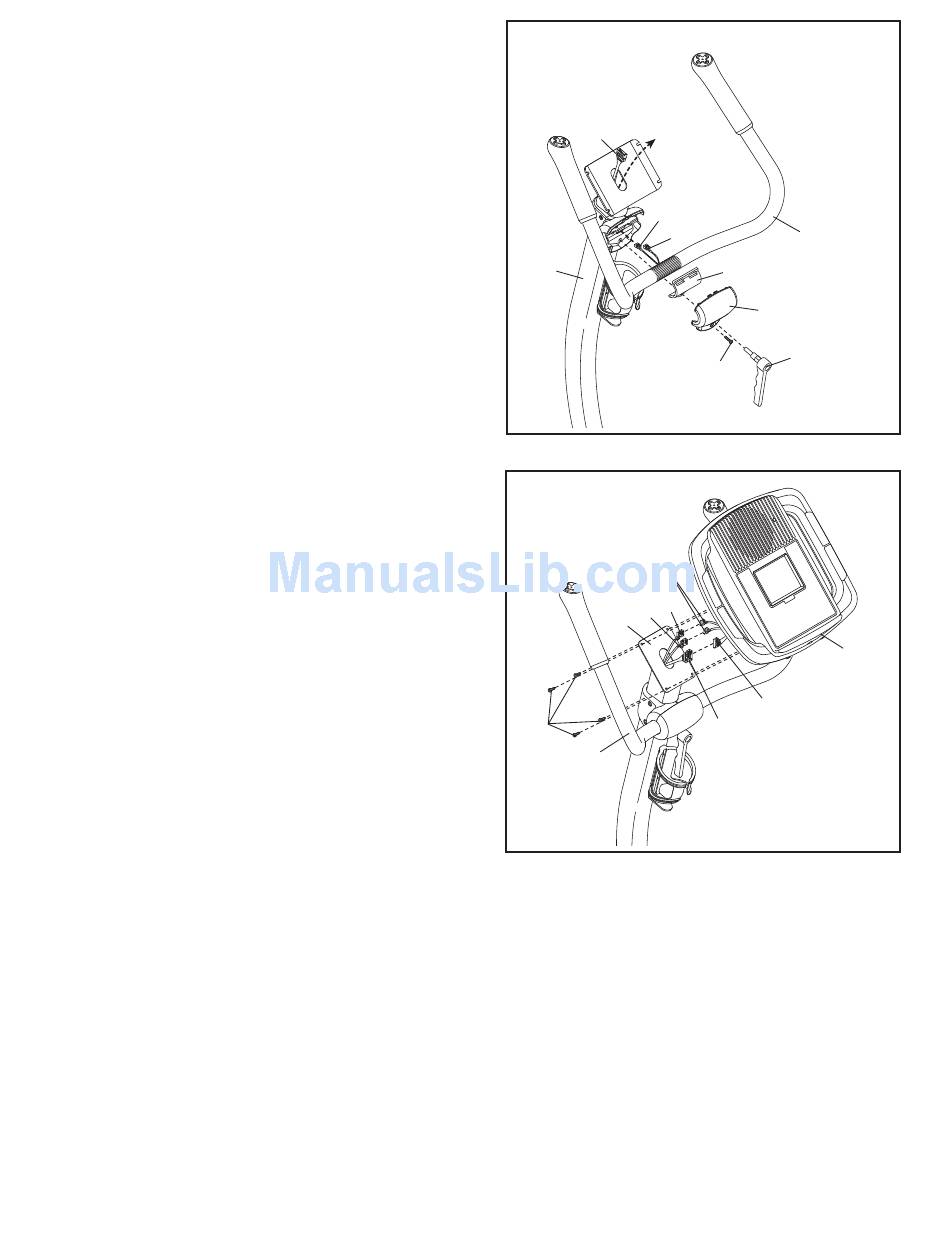

5. While a second person holds the Handlebar (7)
near the Handlebar Post (6), insert the Left and
Right Controller Wires (59, 60) into the hole in the
Handlebar Post and upward out of the top of the
Handlebar Post.
Next, attach the Handlebar (7) to the Handlebar
Post (6) with the Handlebar Clamp (22), the Clamp
Cover (75), and the Adjustment Handle (10). Note:
The Adjustment Handle works like a spanner. Turn
the Adjustment Handle clockwise, pull it away from
the Handlebar, turn it counterclockwise, push it
toward the Handlebar, and then turn it clockwise
again. Repeat until the Handlebar is tight. Be care-
ful not to pinch the Controller Wires (59, 60).
Then, tighten an M4 x 16mm Screw (54) into the
Clamp Cover (75), the Handlebar Clamp (22), and
the Handlebar Post (6).
6. While another person holds the Console (9) near
the Handlebar (7), connect the console wire har-
ness to the Upper Wire Harness (51). Next, connect
the Right Controller Wire (60), which has a tag
attached, to the console controller wire that also has
a tag. Then, connect the Left Controller Wire (59) to
the other console controller wire. Insert the excess
wire downward into the Handlebar Post (6).
Attach the Console (9) to the Handlebar (7) with
four M4 x 16mm Screws (54). Be careful not to
pinch the wires.
