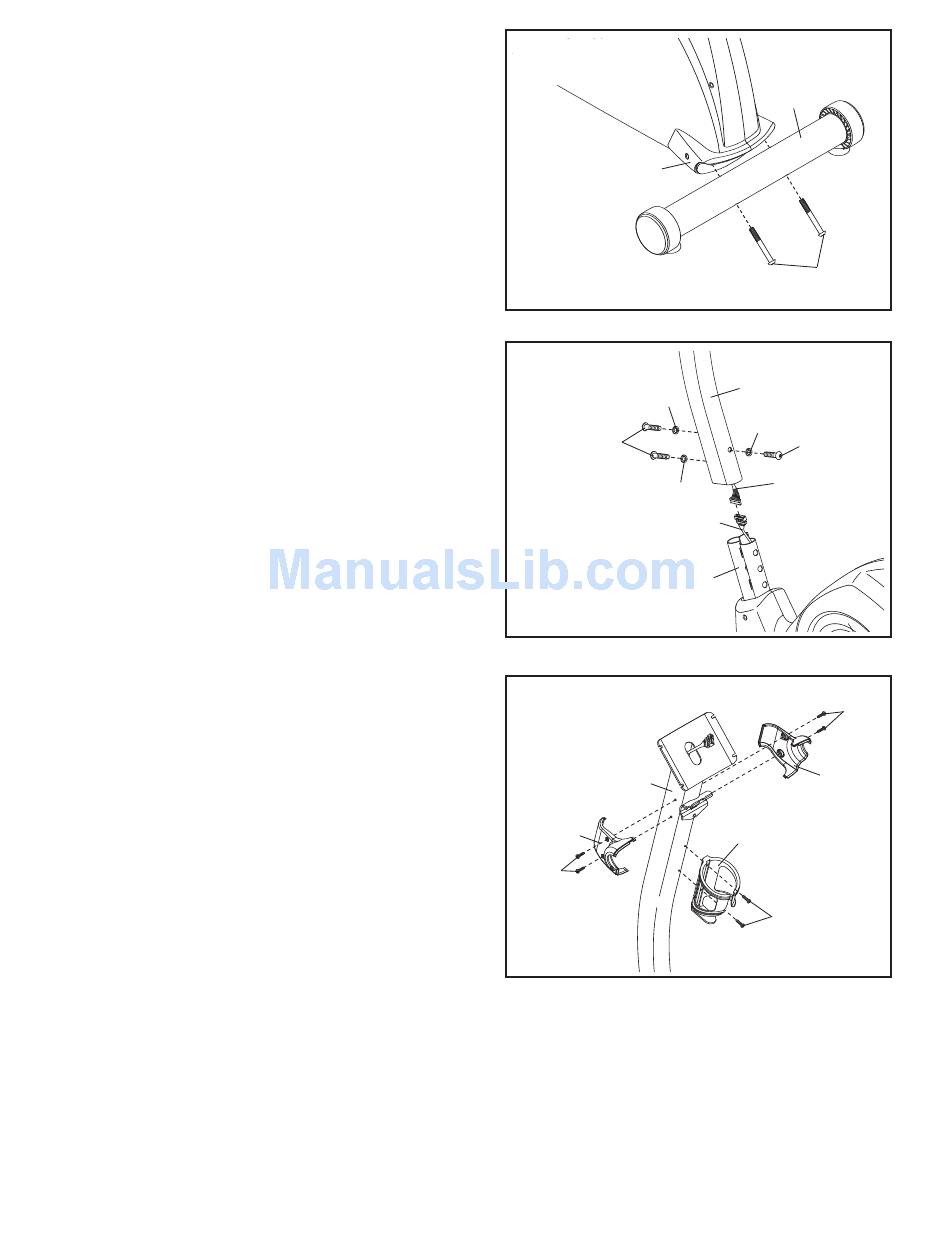

2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (3) to the Frame with two
M10 x 85mm Button Screws (23).
3. While another person holds the Handlebar Post (6)
near the Frame (1), connect the Upper Wire
Harness (51) to the Lower Wire Harness (50). Next,
pull the excess Upper Wire Harness out of the top
of the Handlebar Post, and slide the Handlebar Post
onto the Frame. Be careful not to pinch the Wire
Harnesses.
Attach the Handlebar Post (6) to the Frame (1) with
three M10 x 50mm Button Screws (48) and three
M10 Split Washers (55); tighten the two Button
Screws in the front of the Handlebar Post first,
and then tighten the third Button Screw.
4. Attach the Water Bottle Holder (18) to the
Handlebar Post (6) with two M4 x 19mm
Screws (47).
Attach the Left and Right Handlebar Covers (73, 74)
around the Handlebar Post (6) with four M4 x 16mm
Screws (54).
