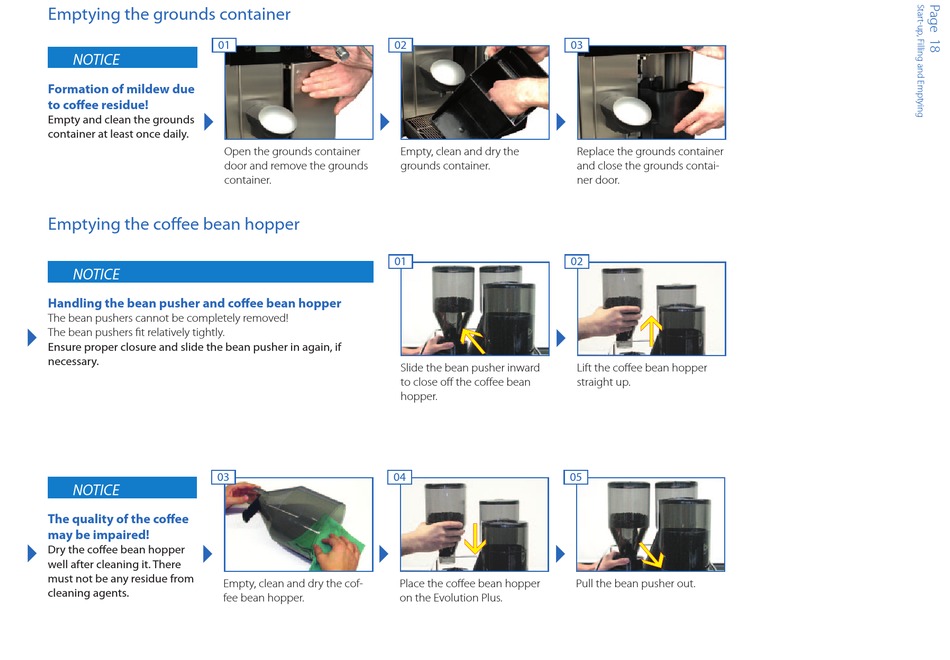

Emptying the grounds container

NOTICE
Formation of mildew due
to coffee residue!
4
Empty and clean the grounds
container at least once daily.
Emptying the coffee bean hopper
NOTICE
Handling the bean pusher and coffee bean hopper
The bean pushers cannot be completely removed!
4
The bean pushers fit relatively tightly.
Ensure proper closure and slide the bean pusher in again, if
necessary.
NOTICE
The quality of the coffee
may be impaired!
4
4
Dry the coffee bean hopper
well after cleaning it. There
must not be any residue from
cleaning agents.
01
02
4
Open the grounds container
door and remove the grounds
container.
01
03
04
4
Empty, clean and dry the cof-
Place the coffee bean hopper
fee bean hopper.
on the Evolution Plus.
03
4
Empty, clean and dry the
Replace the grounds container
grounds container.
and close the grounds contai-
ner door.
02
4
Slide the bean pusher inward
Lift the coffee bean hopper
to close off the coffee bean
straight up.
hopper.
05
4
Pull the bean pusher out.
