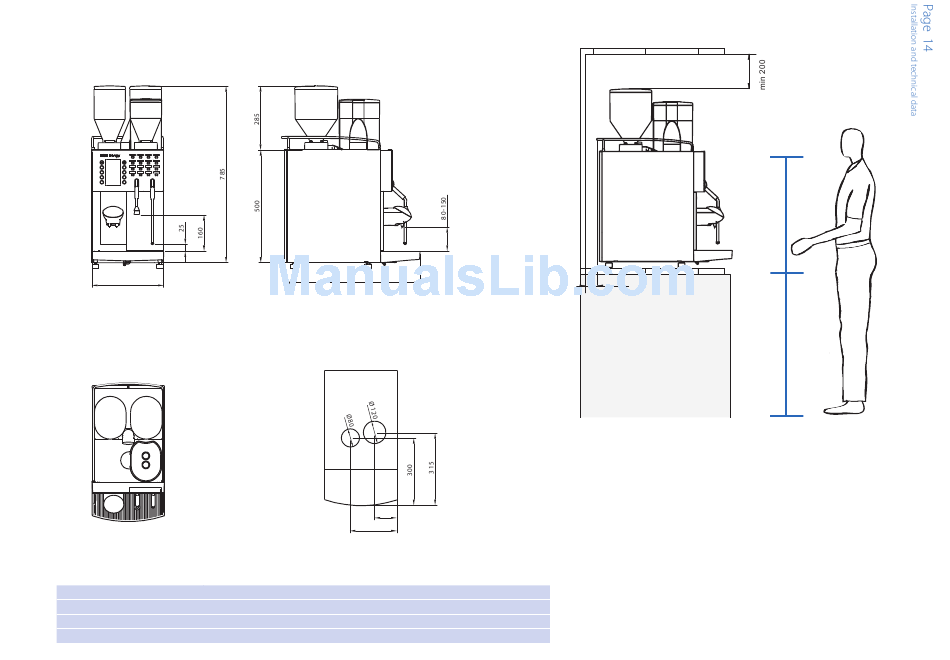

Dimensions
Front view
320
Top view
320
Adjustable feet
(optional)
30 mm (1.18") foot 500 mm + 285 mm + 32 mm = 817 mm
40 mm (1.57") foot 500 mm + 285 mm + 45 mm = 830 mm
70 mm (2.76") foot 500 mm + 285 mm + 70...80 mm = 855...865 mm
100 mm (3.94") foot 500 mm + 285 mm + 100...115 mm = 885...900mm
Side view
600
Cross-section from above
600
96
210
96
210

Installation Dimensions

min 50
(grommet hole)
Prepare a stable, ergonomic surface
panel should be at eye level.
Distance to the wall must be at least 50 mm (1.96"). Clearance above
the machine must be at least 200 mm (7.78").
Adjustable feet can be used to compensate for unevenness or
height differences.
If optional accessories are installed, up to an additional 320 mm
(12.6") may be required per accessory.
Observe the connection requirements of the accessories.
. The control
(min. load capacity: 150 kg)
