Scanning 1-D Bar Codes with the EP1

The EP1 has an integrated laser bar code scanner that allows you to collect data by scanning bar codes.
To scan bar codes with the EP1:
1.) Start your scanning application.
2.) Aim the scanner at the bar code.
3.) Press either the right, left, center or trigger handle (if purchased) scan trigger. Make sure the red scan beam
covers the entire barcode. The green scan LED lights and a beep sounds to indicate a successful decode.

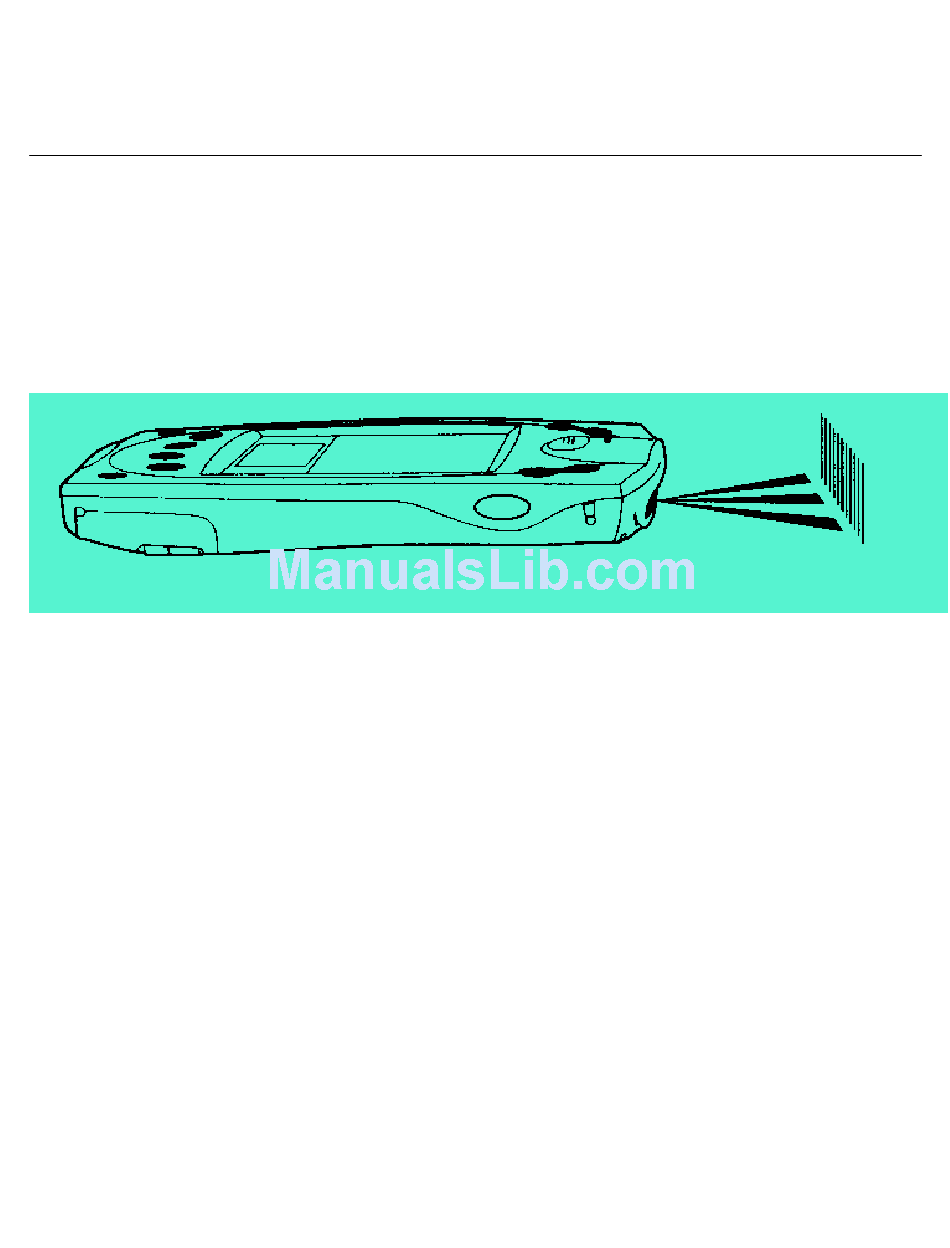

F 10. H 1-D B L .
IGURE OW TO SCAN A ARCODE ABEL
