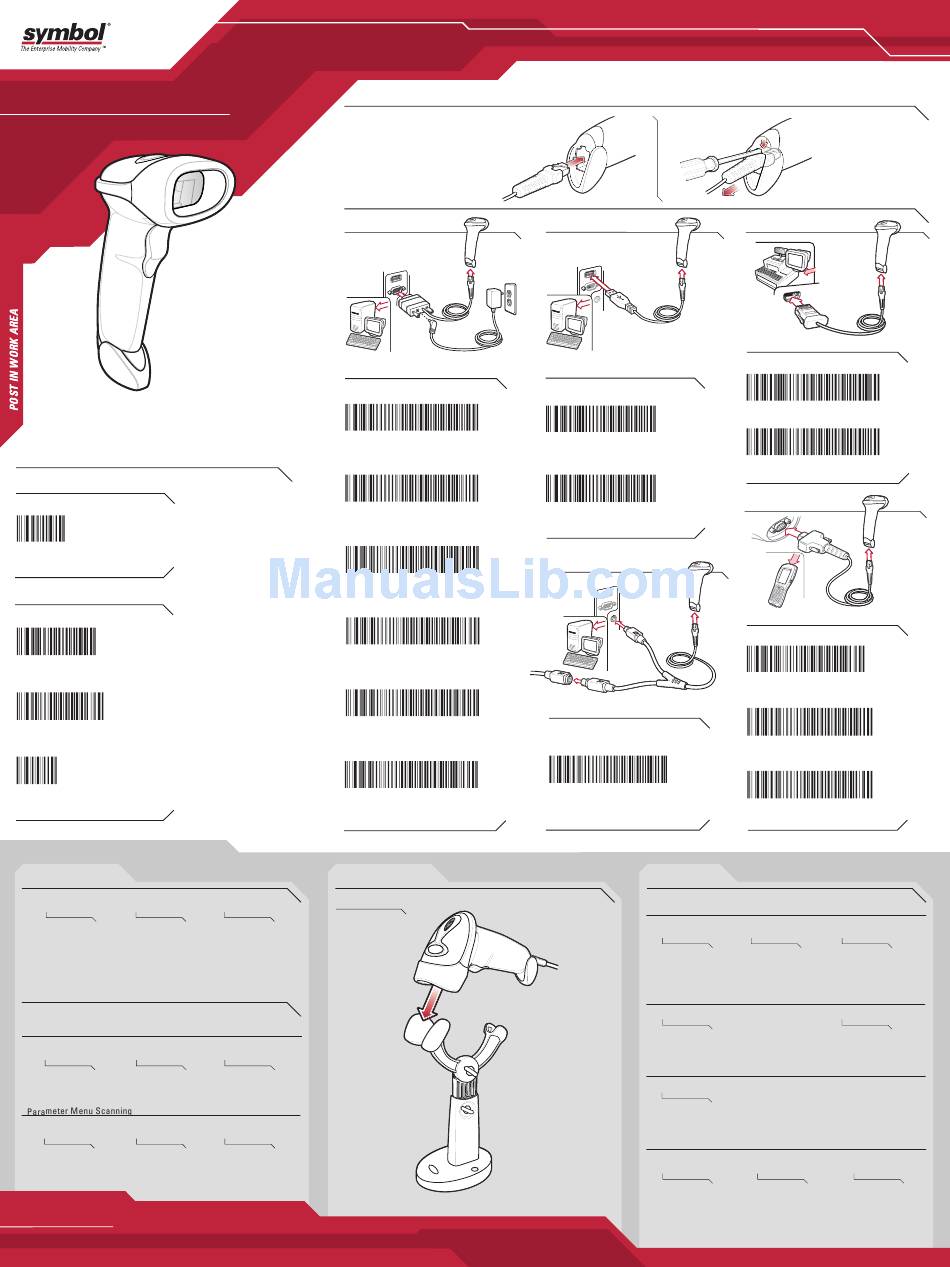

LS2208
Quick Start Guide
http://www.symbol.com/ls2208
See Product Reference Guide for more information
Miscellaneous Settings
Set Defaults
SET DEFAULTS
Carriage Return/Line Feed
SCAN OPTIONS
<DATA><SUFFIX>
ENTER
LED Indications
Off
Green
Scanner is on and
Bar code is successfully
ready to scan,
decoded
or no power to scanner
Beeper Indications
Standard Use
Low/medium/high beep
Short medium beep
Power up
Bar code decoded
High/low/high/low beep
High/low beep
Successful parameter
Correct programming
setting
sequence performed
LS2208
http://www.symbol.com/ls2208
Step 1
- Cord Attachment/Removal
Step 2
- Connect to Host
RS-232
Step 3
- Scan ONE of the following
STANDARD RS-232
ICL RS-232
NIXDORF RS-232 MODE A
NIXDORF RS-232 MODE B
FUJITSU RS-232
OPOS/JPOS
Accessories
Red
IntelliStand
Transmission error
4 long low beeps
Transmission error detected,
data is ignored
Low/High beep
Incorrect programming
sequence or 'Cancel'
bar code scanned
SYMBOL TECHNOLOGIES, INC. One Symbol Plaza Holtsville, New York 11742-1300
USB
Step 3
- Scan ONE of the following
HID KEYBOARD EMULATION
IBM HAND-HELD USB
Keyboard Wedge
Step 3
- Scan the following
IBM PC/AT and IBM PC COMPATIBLE
Troubleshooting
Scanner not working
No power to scanner
Check system power;
ensure power supply,
if required, is connected
Scanner decoding bar code, but data not transmitting to host
Scanner not programmed for correct host interface
Scan appropriate host
parameter bar codes
Scanned data incorrectly displayed on host
Scanner not programmed for correct host interface
Scan appropriate host
parameter bar codes
Scanner not decoding bar code
Scanner not programmed
for bar code type
Ensure scanner is programmed
to read type of bar code
being scanned
NOTE: Cables may vary depending on configuration.
IBM 46XX
Step 3
- Scan ONE of the following
PORT 5B
PORT 9B
Wand Emulation
Step 3
- Scan ONE of the following
SYMBOL WAND
ENABLE CONVERT TO CODE 39
DISABLE CONVERT TO CODE 39
Incorrect interface
Interface/power cables
cable used
are loose
Ensure that correct
Ensure all cable connections
interface cable is used
are secure
Interface cable is loose
Ensure all cable connections
are secure
Bar code unreadable
Distance between scanner
and bar code incorrect
Ensure bar code not defaced;
Move scanner closer to
try scanning test bar code of
or further from bar code
same bar code type
