P
S
RODUCT
PECIFICATIONS
10.3 EER
7½
TO
C
C
:
86,000 - 116,000 BTU/
OOLING
APACITY
* Full warranty details available at www.goodmanmfg.com.
SS-GPCC
10 T
ON
H
www.goodmanmfg.com
PCC C
OMMERCIAL
P
A
ACKAGED
IR

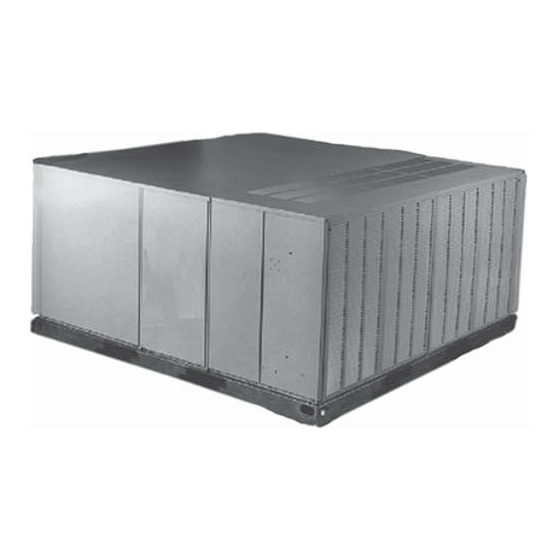

The PCC Commercial packaged air conditioner
features combination electric heat/electric cooling
with dual high-effi ciency scroll compressors. This unit
contains totally enclosed, permanently lubricated
outdoor fan motors and is designed for over/under or
downfl ow applications.
Standard Features
• Dual high-effi ciency scroll compressors with internal
motor protection for 2-stage cooling
• Totally enclosed, permanently lubricated outdoor fan
motors
• Enhanced copper tube/aluminum fi n coils
• Fully charged R-22 systems
• Belt-driven, variable-pitch sheave permits multi-
speed adjustment
• Expansion valve evaporator coil
• Time delay for compressors sequence
• Compressor grommets for vibration isolation
• Two independent condenser coils for two-stage operation
• High- and low-pressure controls on all systems
• Mild ambient switch
• Centrifugal fan for quiet and effi cient operation
Cabinet Features
• Heavy-gauge, zinc-coated steel cabinet with weather-
resistant powder-paint fi nish
• Fully insulated with blankets of insulation
• Vertical discharge with removable grilles
• Control box and compressors easily accessible from
side access panels
• Base rails with fork slots for convenience
of handling and added rigidity
• Galvanized steel, powder-coated drain pan with ¾" NPT
condensate connection
• Factory wiring conveniently arranged to install accessories
• Filters are provided with unit (2" disposable)
• When properly anchored, meets the 2001 Florida
Building Code unit integrity requirements for
hurricane-type winds
C
ONDITIONER
4/09
Supersedes 6/08
Advertisement
Related Manuals for Goodman 10.3 EER
Summary of Contents for Goodman 10.3 EER
- Page 1 RODUCT PECIFICATIONS 10.3 EER 7½ 10 T 86,000 - 116,000 BTU/ OOLING APACITY * Full warranty details available at www.goodmanmfg.com. SS-GPCC PCC C OMMERCIAL ACKAGED The PCC Commercial packaged air conditioner features combination electric heat/electric cooling with dual high-effi ciency scroll compressors. This unit...
- Page 2 RODUCT PECIFICATIONS OMENCLATURE Unit Type Packaged Air Conditioner Nominal Capacity 90,000 BTU/h 120,000 BTU/h CCESSORIES (CHT90-120) HERMOSTAT Two-stage cool / two-stage heat thermostat with subbase, manual changeover, fan-on or auto. Note: A variety of thermostat confi gurations can be used on this equipment based on the application needs.
-
Page 3: Specifications
PECIFICATIONS Cooling Capacity Total BTU/h Sensible BTU/h ¹ EER ² IPLV ³ Indoor Blowers (2) Type Wheel (D x W) Indoor Nominal CFM Horsepower Evaporator Coil (1) Face Area (ft²) Rows Deep/ Fins per Inch Tube Diameter - Material Filter Size (ft²) / Quantity Condenser Fans (2) / Coil (1) Horsepower Fan Diameter... - Page 4 RODUCT PECIFICATIONS IMENSIONS Unit Size Height Supply Air Return Air PCC090-X 12½ PCC120-X 20¼ X = Electrical Designation www.goodmanmfg.com SS-GPCC...
-
Page 5: Lectrical Connections
—E IMENSIONS LECTRICAL ONNECTIONS 1. Main power entrance location 2. Control wiring entrance location 3. Optional fi eld installed internal disconnect switch 4. Knockout not used on electric heat units SS-GPCC Model PCC090-X 6⅛ 7⅞ PCC120-X 22⅛ 23⅞ X = Electrical Designation www.goodmanmfg.com RODUCT PECIFICATIONS... -
Page 6: Pressure Drops
RODUCT PECIFICATIONS OMPONENT RESSURE ROPS Model Wet Coil 2,600 0.06 PCC090-X 3,000 0.06 3,400 0.07 3,600 0.05 PCC120-X 4,000 0.05 4,400 0.05 — OOLING APACITY PCC090-X @ 3,000 CFM 75 ˚F DB EVAP. AMB. ˚F MBHT MBHS 61 WB 83.8 72.1 64 WB 88.7... - Page 7 .) — OOLING APACITY CONT 75 ˚F DB EVAP. AMB. ˚F MBHT MBHS 61 WB 10.2 115.9 64 WB 10.3 122.6 67 WB 10.3 130.7 70 WB 10.6 138.8 73 WB 10.6 146.9 61 WB 10.6 113.2 64 WB 10.8 119.9 67 WB 10.9 128.0...
- Page 8 RODUCT PECIFICATIONS LECTRIC EMPERATURE Heater Model HKCB20 Number of Stages Output (MBH) 67.9 24.2 2,600 22.5 2,800 21.0 3,000 19.7 3,200 18.5 3,400 17.5 3,600 16.5 3,800 15.7 4,000 15.0 4,200 14.3 4,400 13.7 4,600 13.1 4,800 12.6 5,000 12.1 5,200 11.6 5,400...
-
Page 9: Fan Performance
RODUCT PECIFICATIONS ERFORMANCE SS-GPCC www.goodmanmfg.com... - Page 10 RODUCT PECIFICATIONS — PCC24-36*** IRING IAGRAM XFMR R XFMR C Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date schematic. WH-7 www.goodmanmfg.com SS-GPCC...
- Page 11 — PCC42-48*** IRING IAGRAM XFMR R XFMR C Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date schematic. SS-GPCC WH-7 www.goodmanmfg.com RODUCT PECIFICATIONS...
- Page 12 RODUCT PECIFICATIONS — PCC60*** IRING IAGRAM Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date schematic. Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specifi cations or designs without notice or without incurring obligations.
