Goodman RT6100004R13 Service Instructions Manual

Split system air conditioners, split system heat pumps with r-22 refrigerant blowers, coils, & accessories
Hide thumbs
Table of Contents

Advertisement

Quick Links

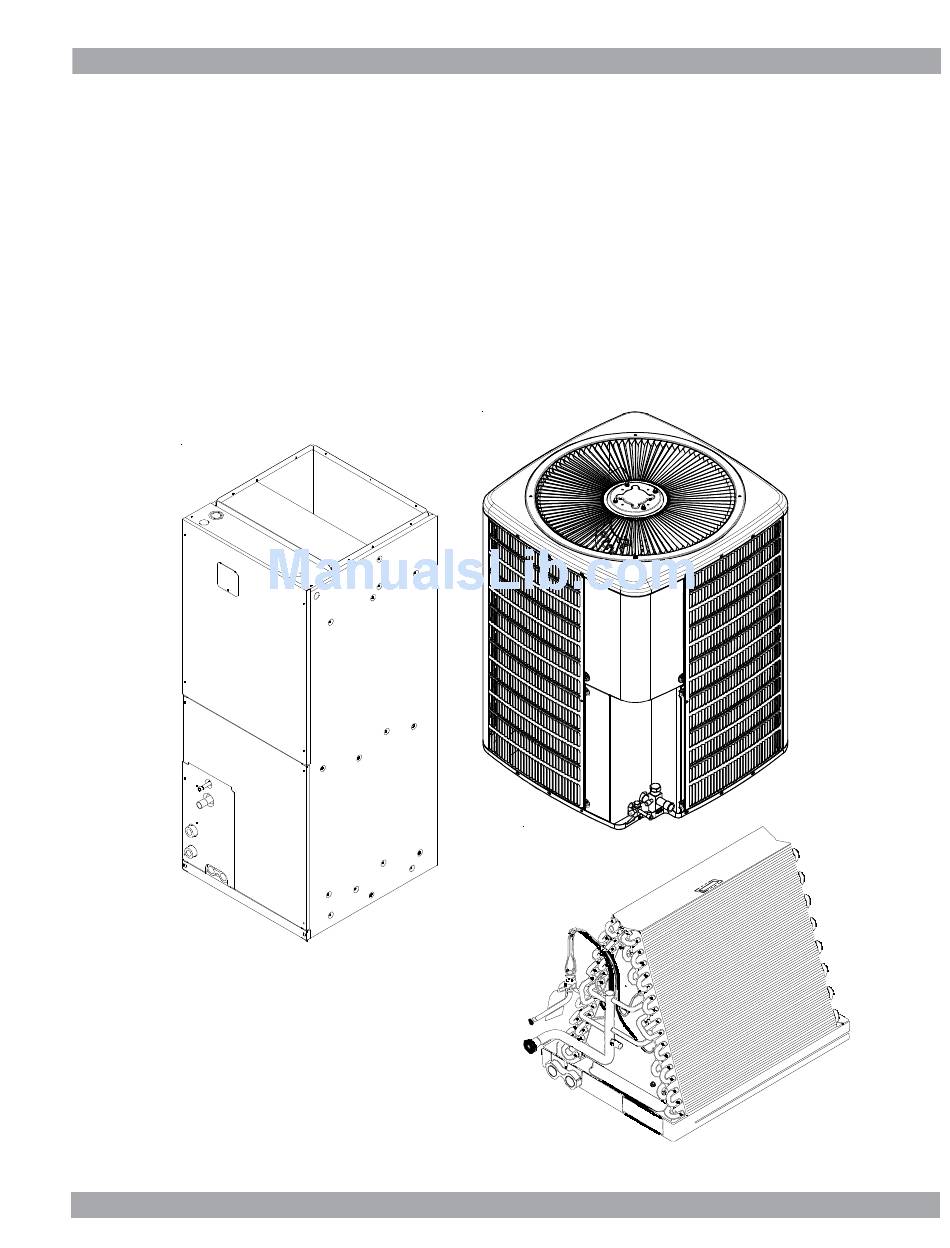

Service Instructions
Split System Air Conditioners,
Split System Heat Pumps
with R-22 Refrigerant
Blowers, Coils, & Accessories
This manual is to be used by qualified, professionally trained HVAC
technicians only. Goodman does not assume any responsibility for
RT6100004r13
property damage or personal injury due to improper service
May 2009
procedures or services performed by an unqualified person.
Copyright
© 2005 - 2009 Goodman
Manufacturing Company, L.P.

Advertisement

Table of Contents
loading

Related Manuals for Goodman RT6100004R13

Summary of Contents for Goodman RT6100004R13

  • Page 1 Blowers, Coils, & Accessories This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does not assume any responsibility for RT6100004r13 property damage or personal injury due to improper service May 2009 procedures or services performed by an unqualified person.

  • Page 2: Table Of Contents

    IMPORTANT INFORMATION ... 2 - 3 MODEL IDENTIFICATION ... 4 - 15 AIR HANDLER/COIL IDENTIFICATION ... 15 ACCESSORIES ... 16 - 20 PRODUCT DESIGN ... 21 - 22 IMPORTANT INFORMATION Pride and workmanship go into every product to provide our customers with quality products. It is possible, however, that during its lifetime a product may require service.

  • Page 3: Important Information

    IMPORTANT INFORMATION SAFE REFRIGERANT HANDLING While these items will not cover every conceivable situation, they should serve as a useful guide. WARNING Refrigerants are heavier than air. They can "push out" the oxygen in your lungs or in any enclosed space.To avoid possible difficulty in breathing or death: •...

  • Page 4: Product Identification

    PRODUCT IDENTIFICATION Model # GSC13018-241AA Goodman® Brand Split Condenser 13 Seer condensing units. Initial release. 26" chassis G oodman® Brand S plit C ondenser 13 Seer condensing units. Initial release. 29" chassis GSC13036-481AA Goodman® Brand Split Condenser 13 Seer condensing units. GSC13036,48*AA Introduces new 13 SEER AC 3 PH R-22 Goodman Models G oodman®...
  • Page 5 PRODUCT IDENTIFICATION Model # G oodman® Brand S plit C ondenser 14 Seer condensing units. Introduces Goodman® GSC140**1AA Brand 14 Seer AC R-22 models. G oodman® Brand S plit C ondenser 14 Seer condensing units. New revisions have screw GSC140**1AB locations moved in the top panel, base pans, louvers, and control box covers.
  • Page 6 PRODUCT IDENTIFICATION Model # GSH10***AA G oodman® Brand S plit H eat Pump 10 Seer heat pump units. Initial release. G oodman® Brand S plit H eat Pump 10 Seer heat pump units. Screw locations GSH10***AB moved in the top panel, base pans, louvers, and control box covers. GSH13***AA G oodman®...
  • Page 7 PRODUCT IDENTIFICATION Model # A mana® Brand S plit H eat Pump 13 Seer heat pump units. Initial release new ASH130**1AA models of Amana® Brand Deluxe 13 Seer R-22 heat pumps. A mana® Brand S plit H eat Pump 13 Seer heat pump units. New revisions have ASH130**1AB screw locations moved in the top panel, base pans, louvers, and control box covers.
  • Page 8 PRODUCT IDENTIFICATION Model # A Single Piece R Multi-Position PSC Motor U npainted F lowrater Introduction of new 13 ARUF****16AA SEER Air Handler Models. All Models will be suitable for use with R-22 and R-410A A Single Piece R Multi-Position PSC Motor U npainted F lowrater.Revision replaces the ARUF364216AB current spot welded blower housing with the same cinched or crimped design used on the 80% furnace line.
  • Page 9 PRODUCT IDENTIFICATION Model # AEPF****16AA AEPF****16BA AEPF****16BB AEPF****16CA AEPF****1BA AEPF313716AA ASPF313716AA ASPF****16AA ASPF****16BA AWUF****1AA AWUF****16AA AWUF3005-101AA AWUF****1BA AWUF370**16AA AWUF****16BA ACNF****1AA ACNF****16AA ACNF****1BA AH**-1* Single Piece Air Handlers A Single Piece E Multi-Position Variable-Speed P ainted F lowrator. Introducation of new 13 SEER Air Handler Models. All Models will be suitable for use with R-22 and R-410A A Single Piece E Multi-Position Variable-Speed P ainted F lowrator.
  • Page 10 PRODUCT IDENTIFICATION Model # M odular B lower R Multi-Position PSC Motor. Introduces module blower with PSC MBR****AA-1AA blower motor. M odular B lower E Multi-Position Variable-Speed. Introduces module blower with MBE****AA-1AA variable speed blower motor. M odular B lower E Multi-Position Variable-Speed.Revision introduces new models MBE****AA-1BA adding lower kw hit kits on the S&R plate Model #...
  • Page 11 A: Amana Brand V: Value PRODUCT CATEGORY: S: Split System PRODUCT CATEGORY: C: Split System UNIT TYPE: E: Commercial Air Conditioner K: Air Cojditioner P: Heat Pump SEER: 10: 10 SEER 13: 13 SEER 14: 14 SEER NOMINAL CAPACITY: 018: 1.5 Tons 024: 2 Tons 030: 2.5 Tons...
  • Page 12 PRODUCT IDENTIFICATION PRODUCT CATEGORY: C: Split System UNIT TYPE: E: Commercial Air Conditioner K: Air Cojditioner P: Heat Pump PRODUCT CATEGORY: C: Split System UNIT TYPE: E: Commercial Air Conditioner K: Air Cojditioner P: Heat Pump 1: 208-230V/1ph/60Hz 2: 220-240V/1ph/50 Hz...
  • Page 13 PRODUCT IDENTIFICATION PRODUCT CATEGORY: C: Split System UNIT TYPE: E: Commercial Air Conditioner K: Air Cojditioner P: Heat Pump THIS NOMENCLATURE IS TO BE USED TRHOUGH JULY 2006 Product Type A: Single Piece Air Handler Application C: Ceiling Mount PSC Motor...
  • Page 14 PRODUCT IDENTIFICATION THIS NOMENCLATURE IS TO BE USED AFTER JULY 2006 PRODUCT TYPE: A: Air Handler CABINET FINISH: U: Unpainted P: Paited N: Uncased APPLICATION C: Ceiling Mount PSC Motor D: Downflow PSC Motor E: Multi-Position Varible-Speed Motor S: Energy-Efficient Motor R: Multi-Position PSC Motor T: Coated Coils W: Wall Mount PSC Motor...
  • Page 15 PRODUCT IDENTIFICATION PRODUCT TYPE: C: Indoor Coil CABINET FINISH: U: Unpainted P: Painted N: Unpainted Case APPLICATION A: Upflow/Downflow Coil H: Horizontal A Coil S: Horizontal Slab Coil DESIGN SERIES: MB: Modular Blower MOTOR TYPE: R: Constant Speed E: Variable Speed AIRFLOW DELIVERED 08: 800 CFM 12: 1200 CFM...

  • Page 16: Accessories

    ACCESSORIES Model Description AFE18-60A All Fuel Kit OT18-60A Outdoor Thermostat Freeze Protection Kit FSK01A* Anti Short Cycle Kit ASC01 TX2N2* TXV Kit TX3N2* TXV Kit TXV Kit TX5N2* Outdoor Lockout Stat OT18-60A OT/EHR18-60 Emergency Heat relay kit CSR-U-1 Hard Start Kit Hard Start Kit CSR-U-2 Hard Start Kit...
  • Page 17 ACCESSORIES Model Description All Fuel Kit AFE18-60A OT18-60A Outdoor Thermostat FSK01A* Freeze Protection Kit ASC01 Anti Short Cycle Kit TX2N2* TXV Kit TX3N2* TXV Kit TX5N2* TXV Kit OT18-60A Outdoor Lockout Stat OT/EHR18-60 Emergency Heat relay kit CSR-U-1 Hard Start Kit CSR-U-2 Hard Start Kit CSR-U-3...
  • Page 18 ACCESSORIES EXPANSION VALVE KITS 1/4 FLARE CONNECTION EVAPORATOR COIL REMOVE BEFORE INSTALLING EXPANSION VALVE 1/4' FLARE CONNECTION EVAPORATOR COIL REMOVE BEFORE INSTALLING SEAL SUPPLIED W/ KIT EXPANSION VALVE OUTDOOR THERMOSTAT & EMERGENCY HEAT RELAY 315º Set Point Adjustment Screw BULB SUCTION LINE SEAL SUPPLIED W/ KIT SEAL SUPPLIED W/ KIT...
  • Page 19 ACCESSORIES ANTI-SHORT -CYCLE CONTROL KIT FREEZE THERMOSTAT Wire Nut Wire Nut Install Line Thermostat Here ASC01A YELLOW 1 CONTACTOR BLACK 1 FSK01A Install Line Thermostat Here Wire Nut Wire Nut SHORT CYCLE PROTECTOR T2 T1 THERMOSTAT L2 L1 WIRE UNIT BLACK 1 TERMINAL BOARD...

  • Page 20: Accessories

    ACCESSORIES COIL MODEL TX2N2 TXV KIT CA*F030B4* CA*F036B4* CA*F042C4* CA*F048C4* CA*F057D4* CA*F060D4* CHPF030A4* CHPF036B4* CHPF042A4* CHPF048D4* CHPF060D4* CH36FCB CH48FCB CH60FCB CA*F18246* CA*F30306* CA*F36426* CHPF18246* CHPF30306* CHPF36426* CSCF1824N6* CSCF303N6* CSCF3642N6* BLOWER NO HEAT HKR-03* HKR05-(C)' MBR0800AA-1AA MBR1200AA-1AA MBR1600AA-1AA MBR2000AA-1AA MBE1200AA-1AA MBE1600AA-1AA MBE2000AA-1AA MBE1200AA-1BA MBE1600AA-1BA...

  • Page 21: Product Design

    PRODUCT DESIGN This section gives a basic description of cooling unit opera- tion, its various components and their basic operation. Ensure your system is properly sized for heat gain and loss according to methods of the Air Conditioning Contractors Association (ACCA) or equivalent. CONDENSING UNIT These units are designed for free air discharge.
  • Page 22 PRODUCT DESIGN The coils are designed for upflow, counterflow or horizontal application, using two-speed direct drive motors on the CACF/CAPF/CHPX models and BPM (Brushless Permanent Magnet) or ECM motors on the MBE models. The ARUF is a multi-position air handler (upflow/horizontal or downflow) and is equipped with a flowrator for cooling and heat pump applications.

  • Page 23: System Operation

    SYSTEM OPERATION COOLING The refrigerant used in the system is R-22. It is a clear, colorless, non-toxic, non-irritating, and non-explosive liquid. The chemical formula is CHCLF atmospheric pressure is -41.4°F. A few of the important principles that make the refrigeration cycle possible are: heat always flows from a warmer to a cooler body, under lower pressure a refrigerant will absorb heat and vaporize at a low temperature, the vapors may be...
  • Page 24 SYSTEM OPERATION COOLING CYCLE Indoor Coil Accumulator HEATING CYCLE Indoor Coil Accumulator Reversing Valve (Energized) Thermostatic Expansion Valve Bi-Flow Filter Dryer Check Valve Reversing Valve (De-Energized) Thermostatic Expansion Valve Bi-Flow Filter Dryer Check Valve Outdoor Coil Outdoor Coil...
  • Page 25 SYSTEM OPERATION EXPANSION VALVE/CHECK VALVE ASSEMBLY EXPANSION VALVE/CHECK VALVE ASSEMBLY IN COOLING OPERATION IN HEATING OPERATION ® Most expansion valves used in current Amana Brand Heat Pump products use an internally checked expansion valve. This type of expansion valve does not require an external check valve as shown above. However, the principle of operation is the same.
  • Page 26 SYSTEM OPERATION COOLING CYCLE - CONDENSING UNIT Indoor Outdoor Coil Coil Thermostatic Expansion Valve In the cooling mode, the orifice is pushed into its seat, forcing refrigerant to flow through the metered hole in the center of the orifice.
  • Page 27 SYSTEM OPERATION AFE18-60A CONTROL BOARD DESCRIPTION The AFE18 control is designed for use in heat pump applica- tions where the indoor coil is located above/downstream of a gas or fossil fuel furnace. It will operate with single and two stage heat pumps and single and two stage furnaces. The AFE18 control will turn the heat pump unit off when the furnace is turned on.

  • Page 28: Troubleshooting Chart

    TROUBLESHOOTING CHART No Cooling Complaint POSSIBLE CAUSE DOTS IN ANALYSIS GUIDE INDICATE "POSSIBLE CAUSE" • Power Failure • • • Blown Fuse • Unbalanced Power, 3PH • Loose Connection • • • • • • Shorted or Broken Wires Open Fan Overload •...

  • Page 29: Servicing

    SERVICING Checking Voltage ... 30 Checking Wiring ... 30 Checking Thermostat, Wiring & Anticipator .. 30 S-3A Thermostat & Wiring ... 30 S-3B Cooling Anticipator ... 31 S-3C Heating Anticipator ... 31 S-3D Checking Encoded Thermostats ... 31 Checking Transformer & Control Circuit ... 32 Checking Cycle Protector ...

  • Page 30: Checking Voltage

    SERVICING S-1 CHECKING VOLTAGE 1. Remove outer case, control panel cover, etc., from unit being tested. With power ON: WARNING Line Voltage now present. 2. Using a voltmeter, measure the voltage across terminals L1 and L2 of the contactor for the condensing unit or at the field connections for the air handler or heaters.

  • Page 31: S-3B Cooling Anticipator

    SERVICING 4. Check the continuity of the thermostat and wiring. Repair or replace as necessary. Resistance Heaters 1. Set room thermostat to a higher setting than room temperature so both stages call for heat. 2. With voltmeter, check for 24 volts at each heater relay. Note: BBA/BBC heater relays are DC voltage.

  • Page 32: Checking Transformer & Control Circuit

    SERVICING S-4 CHECKING TRANSFORMER AND CONTROL CIRCUIT A step-down transformer (208/240 volt primary to 24 volt sec- ondary) is provided with each indoor unit. This allows ample capacity for use with resistance heaters. The outdoor sec- tions do not contain a transformer. WARNING Disconnect ALL power before servicing.

  • Page 33: Checking Contactor And/Or Relays

    SERVICING S-7 CHECKING CONTACTOR AND/OR RELAYS WARNING HIGH VOLTAGE! Disconnect ALL power before servicing or installing. Multiple power sources may be present. Failure to do so may cause property damage, personal injury or death. The compressor contactor and other relay holding coils are wired into the low or line voltage circuits.

  • Page 34: Copeland Comfort™ Alert Diagnostics

    SERVICING S-10 COPELAND COMFORT ALERT™ DIAGNOSTICS Applies to ASC13 & ASH13 Comfort Alert™ is self-contained with no required external sensors and is designed to install directly into the electrical box of any residential condensing unit that has a Copeland Scroll™ compressor inside. Once attached, Comfort Alert™...
  • Page 35 SERVICING Status LED Status LED Description Green “POWER” Module has power Thermostat demand signal Red “TRIP” Y1 is present, but the compressor is not running Yellow “ALERT” Long Run Time Compressor is Flash Code 1 running extremely long run cycles Yellow “ALERT”...

  • Page 36: Checking Loss Of Charge Protector

    SERVICING S-11 CHECKING LOSS OF CHARGE PROTECTOR (Heat Pump Models) The loss of charge protector senses the pressure in the liquid line and will open its contacts on a drop in pressure. The low pressure control will automatically reset itself with a rise in pressure.

  • Page 37: S-15B Capacitance Check

    SERVICING B. Shorted - indicator swings to zero and stops there - replace. C. Open - no reading - replace. (Start capacitor would read resistor resistance.) S-15B CAPACITANCE CHECK Using a hookup as shown below, take the amperage and voltage readings and use them in the formula: VOLTMETER AMMETER CAPACITOR...

  • Page 38: S-16C Checking Ecm Motor Windings

    SERVICING Lines 1 and 2 will be connected for 12OVAC Power Connector applications only AC Line Connection AC Line Connection OUT - ADJUST +/- COOL DELAY COMMON2 W/W1 COMMON1 16-PIN ECM HARNESS CONNECTOR If you do not read voltage and continuity as described, the problem is in the control or interface board, but not the motor.
  • Page 39 SERVICING...
  • Page 40 SERVICING...
  • Page 41 SERVICING DIPSWITCH FUNCTIONS The MBE air handler motor has an electronic control that contains an eight (8) position dip switch. The function of these dipswitches are shown in Table 1. Dipsw itch Num ber Indoor Therm ostat Cooling & Heat Pum p CFM CFM Trim Adjust Table 1 CFM DELIVERY...

  • Page 42: S-16E Checking Ge X13™ Motors

    SERVICING HUMIDITY CONTROL When using a Humidstat (normally closed), cut jumper PJ6 on the control board. The Humidstat will only affect cooling airflow by adjusting the Airflow to 85%. TWO STAGE HEATING When using staged electric heat, cut jumper PJ4 on the control board.

  • Page 43: S-17B Ground Test

    SERVICING 1. Remove the leads from the compressor terminals. See warnings S-17 before removing compressor terminal cover. 2. Using an ohmmeter, test continuity between terminals S- R, C-R, and C-S, on single phase units or terminals T2, T2 and T3, on 3 phase units. OHMMETER TESTING COMPRESSOR WINDINGS If either winding does not test continuous, replace the...

  • Page 44: Testing Crankcase Heater (Optional Item)

    SERVICING A. If the compressor starts and continues to run, the cause for failure is somewhere else in the system. B. If the compressor fails to start - replace. COPELAND COMPRESSOR 12345 YEAR MONTH SER IAL NUMBER S-18 TESTING CRANKCASE HEATER (OPTIONAL ITEM) The crankcase heater must be energized a minimum of four (4) hours before the condensing unit is operated.
  • Page 45 SERVICING S-40 AR*F & MBR ELECTRONIC BLOWERS TIME DELAY RELAY The MBR contains an Electronic Blower Time Delay Relay board, B1370735. This board provides on/off time delays for the blower motor in cooling and heat pump heating demands when “G” is energized. During a cooling or heat pump heating demand, 24Vac is supplied to terminal “G”...
  • Page 46 SERVICING 4.0 Heating Operation On heat pump units, when the room thermostat set to the heating mode, the reversing valve is not energized. As long as the thermostat is set for heating, the reversing valve will be in the de-energized position for heating except during a defrost cycle.

  • Page 47: Heat Pumps

    SERVICING AEP* & MBE WITH SINGLE STAGE CONDENSERS When used with a single stage condenser, dip switch #4 must be set to the on position on the VSTB inside the MBE. The “Y” output from the indoor thermostat must be connected to the yellow wire labeled “Y/Y2”...

  • Page 48: Electric Heater (Optional Item)

    SERVICING rate programmed in the motor. 4.0 Heating Operation On heat pump units, when the room thermostat is set to the heating mode, the reversing valve is not energized. As long as the thermostat is set for heating, the reversing valve will be in the de-energized position for heating except during a defrost cycle.

  • Page 49: S-61A Checking Heater Limit Control(S)

    SERVICING lation. Other components such as a Heating/Cooling Thermostat and Outdoor Thermostats are available to complete the installation. The system CFM can be determined by measuring the static pressure external to the unit. The installation manual supplied with the blower coil, or the blower performance table in the service manual, shows the CFM for the static mea- sured.

  • Page 50: S-61B Checking Heater Fuse Line

    SERVICING 1. Remove the wiring from the control terminals. 2. Using an ohmmeter, test for continuity across the nor- mally closed contacts. No reading indicates the control is open - replace if necessary. IF FOUND OPEN - REPLACE - DO NOT WIRE AROUND. S-61B CHECKING HEATER FUSE LINK (OPTIONAL ELECTRIC HEATERS) Each individual heater element is protected with a one time...

  • Page 51: Evacuation

    SERVICING WARNING To avoid possible explosion, the line from the nitrogen cylinder must include a pressure regulator and a pressure relief valve. The pressure relief valve must be set to open at no more than 150 psig. Pressure test the system using dry nitrogen and soapy water to locate leaks.

  • Page 52: Checking Compressor Efficiency

    SERVICING CAUTION Use refrigerant certified to AHRI standards. Used refrigerant may cause compressor damage and will void the warranty. Most portable machines cannot clean used refrigerant to meet AHRI standards. CAUTION Operating the compressor with the suction valve closed will void the warranty and cause serious compressor damage.

  • Page 53: S-105B Thermostatic Expansion Valve

    SERVICING NOTE: The compressor may run backwards (noisy opera- tion) for 1 or 2 seconds at shutdown. This is normal and does not harm the compressor. 1. Install gauges and verify that the suction pressure drops while the discharge pressure increases. 2.

  • Page 54: Overfeeding

    SERVICING COOLING THERMOSTATIC EXPANSION VALVES Some TXV valves contain an internal check valve thus eliminating the need for an external check valve and bypass loop. The three forces which govern the operation of the valve are: (1) the pressure created in the power assembly by the feeler bulb, (2) evaporator pressure, and (3) the equivalent pressure of the superheat spring in the valve.

  • Page 55: Checking Subcooling

    SERVICING Temp. Gauge Pressure Temp. °F. (PSIG) Freon-22 °F. 0.61 1.42 2.27 3.15 4.07 5.02 6.01 7.03 8.09 9.18 10.31 11.48 12.61 13.94 15.24 16.59 17.99 19.44 20.94 22.49 24.09 25.73 27.44 29.21 31.04 32.93 34.88 36.89 38.96 41.09 43.28 45.53 47.85 50.24...

  • Page 56: Checking Restricted Liquid Line

    SERVICING S-111 CAPILLARY TUBES/RESTRICTOR ORIFICES The capillary tubes/restrictor orifices used in conjunction with the indoor and outdoor coil, are a predetermined length and bore (I.D.). They are designed to control the rate of liquid refrigerant flow into an evaporator coil. The amount of refrigerant that flows through the capillary tube/ restrictor orifice is regulated by the pressure difference between the high and low sides of the system.

  • Page 57: Refrigerant Piping

    This long line set application guideline applies to all AHRI listed R22 air conditioner and heat pump split system matches of nominal capacity 18,000 to 60,000 Btuh. This guideline will cover installation requirements and additional accessories needed for split system installations where the line set exceeds 50 feet in actual length.
  • Page 58 SERVICING • The distance between the condenser and evaporator in a completely horizontal installation in which the indoor and outdoor unit do not differ more than 10 feet in vertical distance from each other can approach 150 feet, as long as the equivalent length does not exceed 150 feet.

  • Page 59: Static Pressure Drop Across Coils

    SERVICING 3. An oil trap is required at the evaporator only if the condenser is above the evaporator. Preformed oil traps are available at most HVAC supply houses, or oil traps may be created by brazing tubing elbows together (see diagram below). Remember to add the equivalent length from oil traps to the equivalent length calculation of the suction line.

  • Page 60: Air Handler External Static

    SERVICING S-203 AIR HANDLER EXTERNAL STATIC To determine proper air movement, proceed as follows: 1. Using a draft gauge (inclined manometer), measure the static pressure of the return duct at the inlet of the unit, (Negative Pressure). 2. Measure the static pressure of the supply duct, (Positive Pressure).

  • Page 61: Accessories Wiring Diagrams

    ACCESSORIES WIRING DIAGRAMS POWER SUPPLY INPUT FURNACE DEMAND OUTPUT BLOWER FAN DEMAND OUTPUT POWER SUPPLY INPUT (COMMON) SECOND STAGE FURNACE DEMAND OUTPUT COMPRESSOR OUTPUT SECOND STAGE COMPRESSOR OUTPUT REVERSING VALVE OUTPUT POWER SUPPLY OUT TO THERMOSTAT CALL FOR REVERSING VALVE CALL FOR COMPRESSOR CALL FOR...
  • Page 62 ACCESSORIES WIRING DIAGRAMS 10kw and Below, One Stage Electric Heat THERMOSTAT EMERGENCY HEAT RELAY OT/EHR18-60 15kw and Above, Two Stage Electric Heat THERMOSTAT EMERGENCY HEAT RELAY OT/EHR18-60 Note: When using a Thermostat with only one stage for electric heat (W2), tie white and brown wires from air handler together.
  • Page 63 ACCESSORIES WIRING DIAGRAMS 15kw and Above with Two OT/EHR18-60's, Two Stage Electric Heat and Two Stage Thermostat OT/EHR18-60 #1 THERMOSTAT EMERGENCY HEAT RELAY OT/EHR18-60 #2 THERMOSTAT EMERGENCY HEAT RELAY Typical Wiring Schematics for OT/EHR18-60 (Outdoor Thermostat & Emergency Heat Relay). This wiring diagram is for reference only.
  • Page 64 ACCESSORIES WIRING DIAGRAMS HTR1 ONE (1) ELEMENT ROWS NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP DOES NOT EXCEED MINIMUM BLOWER SPEED (MBS) SPECIFIED FOR THE AIRHANDLER/HEAT ER KIT COMBINATION ON THIS UNIT'S S&R PLATE. AFTER INSTALLING OPTIONAL HEAT KIT, MARK AN "X" IN THE MARK ACCORDING TO NUMBER OF HEATER ELEMENT ROWS INSTALLED.
  • Page 65 ACCESSORIES WIRING DIAGRAMS HTR2 HTR3 HTR4 EQUIPMENT GROUND USE COPPER OR ALUMINUM WIRE Typical Wiring Schematic MBR Blower with Electric Heat. This wiring diagram is for reference only. Not all wiring is as shown above. Refer to the appropriate wiring diagram for the unit being serviced. HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT.
  • Page 66 ACCESSORIES WIRING DIAGRAMS HTR1 ONE (1) ELEMENT ROWS AFTER INSTALLING OPTIONAL HEAT KIT, MARK AN "X" IN THE MARK ACCORDING TO NUMBER OF HEATER ELEMENT ROWS INSTALLED * SEE NOTE 7 C ONDEN SER TH ERM OSTAT LOW VOLTAGE Y/Y2 YCO N FIEL D CON NEC TION DS 1...
  • Page 67 ACCESSORIES WIRING DIAGRAMS HTR2 HTR1 HKR Heat Kit Typical Wiring Schematic MBE Blower with Electric Heat. Refer to the appropriate wiring diagram for the unit being serviced. HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
  • Page 68 ACCESSORIES WIRING DIAGRAMS HTR1 ONE (1) ELEMENT ROWS NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP DOES NOT EXCEED MINIMUM BLOWER SPEED (MBS) SPECIFIED FOR THE AIRHANDLER/HEAT ER KIT COMBINATION ON THIS UNIT'S S&R PLATE. AFTER INSTALLING OPTIONAL HEAT KIT, MARK AN "X" IN THE MARK ACCORDING TO NUMBER OF HEATER ELEMENT ROWS INSTALLED.

  • Page 69: Accessories Wiring Diagrams

    ACCESSORIES WIRING DIAGRAMS HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Typical Wiring Schematic ASPF****16B* with Electric Heat. This wiring diagram is for reference only. Not all wiring is as shown above. Refer to the appropriate wiring diagram for the unit being serviced.
