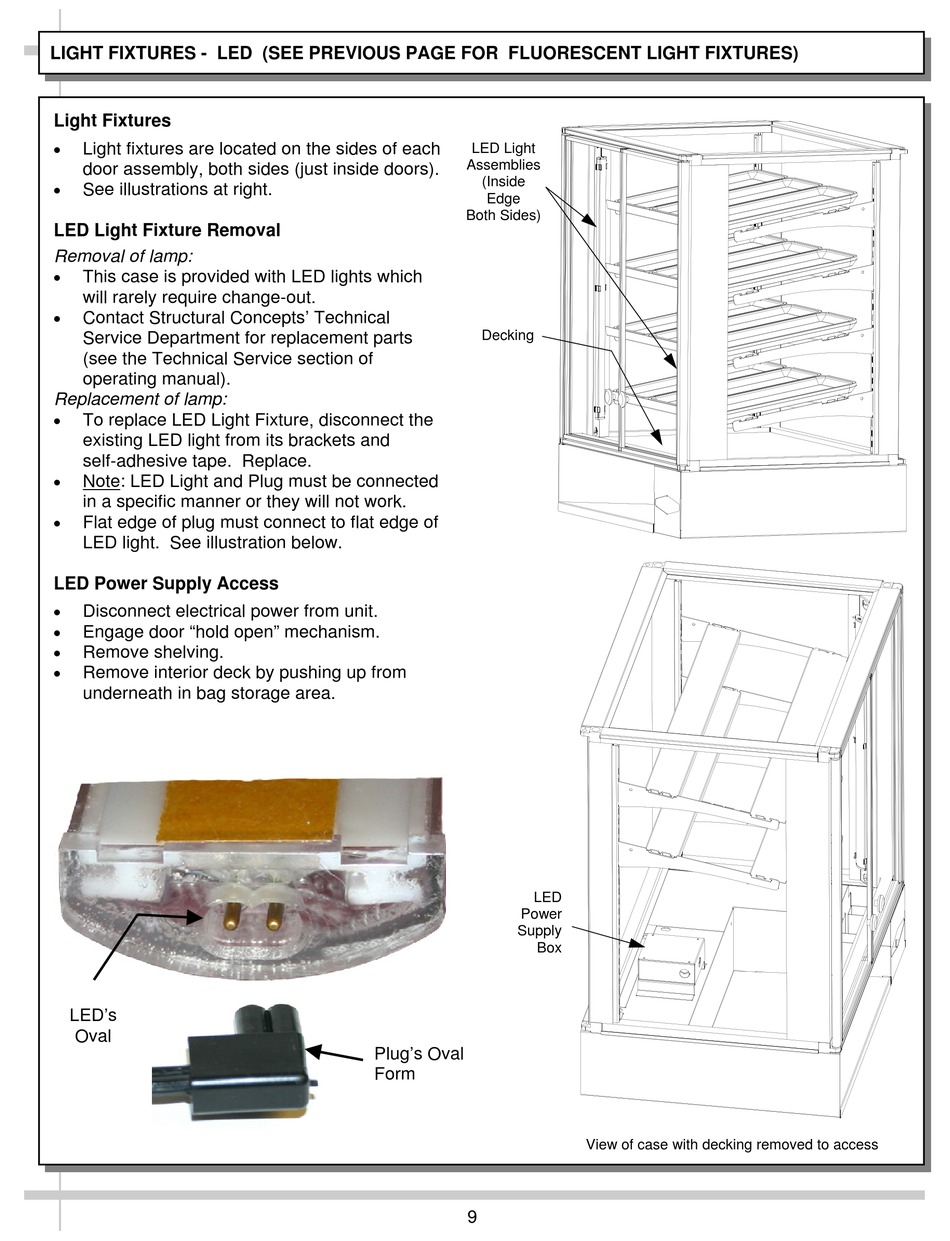

LIGHT FIXTURES - LED (SEE PREVIOUS PAGE FOR FLUORESCENT LIGHT FIXTURES)
Light Fixtures

Light fixtures are located on the sides of each
door assembly, both sides (just inside doors).

See illustrations at right.
LED Light Fixture Removal
Removal of lamp:

This case is provided with LED lights which
will rarely require change-out.

Contact Structural Concepts' Technical
Service Department for replacement parts
(see the Technical Service section of
operating manual).
Replacement of lamp:

To replace LED Light Fixture, disconnect the
existing LED light from its brackets and
self-adhesive tape. Replace.

Note: LED Light and Plug must be connected
in a specific manner or they will not work.

Flat edge of plug must connect to flat edge of
LED light. See illustration below.
LED Power Supply Access

Disconnect electrical power from unit.

Engage door "hold open" mechanism.

Remove shelving.

Remove interior deck by pushing up from
underneath in bag storage area.
LED's
Oval
LED Light
Assemblies
(Inside
Edge
Both Sides)
Decking
LED
Power
Supply
Box
Plug's Oval
Form
9
View of case with decking removed to access
