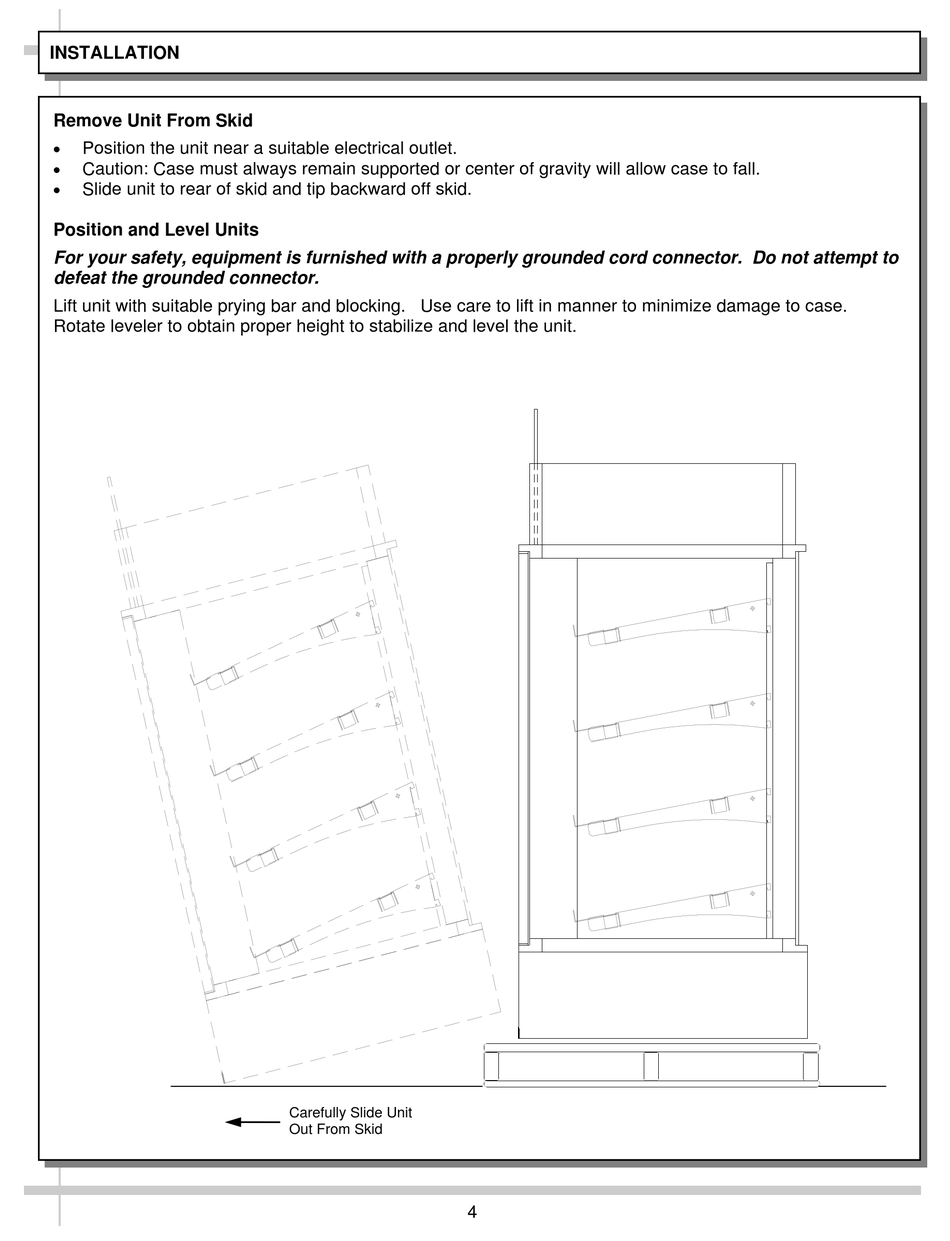

INSTALLATION

Remove Unit From Skid

Position the unit near a suitable electrical outlet.

Caution: Case must always remain supported or center of gravity will allow case to fall.

Slide unit to rear of skid and tip backward off skid.
Position and Level Units
For your safety, equipment is furnished with a properly grounded cord connector. Do not attempt to
defeat the grounded connector.
Lift unit with suitable prying bar and blocking. Use care to lift in manner to minimize damage to case.
Rotate leveler to obtain proper height to stabilize and level the unit.
Carefully Slide Unit
Out From Skid
4
