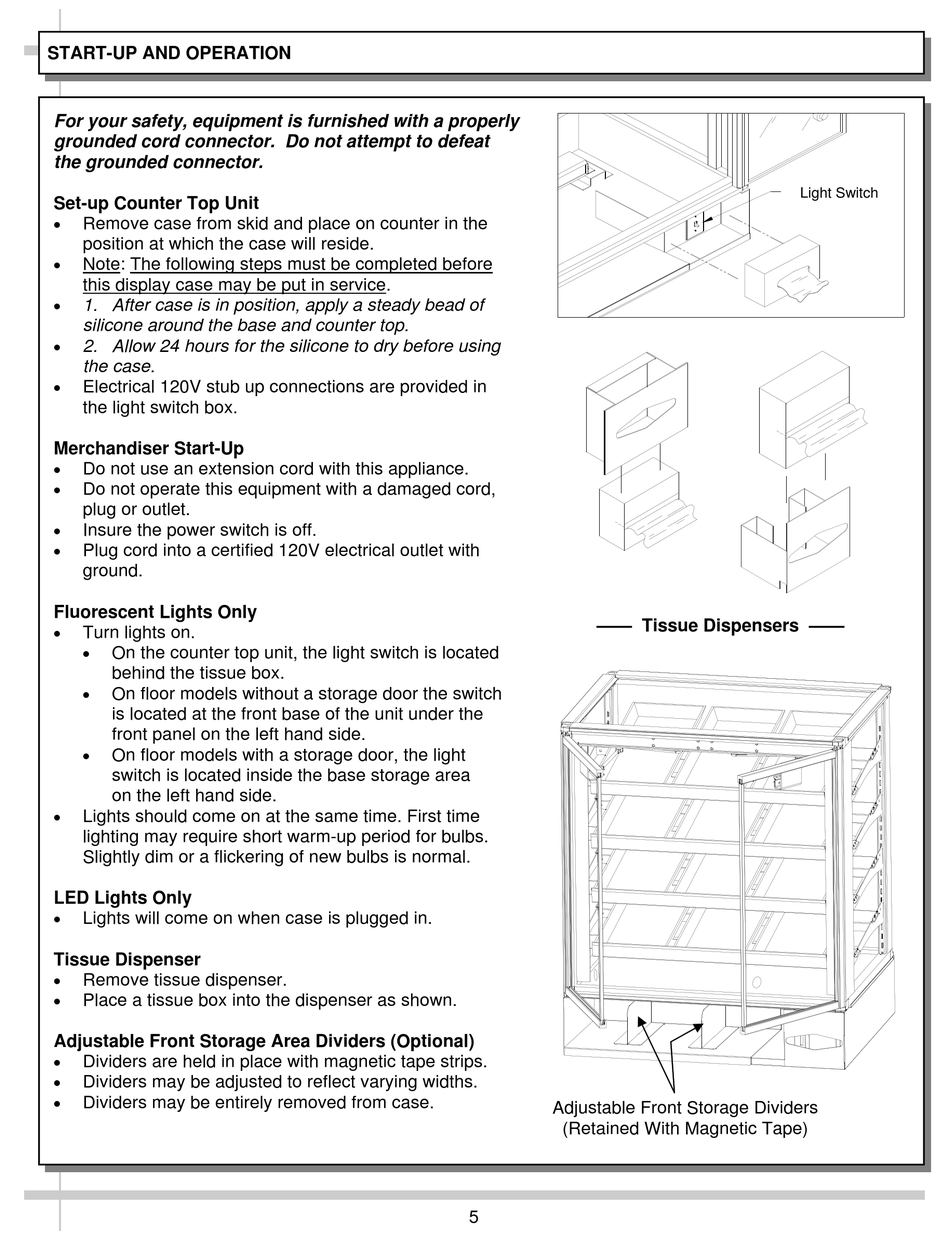

START-UP AND OPERATION

For your safety, equipment is furnished with a properly
grounded cord connector. Do not attempt to defeat
the grounded connector.
Set-up Counter Top Unit

Remove case from skid and place on counter in the
position at which the case will reside.

Note: The following steps must be completed before
this display case may be put in service.

1. After case is in position, apply a steady bead of
silicone around the base and counter top.

2. Allow 24 hours for the silicone to dry before using
the case.

Electrical 120V stub up connections are provided in
the light switch box.
Merchandiser Start-Up

Do not use an extension cord with this appliance.

Do not operate this equipment with a damaged cord,
plug or outlet.

Insure the power switch is off.

Plug cord into a certified 120V electrical outlet with
ground.
Fluorescent Lights Only

Turn lights on.

On the counter top unit, the light switch is located
behind the tissue box.

On floor models without a storage door the switch
is located at the front base of the unit under the
front panel on the left hand side.

On floor models with a storage door, the light
switch is located inside the base storage area
on the left hand side.

Lights should come on at the same time. First time
lighting may require short warm-up period for bulbs.
Slightly dim or a flickering of new bulbs is normal.
LED Lights Only

Lights will come on when case is plugged in.
Tissue Dispenser

Remove tissue dispenser.

Place a tissue box into the dispenser as shown.
Adjustable Front Storage Area Dividers (Optional)

Dividers are held in place with magnetic tape strips.

Dividers may be adjusted to reflect varying widths.

Dividers may be entirely removed from case.
—— Tissue Dispensers ——
Adjustable Front Storage Dividers
(Retained With Magnetic Tape)
5
Light Switch
