MAINTENANCE FUNDAMENTALS: SHELF ASSEMBLY REMOVAL / DECKING REMOVAL

Shelf Assembly Removal

Shelves can be removed for repositioning,
removal (for individual merchandising
requirements) and cleaning.

Slide the front shelf support back rotate up and
lift straight up to separate from brackets.

Slide the rear shelf support back rotate up and
lift straight up to separate from brackets.

Remove brackets. Note: It may be necessary to
remove the nylon shipping bracket retainers.
Pliers will be required to accomplish this task.
Decking Removal

Remove lower shelf assembly.

Remove interior deck by pushing up from
underneath in the bag storage area.

See illustration at lower right.

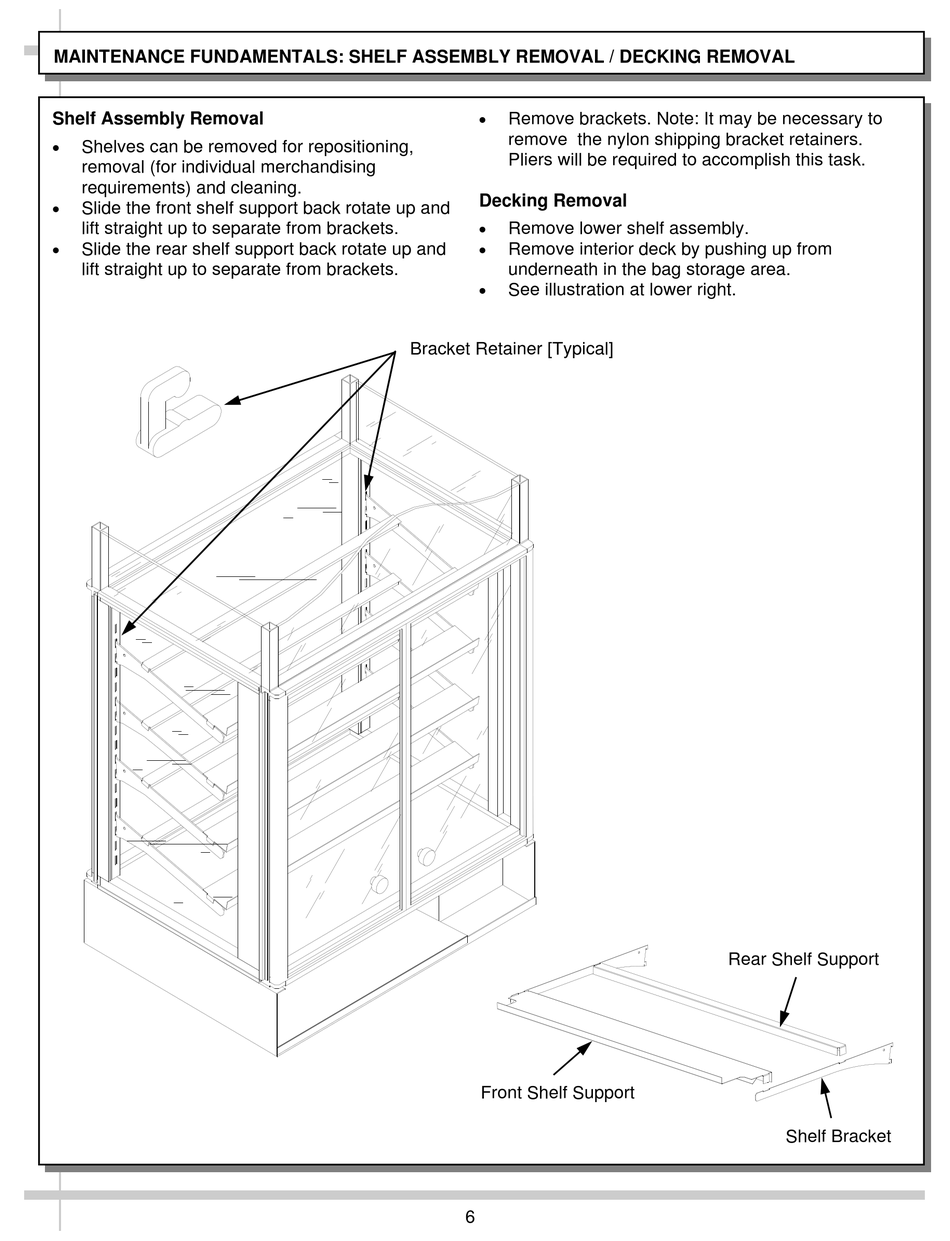

Bracket Retainer [Typical]
Front Shelf Support
6
Rear Shelf Support
Shelf Bracket
