PRODUCT OVERVIEW

DVR CONTROLS

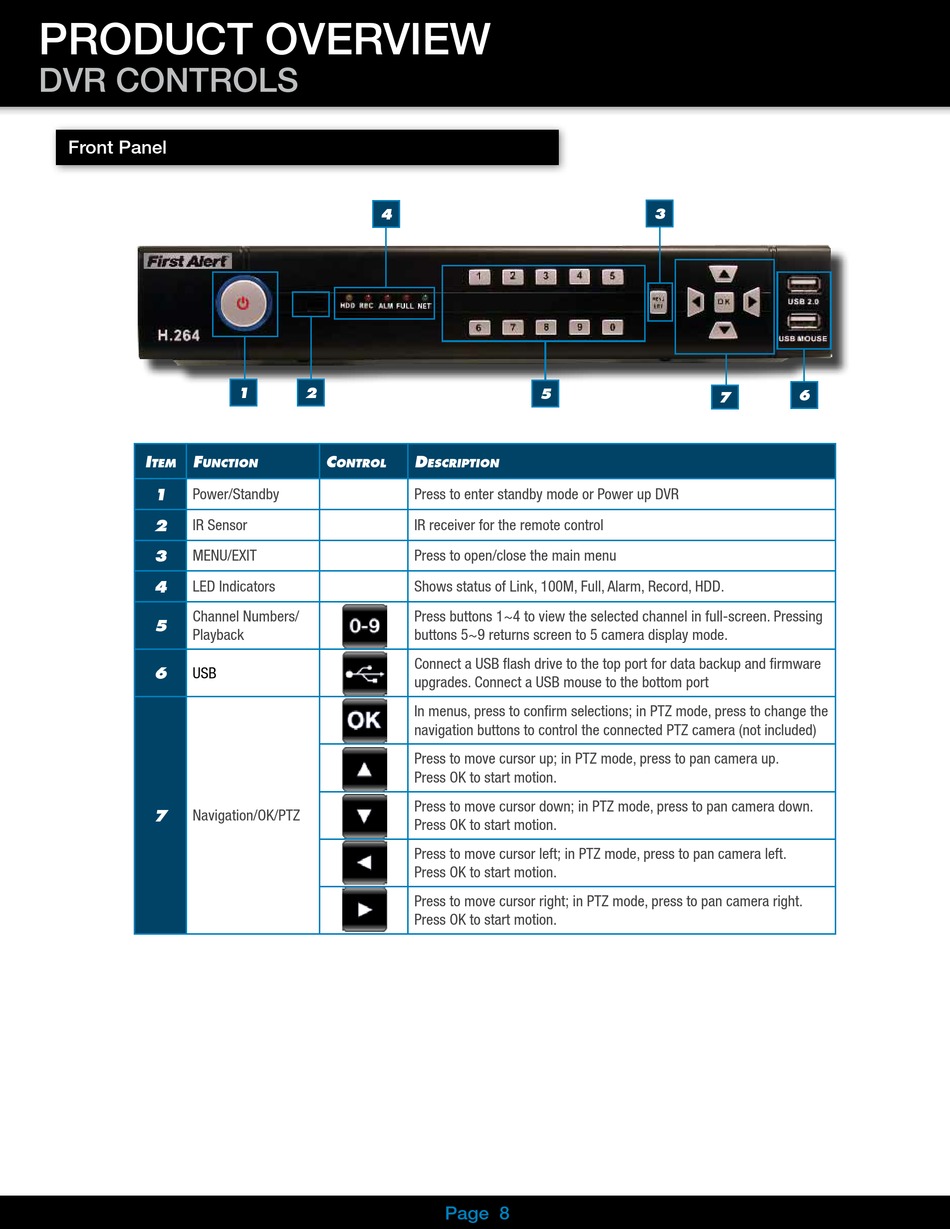

Front Panel

i F
tem unction
1 Power/Standby
2
IR Sensor
3 MENU/EXIT
4 LED Indicators
Channel Numbers/
5
Playback
6
USB
7 Navigation/OK/PTZ
4
1 2
c D
ontrol
Press to enter standby mode or Power up DVR
IR receiver for the remote control
Press to open/close the main menu
Shows status of Link, 100M, Full, Alarm, Record, HDD.
Press buttons 1~4 to view the selected channel in full-screen. Pressing
buttons 5~9 returns screen to 5 camera display mode.
Connect a USB flash drive to the top port for data backup and firmware
upgrades. Connect a USB mouse to the bottom port
In menus, press to confirm selections; in PTZ mode, press to change the
navigation buttons to control the connected PTZ camera (not included)
Press to move cursor up; in PTZ mode, press to pan camera up.
Press OK to start motion.
Press to move cursor down; in PTZ mode, press to pan camera down.
Press OK to start motion.
Press to move cursor left; in PTZ mode, press to pan camera left.
Press OK to start motion.
Press to move cursor right; in PTZ mode, press to pan camera right.
Press OK to start motion.
