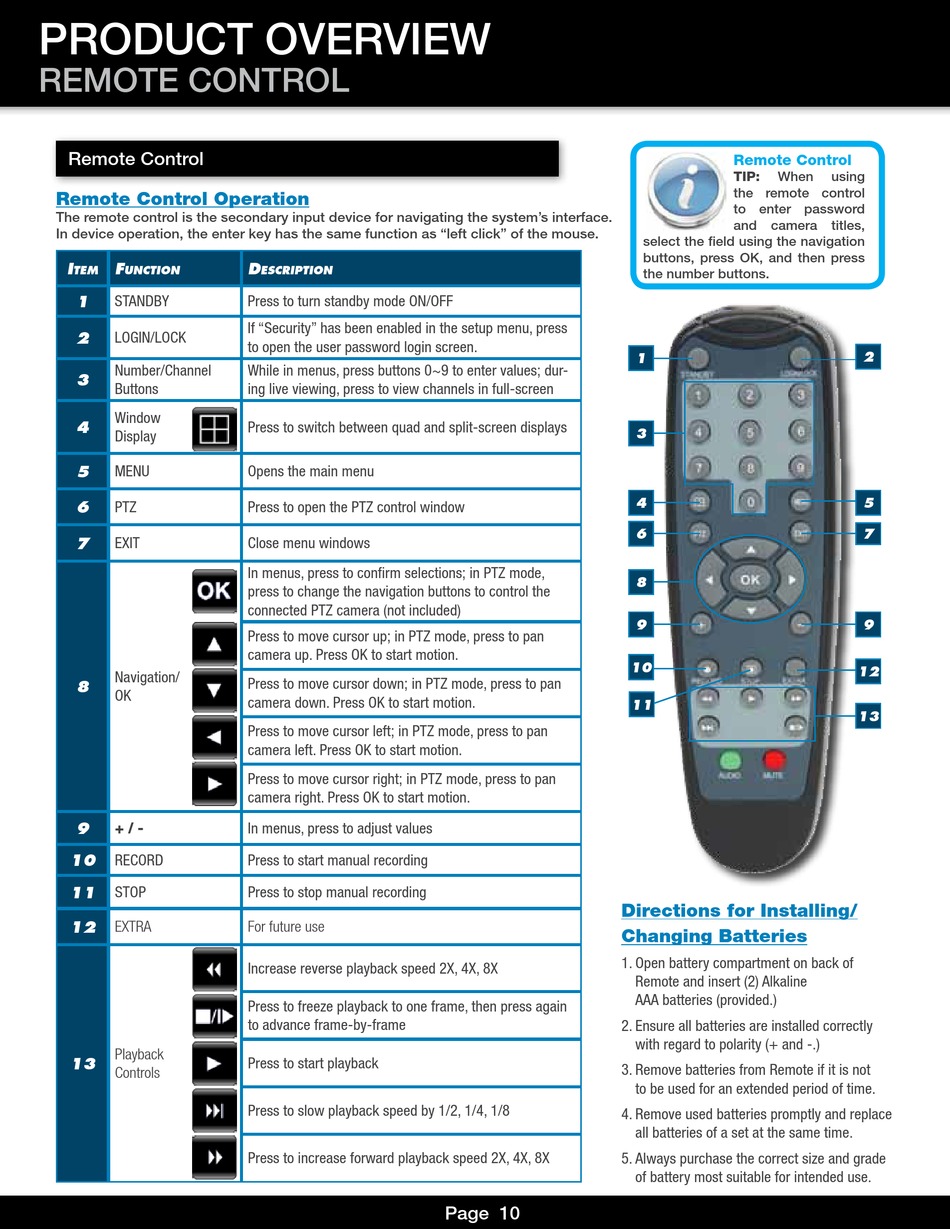

PRODUCT OVERVIEW

REMOTE CONTROL

Remote Control
Remote Control Operation
The remote control is the secondary input device for navigating the system's interface.
In device operation, the enter key has the same function as "left click" of the mouse.
i F
tem unction
1
STANDBY
2 LOGIN/LOCK
Number/Channel
3
Buttons
Window
4
Display
5
MENU
6
PTZ
7
EXIT
Navigation/
8
OK
9 + / -
10
RECORD
11 STOP
12
EXTRA
Playback
13
Controls
D
eScription
Press to turn standby mode ON/OFF
If "Security" has been enabled in the setup menu, press
to open the user password login screen.
While in menus, press buttons 0~9 to enter values; dur-
ing live viewing, press to view channels in full-screen
Press to switch between quad and split-screen displays
Opens the main menu
Press to open the PTZ control window
Close menu windows
In menus, press to confirm selections; in PTZ mode,
press to change the navigation buttons to control the
connected PTZ camera (not included)
Press to move cursor up; in PTZ mode, press to pan
camera up. Press OK to start motion.
Press to move cursor down; in PTZ mode, press to pan
camera down. Press OK to start motion.
Press to move cursor left; in PTZ mode, press to pan
camera left. Press OK to start motion.
Press to move cursor right; in PTZ mode, press to pan
camera right. Press OK to start motion.
In menus, press to adjust values
Press to start manual recording
Press to stop manual recording
For future use
Increase reverse playback speed 2X, 4X, 8X
Press to freeze playback to one frame, then press again
to advance frame-by-frame
Press to start playback
Press to slow playback speed by 1/2, 1/4, 1/8
Press to increase forward playback speed 2X, 4X, 8X
Directions for Installing/
Changing Batteries
1. Open battery compartment on back of
2. Ensure all batteries are installed correctly
3. Remove batteries from Remote if it is not
4. Remove used batteries promptly and replace
5. Always purchase the correct size and grade
Page 10
Remote Control
TIP: When
the remote control
to enter password
and camera titles,
select the field using the navigation
buttons, press OK, and then press
the number buttons.
1
3
4
6
8
9
10
11
Remote and insert (2) Alkaline
AAA batteries (provided.)
with regard to polarity (+ and -.)
to be used for an extended period of time.
all batteries of a set at the same time.
of battery most suitable for intended use.
using
2
5
7
9
12
13
