AOpen AX45-8X Easy Installation Manual

AOpen AX45-8X Easy Installation Manual

Hide thumbs Also See for AX45-8X:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Online Manual

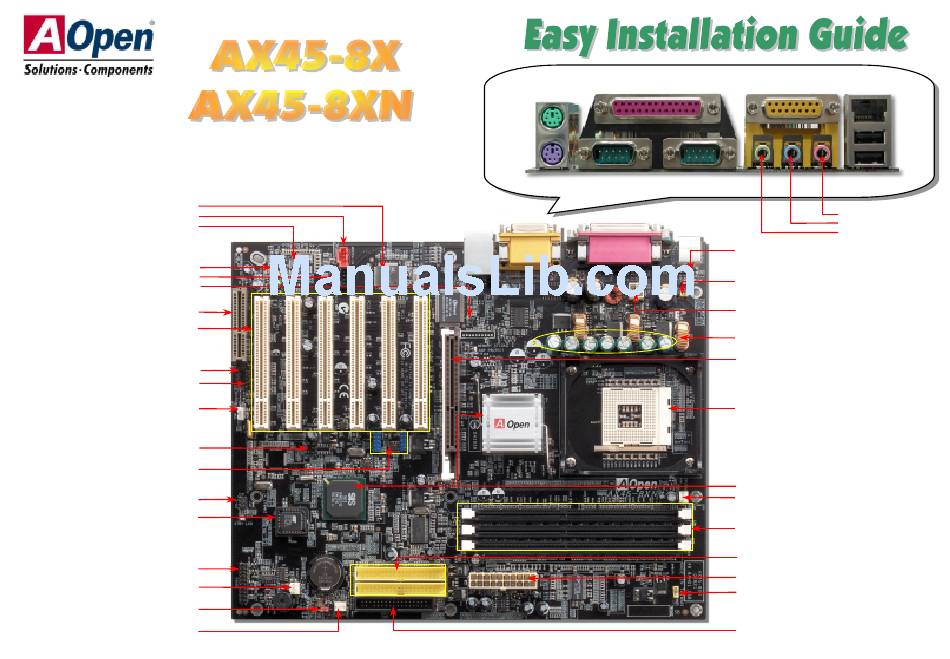

Realtek RTL8100BL LAN Chip
(For AX45-8XN)
MODOM-CN Connector
ALC650 AC'97 CODEC
Front Audio Connector
CD-IN Connector
Case Open Connector
CNR Expansion Slot
32-bit PCI Expansion Slot x6
WOM Connector
S/PDIF Connector
WOL Connector
Dr. LED Connector
nd
rd
2
& 3
USB2.0 Connector
IrDA Connector
2Mb Flash ROM BIOS
Front Panel Connector
FAN2 Connector
JP14 CMOS Clear Jumper
FAN3 Connector
(AOpen reserves the right to revise all the specifications and information contained in this documentation which is
subject to change without notice.)
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Connector
COM 2 Port
PS/2 Keyboard
COM 1 Port
Connector
RJ45 10/100
LAN Jack
MIDI/Game Port
(For AX45-8XN)
USB Port
MIC-In
Line-In
Speaker Out
Resetable Fuse
JP28
PS2
Keyboard
/
Mouse
Wakeup Jumper
4-pin 12V. ATX Power Connector
2200μF Low ESR Capacitors
AGP 8x Expansion Slot
478-pin CPU socket (Willamette / Northwood)
with Voltage and Frequency Auto-detection
®
®
that supports Intel
Pentium
4 1.4~2.4GHz+
CPU
SIS 648/963L Chipsets
CPU FAN Connector
184-pin DIMMx3 supports PC2100/2700 DDR
SDRAM maximum up to 3GB/2GB
ATA100/133 IDE Connector x2
ATX Power Connector
JP29 Memory Voltage Jumper
FDD Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX45-8X and is the answer not in the manual?

Questions and answers

Related Manuals for AOpen AX45-8X

Summary of Contents for AOpen AX45-8X

  • Page 1 Front Panel Connector ATX Power Connector FAN2 Connector JP29 Memory Voltage Jumper JP14 CMOS Clear Jumper FDD Connector FAN3 Connector (AOpen reserves the right to revise all the specifications and information contained in this documentation which is subject to change without notice.)

  • Page 2: Jp14 Clear Cmos

    1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. 3. Locate JP14 and short pins 2-3 for a few seconds. Everything you need to boot this motherboard is included in this 4.

  • Page 3: Installing Processor

    3. Installing Processor 5. Setting CPU Voltage & Frequency Setting CPU Core Voltage This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package This motherboard supports CPU VID function. The CPU core voltage will be automatically developed by Intel. Other forms of CPU package are impossible to be fitted in. detected.

  • Page 4: S/Pdif Connector

    6. Support Six USB Connectors 8. S/PDIF Connector This motherboard provides six connectors to link USB devices, such as mouse, S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You can impressive quality through optical fiber and allows you to enjoy digital audio instead of use proper cable to connect other USB connectors to the back panel or front panel of analog.

  • Page 5: Case Open Connector

    10. JP29 Memory Voltage Jumper 12. Case Open Connector The “CASE OPEN” header provides chassis intrusion-monitoring function. To make this This motherboard supports all DDR200/266/333 DDR SDRAM on market, therefore you function works, you have to enable it in the system BIOS, connect this header to a sensor don’t need to adjust this JP29 memory voltage jumper from its default setting.

  • Page 6: Bios Upgrade

    After selecting the model name, you can install its AGP, IDE, Audio, LAN upgrading. and USB2.0 drivers from this CD. Download the new version of BIOS package file from AOpen official web site. (ex: http://www.aopen.com) Unzip the download BIOS package (ex: WAX458XN102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.

  • Page 7: Part Number And Serial Number

    It is very possible that your keyboard press Del to see if the is defective. system reboots. AX45-8XN R1.02 July 01. 2002 AOpen Inc. Award Plug and Play BIOS Extension v1.0A During system rebooting, press Del to enter BIOS Setup. Choose “Load Setup Default".
  • Page 8 Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack. http://download.aopen.com.tw/downloads Dear Customer, Thanks for choosing AOpen products.

This manual is also suitable for:

Ax45-8xn
